20ton Top Quality 380V 20ton Construction Hoist Slow Line Speed Electric Winch/ Electric Windlass with Large Capacity

Product Description

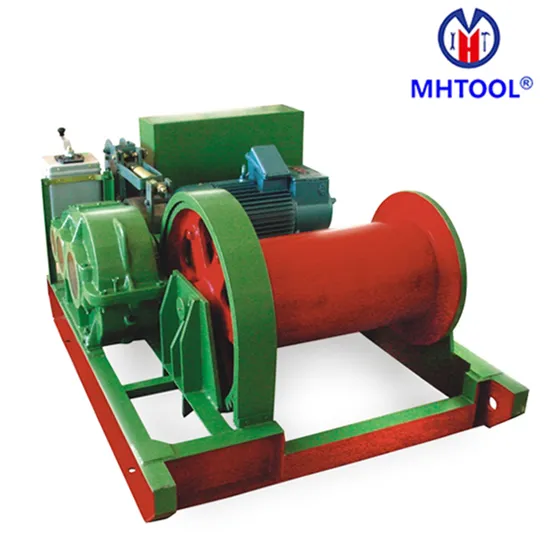

Slow Building Electric Winch
Feature:
This series electric winch can be mainly used in lifting, disassemble, moving and installing points in building site, digging and workshops. With strong pull. Wire rope arranged in order, safe and reliable.
Technique Parameter of Slow Building Electric Windlass

Model	Voltage(V)	Rated Capacity(kg)	Rated Speed(m/min)	Cable Diameter(Φmm)	Wire Rope Capacity(m)	Reduction Box Type	Transmission Ratio	Drum Diameter(Φ)	Drum Length(mm)	Type	Power(kw)	Rotating Speed(r/min)	Arrester	Size(mm)	N.W.
JM2	3 Phase 220/380/400/415/-50Hz or 60Hz	2000	12	15.5	150	JZQ350	23.34	280	480	YZR 160M-6	7.5	970	TJ2-200	1150×1000×600	630
JM3		3000	10	17	180	JZQ400	31.5	310	510		7.5	970	TJ2-200	1380×1060×650	680
JM5		5000	10	21.5	180	JZQ400	23.34	400	730	YZR180L-8	11	685	TJ2-300	1850×1350×900	1200
JM8		8000	8	26	300	JZQ500	31.5	500	910	YZR 225M-8	22	715	YWZ-300	2050×2750×1050	2500
JM10		10000	8	30	300	JZQ650	40.17	550	1020	YZR 250M1-8	30	720	YWZ-300	2200×1800×1100	3200
JM12		12000	18	32	500	JZQ650	40.17	650	1020	YZR250-M2-8	37	725	YWZ-300	2500×1900×1200	5500
JM16		16000	9	36.5	500	JZQ750	31.5	750	1315	YZR 280S-8	45	717	YWZ-400	3900×3000×2450	7500
JM20		20000	9	39	500	JZQ750	31.5	750	1833	YZR250M2-6	45	965	YWZ-400	4000×3000×1700	8500
JM25		25000	8.5	42	600	JZQ750	31.5	850	1932	YZR280S-6	55	969	YWZ-400	4120×3000×2000	9500
JM30		30000	8.5	48	650	JZQ850	23.34	23.34	1986	YZR280M-6	75	969	YWZ-400	4500×3000×2500	11000

Factory Views:
Our After-sale Services-- within 24 Hours:
(1)....Before--Sale Service :
01..Quality Control: Strictly Production Request base on signed contract ;
02..Delivery Time: Guarantee within contracted delivery time ;
03..Photos: Send photos to our customer after finish production and packing ;
04..Packing Details:Give complete packing size table to our customer;
05..Brand: Respect our customers' advice to use our customers' own brand & logo ;
06..Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT .
(2)....After--Sale Service :
01..Reply : Fast reply all your questions on line or by email or by telephone ;
02..Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you) ;
03..Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly, to guarantee Safe when operate our machine.
