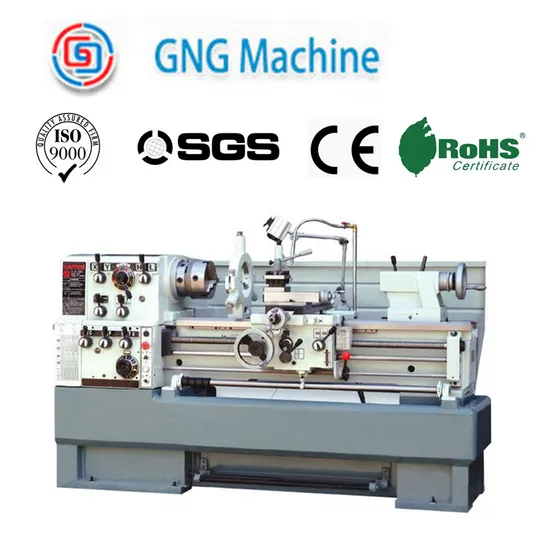

High Precision Heavy Duty Lathe Processing Machine
| US$6,350.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6241
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
Precision
Certification
CE
Condition
New
Swing Over Bed
410mm(16" )
Swing Over Cross Slide
224mm(8-13/16" )
Swing in Gap
640mm(25-1/8" )
Length of Gap
155mm(6-1/8" )
Max Length of Workpiece
1000mm(40" )/1500(60" )
Transport Package
Package
Specification
CE
Trademark
G&G
Origin
China Jiangsu
HS Code
845899000
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 1 Set/SetsSupply Ability: 200 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 410mm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: C6241
Voltage: 230V
Power(W): 4000W
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Precision ground and supersonic frequency hardened bed ways is designed in double wall structure,giving super rigidity.
| C6241/6246 PRECISION LATHE MACHINE | |||||
| Technical spec. | C6241 | C6246 | |||
| FOBQingDao Price(USD) | |||||
| Swing over bed | 410mm(16" ) | 460mm(18" ) | |||
| Swing over cross slide | 224mm(8-13/16" ) | 274mm(10-3/4" ) | |||
| Swing in gap | 640mm(25-1/8" ) | 690mm(27-1/8" ) | |||
| Length of gap | 155mm(6-1/8" ) | ||||
| Max length of workpiece | 1000mm(40" )/1500(60" ) | ||||
| Bed width | 300mm(11-13/16" ) | ||||
| Spindle nose | D1-6 | ||||
| Spindle bore | 58mm(2-1/4" ) | ||||
| Taper of spindle bore | NO. 6Morse | ||||
| Range of sppindle speed | 12changes 25-2000r/min | ||||
| Max travel of compound rest | 120mm(4-3/4" ) | ||||
| Max travel of cross slide | 290mm(11-3/8" ) | ||||
| Leadscrew pitch | Metric 6mm | ||||
| Max section of tool | 25mmx25mm(1x1" ) | ||||
| Longitudinal feeds range | 42kninds 0.031-1.7mm/rev (0.0011" -0.0633" /rev) | ||||
| Cross feeds range | 42kinds 0.014-0.784mm/rev (0.00033" -0.01837" /rev) | ||||
| Metric threads range | 41kinds 0.1-14mm | ||||
| Inch threads range | 60kinds 2-112T. P. I | ||||
| Diametrical pitches range | 50kinds 4-112D. P | ||||
| Module pitched range | 34kinds 0.1-7M. P | ||||
| Dia. of tailstock sleeve | 60mm(2-5/16" ) | ||||
| Travel of tailstock sleeve | 120mm(4-3/4" ) | ||||
| Morse taper of tailstock sleeve | NO. 4 Morse | ||||
| Power of main motor | 4kw(5.4HP) optional 5.5kw(7.5HP)3PH | ||||
| Power of coolant pump | 40W | ||||
| Standard Accessories | 1.3 jaw chuck 8. change gears set 2. chasing dial indicator 9. reduction sleeve 3. dead centers 10. full length splash guard 4. coolant system 11. brake system 5.4 jaw chuck 12. face plate 6. steady rest 13. follow rest 7. tool box & tools | ||||
| Optional Accessories | 1. taper turing attachment 6. live center 2. work light 7. leadscrew guard 3. digital readout 8. quick change tool post 4. chuck guard 9. digital readout (2Axis) 5. drill chuck+drill arbor | ||||
