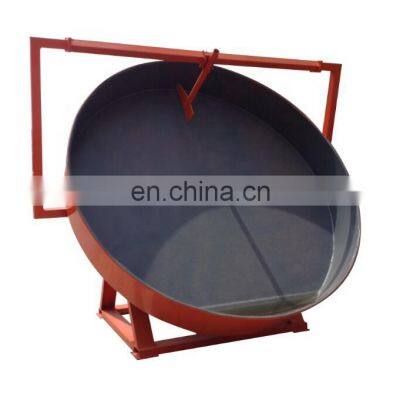

Disc granulator ball making machine

Product Description

Product Description
Disc granulator ball making machine
Product Description
Trays and trays used granulation overall arc angle structure, into tablets rate of more than 93%.
Granulating disc material I have three for continuous production, greatly reduced labor intensity,
labor efficiency increased. Motor reducer with the use of flexible belt transmission, a smooth start-up and slow down impact, improve equipment service life. Granulation trays and trays at the
end of steel plate used to strengthen a number of radiation, sturdiness and durability, never deformation.
Thickening, increased solid base design, without anchor bolts fixed, smooth operation.
Palatalize main gear using high-frequency quenching, life-fold increase of 1. Granulation surface glass plate lined with high-strength steel, corrosion durability. Granulation of the surface have a uniform rate into a high-grain, smooth operation, equipment, durable, long life and other advantages of the
vast number of users to choose the ideal device.

MODEL	Inner dia (mm)	Side height (mm)	Volume (m3)	Rotation speed (r/min)	Motor Power(KW)	Productivity (T/H)	Reducer model
HX10	1000	300	0.23	16	4.5	0.5	BW33-23
HX12	1200	300	0.33	19	7.5	0.6-0.8	BW33-23
HX15	1500	300	0.53	16	7.5	0.8-1.0	BW33-23
HX18	1800	300	0.76	16	7.5	1.0-1.2	BW33-23
HX20	2000	240-350	0.94	18	7.5	1.5-2.0	BW33-23
HX25	2500	360	1.48	16-18	7.5	2.0-2.5	BW33-23
HX28	2800	450	3.7	13.6	11	2.5-3.0	BW33-23
HX30	3000	400-550	4.2	13.6	11	3.0-5.0	BW33-23
HX32	3200	400-550	4.8	13.6	11	2-3.5	BW33-23
HX35	3500	450-600	5.4	12	15	2-8	BW33-23
