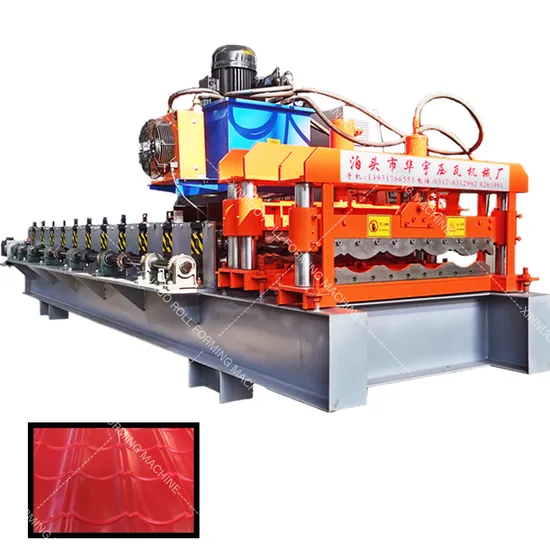

High-Quality 828 Glazed Roof Tile Roll Forming Machine

Product Description

Automatic 828 Colour Glazed Tile Metal Steel Roof Panel Roll Forming Machine
Main parameter
1. De-coiler: manual operation, passively de-coiling
2. Loading of de-coiler:4T
3. Frame of machine: welded with 350H beam steel
4. Guide feeding way of forming: side direction roller type
5. Forming machine type: wallboard and chain drive
6. Diameter of shaft: ¢80mm
7. Chain: 16A single row
8. Motor power of forming machine: 4 KW
9. Line speed of forming machine: 15m/min
10. Steps of forming machine: 18
11. Roller material: superior 45# steel forging
12. Thickness of Chrome plated on roller: 0.05mm
13. Hydraulic station motor: 4 KW
14. Hydraulic station oil pump: gear pump
15. Cutting way: cut off after hydraulic shaped
16. Cutting blade material: Cr12
17. Cutting blade heat treatment: HRC58º-60
18. Rolling thickness: 0.3-0.8 mm
19. Feeding width: 1220mm
20. Precision of cut-to-length: ±2mm
21. Frequency changer : Panasonic
22. Computer adopts PLC : Panasonic
Dimension of machine:6000*1300*1500mm

Our main products are: Steel-drum production line, Steel drum, BH-240/BH-120 Arch sheet roll forming machine, Ultimate Building Machine, Screw-jointed Equipment, Span Arch Sheet Project, UBM Building, Screw-jointed Project, KR 18 Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, 840 Corrugated Sheet Roll Forming Machine, Corrugated Roof Sheet Forming Machine, Concealed Roof Sheet Forming Machine, Steel Decking Roll Forming Machine, C/Z/U/M Shaped Steel Purlin Forming Machine, Highway Guardrail Roll Forming Machine, Sandwich Panel Roll Forming Machine, Lifting Machine, Unlimited Length Ridge Tile Forming Machine, Sheering Machine, Window and Door Taping Machine, Flat Sheet Bending Machine, Pipe Bender Machine, Bending Machine, Slitting Machine, Slitting Line, SM-40 Spiral Steel Silo Forming Machine, PU Spray and Perfusion Equipment, Colored Steel Sheet Coils, etc.

Process Sketch:
Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table
Packaging & Shipping
1.One 40ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.
ABOUT US
Hebei Xinnuo Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can
pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including:
visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty: 12 months limits warranty
