Factory Directly Sale Pd3016 CNC Drilling Machine for Bridge

Product Description

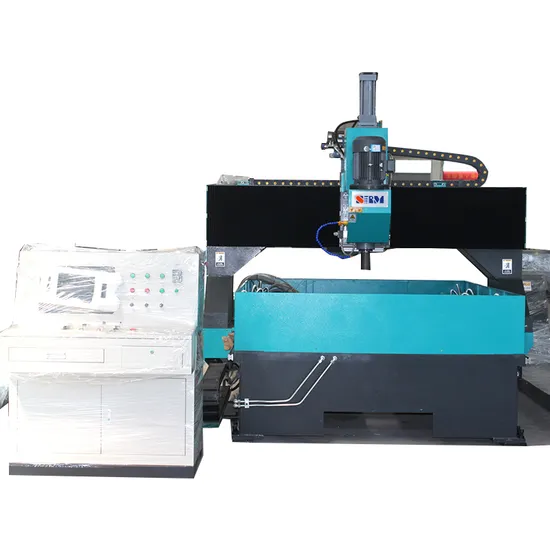

Factory Directly Sale PD3016 CNC Drilling Machine For Bridge
Product Description
PD series CNC plate drilling machine mainly do the drilling process of the junction plate and base anchor which used widely in steel structure, iron tower, bridge, and machining industries etc., and also used widely for flange drilling process.
THE PRODUCT STRUCTURE FEATURES
1. CNC slid drilling head, can control the depth of hole, have the function of drilling blind hole, expanding hole, and chamfering.
2. PLC control system can assure the drilling positional accuracy
3. The machine have four processing area, 12 hydraulic clamp can clamping four groups of working pieces, can assemble and disassemble the work piece at the same time of drilling
4. LCD display by PLC control system
5. Programme based on windows, Auto CAD , and support lofting software TEKLA
6. Auto chip-removal system, cooling liquid are circular
7. The Key machanical, hydraulic, electronic parts adopts global brand name
8. The whole machine are integrated designed, don't need to lay the foundation

Product Parameters

Model	PD/PCD2016	PD/PCD2016/2	PD/PCD3016	PD/PCD3016/2
Processing scope(mm)	2000×1600	2000×1600	3000×1600	3000×1600
Stack thickness(mm)	100
Spindle number	1	2	1	2
Spindle model	Morse 4 # taper hole
Spindle rotating speed(r/min)	120-560	120-560	120-560	120-560
Feed mode	Hydraulic automatic stroke drilling power head
Feed stroke (mm)	180
Drilling diameter (mm)	φ12 ~ φ50 (optionφ12 ~ Φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)	φ12 ~ φ50 (optionφ12 ~ φ63)
Main motor power (Kw)	5.5( 7.5)	5.5×2 /7.5×2()	5.5(7.5)	5.5×2/7.5×2(option)
Number of clamping cylinders	12
Clamping force (KN)	7.5
Clamping system	Double side button control of gantry
Hydraulic pump pressure (Mpa)	6

Detailed Photos
PD SERIES DRILLING MACHINE
WORKPIECE
Packaging & Shipping


CERTIFICATE & PATENTS
Company Introducation
Shandong Raintech SANS Technology Co., Ltd is a professional manufacture for CNC machines with more than 13 years' experience. The factory established in the year of 2008, has been devote to the research and production of the advanced CNC machines which can save the production cost and time in steel industry application
We answer our nation call of "Made in China 2025"plan, adopts intelligent information technology to improve the machinery industry , our machines widely used in Uhv power transmission and transformation steel tower, electrical iron fittings, wind power machines, traffic railway construction , steel structure construction, three -dimensional parking system, central air conditioner system, sea water desalination, Petroleum and petrochemical , construction machinery, project machinery and port machinery , Modern granary, shipbuilding etc.
Our brand reputation in advanced leading position in the field domestic, also becoming an important role on international market, the products have been exported to more than 20 countries and area in the world. Customer Feedback
FAQ
1. Q: Are you a Manufacturer or a trading company?
A:We are a professional manufacturer with more than 15 experience in manufacturing, assembling and selling in this field. We have our own factories as well as trading companies
2. Q: How long have your factory been in this field? And how many staff do you have?
A: We have been in this field mode than 12 years since the year of 2008, total staff more than 100.
3. Q:Where are you and how can I visit you?
A: Our factory located in Jinan City, Shandong Province China, contact us before your visit in order that we can arrange the good reception.
4. Q: Can you provide a customized solutions?
A: Yes, our engineers are pleased to listen your idea and customized design is available
5. Q: What about the warranty?
A: We provide 12 months warranty since the machine arrival. free charge of spare parts and regularly maintenance service.
6. Q:How about the delivery time ?
A: The delivery time is different on different products.We never receive any complain from our customers for the delivery time
7. Q: What about the package and shipment , worry about damage in shipping .
A:The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
8. Q: What kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are generally accepted.
9. Q:Do u support on installation and training?
A: Yes, we provide engineers to your site for installation and training, if conditions not allowed, we provide team work by video conference for installation gaudiness on line.
