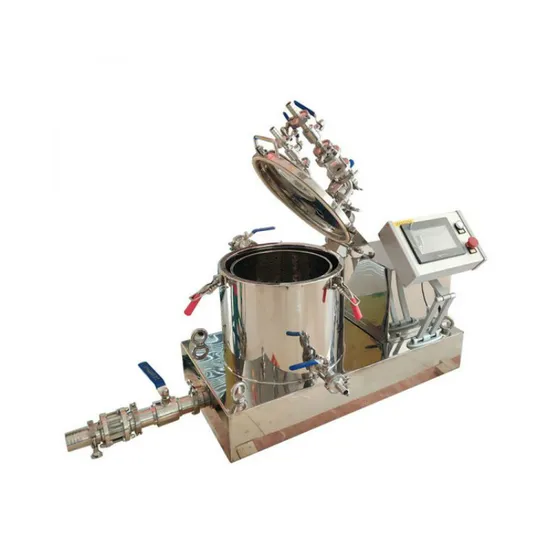

Extract Separator Hemp Ethanol Oil Extract Centrifuge

Product Description

Product Description

DescriptionWorking Steps

Operator fills filter bag with milled plant material and places it in the machine. The centrifuge is then flooded, and bi-directionally agitated for full target compound removal. After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible. The alcohol wash is then collected to some container for further processing
Main Features

Platform base design lowers the center of gravity and requires minimum installation space.The platform base can be used for operation platform. liquid- damping vibration isolators ,Simplify the routine maintenance. Inverter start -up.Smooth starting ,adjustable relative centrifugal force. Auto/Manual Controls

Collocation
Explosion-proof Motor Viton Seals Touch screen panel with PLC program Inverter control box On spot ex button Closed type filter bags Tri clamp fittings for feed and drain port Drum without curl inward Standard Features 304 and 316L Sanitary Stainless Steel Constructio Low temperature rating:-70ºC

Technical parameters

Model	Basket Diameter (mm)	Basket Volume (L)	Speed (rpm)	Power (kw)	Weight (kgs)	Capacity (kgs/batch)	Capacity for dry hemp (per batch)
PTD-25	450	20	1900	1.5	250	25	~8kgs
PTD-50	600	40	1500	3	800	50	~15kgs
PTD-135	800	100	1200	5.5	1300	135	~30kgs
PTD-200	1000	150	1000	7.5	2000	200	~45kgs
PTD-300	1200	250	800	11	2500	300	~60kgs

Open-top drawings of products




Packing
Our Services Our services As Follows:
Provide free technical training, guidance and information of accessories.
Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.
Once receive the customer complaints, we will response within 24 hours.
Free maintenance and replacement will be provided if defects result from quality failure of our product.
Our company will provide perfect after-sale services and technical support.
