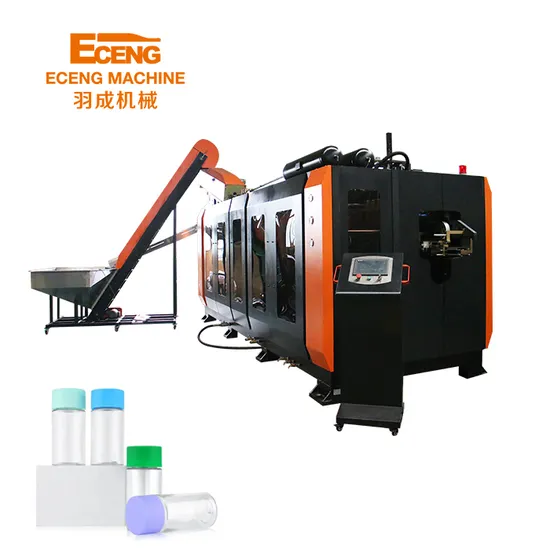

12000bph Pet Plastic Bottle Molding Machine

Product Description

12000bph Pet plastic bottle Molding Machine
Product Description A. Brief Introduction
K6 is the most stable two-step fully automatic high-speed rotary PET stretch-blowing machines(reheat). The capacity of the products is from 0.25L to 2L. It can blow pet bottles for different use: Carbonated, mineral water, milk, beer, oil, hot filling tea, and other drink packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
YCQ series has adopted original heating and blowing technics, by which the automatic blowing machine series have achieved in powerful productivity but very reasonable price.
B. Machine Construction
B. 1. Preform feeding and loading unit
The design of the recycling unit prevents the preforms from getting bound up in the unscrambler. The star wheel design of the feeding unit provides the lowest possible changeover times for switching to different perform sizes.
B. 2. Linear Oven
A mandrel capable of turning 180 degrees guarantees uniform neck section during the heating. A unique oven ventilation system enables the YCQ series blower to handle various difficult applications easily.
I. Power saving: Heater is fixed with link of short section(43.8mm), which assures to heat more performs with the same heating length. In this way, it saves electricity of 25%.
Ii. Water cooling plate: Cooling bottle neck avoid neck deformation during heating.
Iii. Infrared heat lamps:
A. Each lamp is individually adjustable;
B. Lamp gripper is adjustable as angle changes;
C. Lamp rod is adjustable in length, which is good for bottom heating;
B. 3. Preform and bottle transfer wheel
The new YCQ series utilizes a classic double cam telescopic gripper system, this guarantees reliable movement, and easy maintenance.
B. 4. Molds and Mold Carriers
The mold carrier utilizes a shell blow mold design; This reduces the changeover time for different blow molds. The Mold carriers accommodate all shell type molds from conventional blow molding machines, this saves time and expense for bottle producer. Moreover, the reliable quick locking system maximizes the performance of the mold carriers.
B. 5. Blowing Station
A changeable cam for the stretching curve guider guarantees the form quality for different size bottles. Monobloc blowing valves achieve the fastest and most consistent blowing process possible. Bottle necks are protected during the blowing stage by a specially designed sealing unit.
Description
It is can be widely used in production of mineral water, carbonic acid beverage, juice, tea and heat-resistence bottle products
1-Can be connected with filling machine directly .Saving the investment on the ordering-bottle machine.
2-Adopting high technology Micro PLC controller .Ensure the machine working properly and stable.
3-Sole heating electricity saving design.50% electricity saving comparing to the other machine.
4-Specially mould locking clamping system,1.5 times efficiency.
5- Easy installation and starting
6- Low rejection rate: less than 0.3percent.
Machine pictures
Products pictures
Technology Advantage
l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion
Our Service
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
well-known for its fine quality for plastic bottle blowing machine
After sales service
1> Find our products through ecengmachinery.en.made-in-china.com ******,GlobalMarket,Made in China,Globalsources,Tradekey.
2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
3>Every 3 year , we can help to overhaul the machine freely(labor).
4>Free production technology and process configuration.
5> We can help you to design the product line , workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer's journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
