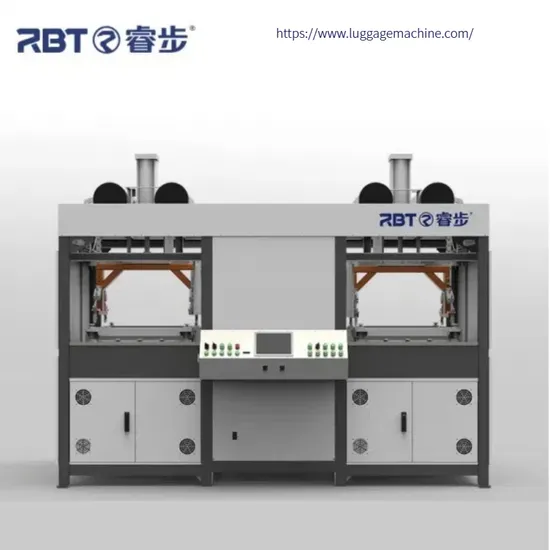

Rbt Vacuum Forming Machine for ABS PC PP Luggage Suitcase Making

Product Description

China's Premier Supplier of Luggage and Suitcase Production Machinery
the manufacturing plant covers an area of about 26,660 square meters:
Material-welding assembly and debugging integration:
warehouse:
Parameters(for reference)

RB-A8-20/24/28 Luggage vacuum forming machine Model RB-A8-20 RB-A8-24 RB-A8-28 Sheet Material and Thickness ABS,PC etc;1-4mm Input power 380v±10%,50HZ Vacuum capacity (M³) 0.2M³ 0.3M³ 0.35M³ Vacuum pressure (MPA) -0.07 ~ -0.09MPA Air pressure (MPA) 0.65-0.75MPA Air consumption (L / MIN) 550L/MIN 650L/MIN 800L/MIN Total machine power (KW) 39.5KW 49KW 55KW Working power (KW) 35KW 44KW 50KW Power copper wire model 16mm2 16mm2 25mm2 ABSABS case max. output (pcs / H) 110 105 90 PCPC case max. output (pcs / H) 85 80 70 Machine Type 20inch 24inch 28inch Maximum mold size (L*W*H ) 600*420*200MM 690*510*200MM 780*600*200MM Maximum sheet size (L*W*H ) 730*550MM 830*650MM 930*750MM Maximum frame size (L*W) 680*500MM 780*600MM 880*700MM Machine weight (T) 2.0T 2.0T 2.1T Overall dimensions(L*W*H ) 3000*1700*2450MM 3300*1700*2450MM 3600*1850*2500MM

Machine advantage features:
1. Precision Molding: Ensures accurate and consistent shaping of suitcases, resulting in high-quality end products.
2. Versatility: Capable of processing a variety of materials, including ABS, PC, and polypropylene, making it suitable for diverse luggage designs.
3. High Efficiency: Streamlined production processes reduce manufacturing time, increasing overall output.
4. Cost-Effective: Reduces material waste and labor costs through efficient design and automation, leading to lower production costs.
5. User-Friendly Interface: Many machines come equipped with advanced control systems that make operation and adjustments easy for operators.
6. Durability: Built with robust materials and engineering, these machines offer long-lasting performance and reliability under continuous use.
7. Customizable Designs: Offers flexibility for producing various suitcase styles and sizes, accommodating unique customer requirements.
8. Environmentally Friendly: Some models are designed with energy-efficient features and the capability to work with recyclable materials, reducing the environmental impact.
9. Rapid Production: Facilitates quick changeovers and setup, allowing manufacturers to respond swiftly to market demands.
10. Advanced Cooling Systems: Helps in maintaining optimal temperatures during the forming process, ensuring higher quality and consistency in the final product.
Some Cooperation customers:
packing&delivery:
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ:
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. What's your main market?A: Our machine has 90%market share in Chinese luggage factory,for export,we have 85% market share ,such as Germany,USA,Turkey, Morocco, India, Bangladesh, Algeria, Egypt, Tunisia, South Africa, Vietnam, Cambodia, Thailand, Indonesia,Pakistan,Spanish,Russia,etc
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce or the spare parts.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong engineer team to support the drawing, technology proposal, test and certification; We can customize the machine per customer requirement.
Q7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
