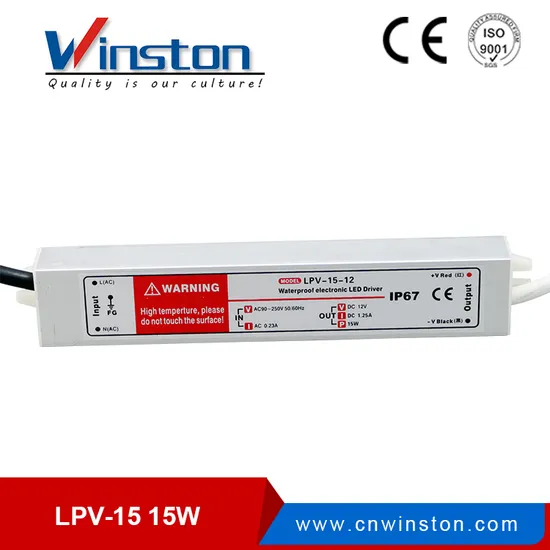

Winston Waterproof 15W LED Driver Power Supply with Ce
| US$3.16-3.74 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
LPV-15
Driving Method
LED Regulator Voltage
Circuit Structure
Capacitor Step-down
Certification
CE, RoHS
Power Supply Mode
Constant Voltage Source
Modulation System
PFM
In-Out
Lifting Pressure Type
Power Supply Voltage
AC85-265
Pack Sealing Size
SC-70
Brand
Winston
Antistop
Switching Power Supply
Workmanship
The Exquisite German Technology
Dimensions
233*122*60mm
Weight
1.26kgs
Manufacturer
OEM
Condition
Original New
Guarantee
2 Year Case
Output Frequency
47-63Hz
Transport Package
Export Standard Carton Box or ODM
Specification
CE, ROHS
Trademark
Winston/OEM/Neutral
Origin
China
HS Code
8504401990
Production Capacity
10000PCS/Month
Product Description
WINSTON waterproof 15w led driver power supply with CE Cooling by free air convectionLED indicator for power on
100% full load burn-in test
High efficiency, long life and high reliability
2 years warranty
Technical data:
| Model | LPV-15-12 | LPV-15-24 |
| DC output voltage | 12V | 24V |
| Output voltage error | ±1% | ±1% |
| Rated output current | 1.25A | 0.63A |
| Output current range | 0-1.25A | 0-0.63A |
| Wave and noise | 80mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% |
| Load stability | ±0.5% | ±0.5% |
| DC output power | 15W | 15W |
| Efficiency | 81% | 83% |
| AC input voltage range | 85-264VAC | |
| Input current | 0.5A/115V 0.25A/230V | |
| AC impulse current | Cold-start current 13A/115V 26A/230V | |
| Leakage current | <0.5mA/240VAC | |
| Over load protection | 105%~150% rated output power | |
| Protection:Hiccup mode,recover automatically | ||
| Over voltage protection | 13~16V | 28~32V |
| Protection:Shut down output voltage | ||
| Short circuit protection | Protection:Hiccup mode | |
| Temperature coefficient | ±0.03%(050) | |
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | |
| Withstand voltage | I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| Working temperature and humidity | -10~+60°C, 20~90%RH | |
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
Our Services
| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: Manufacture company, each of the products is tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty. |
Trade Information
| Trade Terms | FOB ,CIF ,CFR,EXW,DDP |
| Payment terms | T/T,L/C,Western union,Paypal,Escrow,MoneyGram |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
| Payment conditions | 30% deposit in advance,70% balance before shipping. |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton,Wooden case for large size |
| Shipping | By sea,by air and by express delivery |
