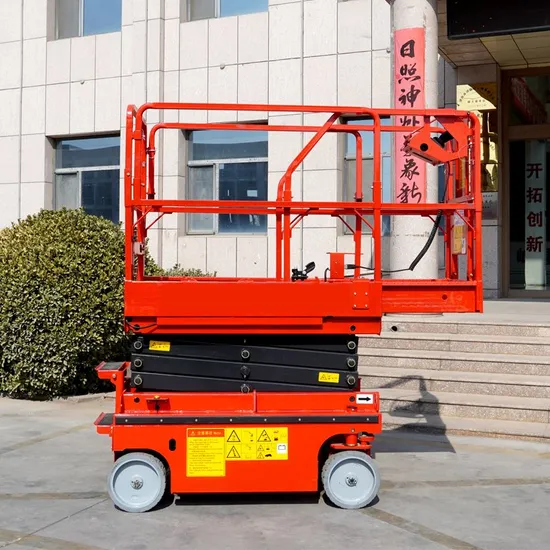

10m 12m 14m Boom Lifter Aerial Work Platform Electric Scissor Lift
Basic Info.
Model NO.
YGPT1214
Application
Workshop Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
DC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Safe Working Load
320kg
Maximum Number of Workers
2
Maximum Working Height (a)
13.8m
Maximum Platform Height (B)
11.8m
Dimensions of The Working Platform (F)
2270X1120mm
Dimensions of The Extended Platform (G)
900mm
Lifting Motor
24V/4.5kw
Machine Operating Speed (Folded)
3.5km/H
Machine Operating Speed (Lifted)
0.8km/H
Ascending/Descending Speed
84/38sec
Battery
4X6V/200ah
Charger
24V/25A
Maximum Gradeability
25%
Machine Weight
2980kg
Moving Method
4 Wheels or Crawler
Transport Package
Export Wood Cases
Specification
5-20m lift height
Trademark
YG
Origin
Henan
HS Code
8428909090
Production Capacity
1000 Units/ Year
Product Description
Product DescriptionThe Aerial Scissor Lift combines a sleek appearance with a compact structure, delivering strong power performance and an extended working time. Its mobility and flexible operation make it highly adaptable in various fields.
Key Features: 1. Hydraulic Drive System: Driven by a hydraulic system, the lift ensures high precision, great sensitivity, low wear, and minimal noise. 2. Compact and Flexible Design: The compact structure can be modularized into a small space, providing excellent field adaptability. The new electric propulsion system enhances flexibility and environmental friendliness. 3. Safety and Reliability: Equipped with a pothole protection device, anti-collision protection, falling alarm, and other safety systems, the lift ensures a secure working environment. 4. Extendable Platform: The platform is extendable, accompanied by foldable guardrails, offering a larger and safer working space. 5. Integrated LCD Instrument: The high-definition LCD instrument integrates lifting operation buttons, mode selection, power display, and working time, enhancing convenience and control. 6. Low Maintenance Cost: The lift features a strong structure, contributing to low maintenance costs over time. In summary, the Aerial Scissor Lift stands out for its hydraulic drive system, compact and flexible design, safety features, extendable platform, and integrated control instrument, making it a reliable and efficient solution for various applications. Product Parameters
| Model | YGPT1012 | YGPT1214 | YGPT1416 |
| Platform size(mm) | 2190x1120 | 2270x1120 | 2640x1110 |
| Platform height(mm) | 2573 | 2670 | 2815 |
| Load capacity(KG) | 450 | 450 | 450 |
| Power(kw) | 24V/1.5(AC/DC) | 24V/1.5(AC/DC) | 48V/5KW |
| Voltage | 220v/380V 50hz single phase | 220v/380V 50hz single phase | 220v/380V 50hz single phase |
| Battery | 6V*8/240AH | 6V*8/240AH | 6V*8/300AH |
| Working height | 10m | 12m | 14m |
| Rising speed | 70/62mm/s | 85/75mm/s | 68/60mm/s |
| Dimensions | 2450x1380x2573mm | 2782x1581x2670mm | 3211x1630x2815mm |
| Maximum horizontal extension | 900mm | 900mm | 900mm |
| Weight | 2840kg | 3580kg | 4880kg |
Detailed Photos
Company Profile
Packaging & Shipping
Certifications
