Two 10/100/1000m Outdoor Eoc Master CATV
Basic Info.
Model NO.
EOM-7102
Certification
CE, ISO
Condition
New
Product Name
Two 10/100/1000m Outdoor Eoc Master CATV
Frequency Range
7.5-65MHz
RF Port
1*Eoc Low-Frequency Signal Output Port
Ethernet Interface
Two 10/100/1000m Auto-Negotiation RJ45 Ports
Working Mode
Tdma/Csma
Network Management
Web, Cli, Snmp
Power Supply
220V/60V Optional
Consumption
<7W
Dimension
190mm*137mm*98mm
Transport Package
Box
Trademark
Softel
Origin
China
HS Code
8517622990
Production Capacity
50000PCS/Month
Product Description
Two 10/100/1000M Outdoor EOC Master CATVSummary

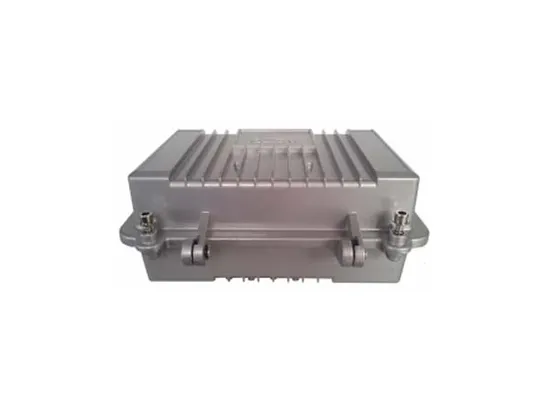

7102 is the outdoor EOC Master of the EOC (Ethernet Over Coaxial) solution. It is in compliant with HomePlug AV standard. The 7102N have one EOC module. It provide two TV input, two CABLE output and two 10/100/1000M auto-negotiation uplink ports. It offers the high-speed data service to the customer based on the coaxial cable network.
Features HomePlug AV solution, based the Qualcomm AR7410 chipset.
Modularized design, easy for maintain
Aluminum alloy die casting shaping, good heat dissipation
Outdoor waterproof designed, 60V/220V power supply optional
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
PHY Layer speed 600Mbps, MAC Layer throughput up to 320Mpbs
Support bi-direction data encryption
Support broadcast storm limitation
Support data packet statistics
Support auto-update and auto-configuration
Support WEB,CLI,SNMP based network management
Support On-line upgrading
Specification
| Item | Parameters | Specification |
| Interface and LEDIndicator | RF Port | 1*EOC low-frequency signal output port, support F- Female or SMB connector |
| Ethernet Port | Two 10/100/1000M Auto-negotiation RJ45 ports | |
| LED Indicator | 1 for Power Supply Status 1 CABLE Link Status indicator 2 for Ethernet Ports Status | |
| PerformanceParameters | RF Parameters | Frequency Band :7.5-65MHz RF Output Level:115±5dBuv Receive sensitivity: 45dBuv Return Loss:>16dB Output Resistance:75Ω |
| Transmission | PHY Layer: 600Mbps Throughput on MAC Layer: 320Mbps | |
| Modulation Mode | OFDM~ 2690~carriers 4096,1024,256,64,16,8~QAM, QPSK, BPSK, ROBO | |
| Working Mode | TDMA/CSMA | |
| Encryption Mode | AES-128 | |
| Standard | EOC Standard | IEEE P1901(Draft) HomePlug AV |
| Ethernet Standard | IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q | |
| Software | Network Management | WEB, CLI, SNMP |
| Software Features | VLAN, QOS, Bandwidth Control, Broadcast storm limitation | |
| Physical Features | Power supply & Consumption | Power Supply:220V/60V optional Consumption:<7W |
| Size & Net weight | Dimension:190mm×137mm×98mm Weight:1.5kg |
