20 Litre Plastic Bottle Blow Molding Machine to Make 5 Gallon Pet Bottle

Product Description

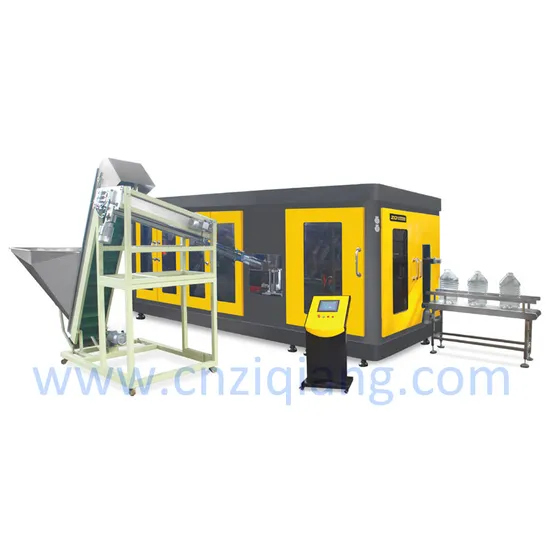

20 Litre Plastic Bottle Blow Molding Machine to Make 5 Gallon PET Bottle
ZQ-B20L-2, a pioneer in full-automatic linear PET stretch blow moulding machine, especially for big volume bottles, ZQ adopts special design on the preheating system and servo driving system to enable it a big volume blowing, saving more than 50% power compared with similar machines by others, it is widely used in the package of beverage, edible oil, ketchup, cosmetics and medical products with the volume 20L.
Blowing system: Create the high-pressure integration valve group, the single cavity productive capacity is increased by 60%.
Concentrated heating system: Patent light box provides an even temperature, lamp distance 101mm rather than 240mm from
Others and save power by more than 50%.
Stretching system: Use linear sliding track framework instead of liner bearing, which offers an outstanding improvement of stability.
Main transmission system: Adopt patent double strand roller chains technology, to assure the demands of stability and high speed.
Hydraulic mould clamping system replace the traditional pneumatic clamping system, booster pressure from one sides with 2 plate forming to assure the high clamping stability at a pass rage of 99.8%.
PET 20 liter bottle blow moulding machine,equipment information.

TYPE	ITEM	ZQ-B20L-1	ZQ-B20L-2
CONTAINER	Number of cavity	1 cavities	2 cavities
	Output	300-400 pcs/hr	600-800 pcs/hr
	Max. container volume	20.0L	20.0L
	Max. neck diameter	90mm	90mm
	Max. container diameter	290mm	290mm
	Max. container height	490mm	490mm
ELECTRICAL SYSTEM	Number of lamp	30pcs	60pcs
	Max. heating power	60kw	120kw
	Installation power	65kw	125kw
	Actual power consumption	45kw	65kw
AIR SYSTEM	Operatating pressure	7-8kg/cm²	7-8kg/cm²
	Low pressure consuming	1500Ltr/min	1800Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	2000-2500 Ltr/min	3500-4000 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10º C	10º C
	Consuming	6000kcal/hr	8000kcal/hr
	Flow rater	50Ltr/min	88Ltr/min
MACHINE	Machine dimension	4.1x2.7x2.1(m)	5.1x2.7x2.1(m)
	Machine weight	4.0ton	5.0ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
