Basic Info.
Model NO.
swiss lathe machine
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
System
Fanuc 0I TF-Plus /Syntec 220tb
Max.Rpm
Main8,000min-1/Sub8,000min-1
Main Spindle Stroke
210mm
Rapid Traverse Speed
32m/Min
Back End Tools
4X [20-Er16]
Size
2760mmx1564mmx1882mm
Transport Package
Standard Packin
Specification
2760mm-1564mm-1882mm
Production Capacity
50000/Year
Product Description

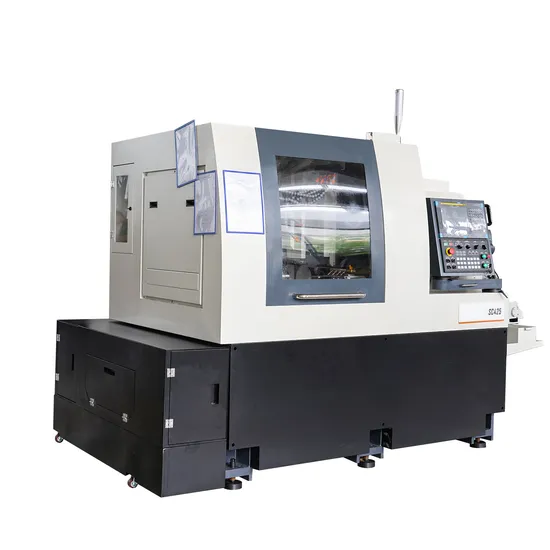

Swiss Lathe/CNC Automatic Lathe 4-axis -AK164
The Swiss type lathe, often recognized as a CNC automatic lathe, stands as a hallmark of precision machining excellence.
Experience the pinnacle of multi-functional processing with our innovative Swiss type lathe. This masterful machine effortlessly executes tasks such as tapping, milling, drilling, and turning, all while featuring the cutting-edge dual spindles and an advanced double Y-axis. This dual-action prowess significantly reduces processing times, making it the ultimate choice for batch operations involving intricately shaped, non-standard parts. From precision hardware to complex shafts, this lathe ensures superior performance and efficiency.Step into a realm of unmatched precision with our trailblazing Swiss-style lathe, a true marvel in CNC automatic technology. This extraordinary machine redefines your workshop's capabilities, executing a multitude of operations such as tapping, milling, drilling, and turning with unparalleled precision. Equipped with dual spindles and a state-of-the-art double Y-axis, this lathe stands as the epitome of efficiency, allowing for simultaneous processing that significantly reduces production times. Specifically engineered for the batch production of complex, non-standard components, it excels in crafting precision hardware and intricately designed shafts.
Product Description
Experience the epitome of precision and innovation in motion with our cutting-edge Swiss Type CNC Lathe Machine. Boasting an impressive 210mm Spindle Stroke Capability, this machine is designed to redefine precision metalworking. The state-of-the-art sliding headstock mechanism ensures a seamless propulsion of a metal stock segment through the guide bushing with unparalleled accuracy. Simultaneously, the remaining workpiece is held steadfast within the robust chuck located behind the guide bushing, shielded meticulously from the tooling area. This configuration guarantees maximum stability and precision, setting new standards in metal manufacturing solutions.Each section of the workpiece is machined with precision to perfection, enabling the effortless advancement of bar stock along the z-axis. This innovative process paves the way for precise machining of subsequent sections, embodying the hallmark of rapid and accurate manufacturing. This meticulous segmented approach is unparalleled in its ability to counteract part deflection caused by intense cutting forces, significantly enhancing the accuracy and quality of the final product. Elevate your manufacturing capabilities with our unmatched CNC lathe technology.Modern Swiss-style lathes stand as marvels of engineering brilliance, typically outfitted with one or two main spindles, accompanied by one or two secondary back spindles. The main spindle acts as the powerhouse, delivering unmatched performance for most machining operations. Meanwhile, the innovative secondary spindle, strategically positioned behind the part, seamlessly takes over post-cutting. It performs a suite of secondary operations, such as drilling or tapping previously inaccessible areas of the workpiece, showcasing unparalleled versatility and efficiency. Discover the engineering excellence that defines our Swiss CNC lathe.Upon the completion of these sophisticated operations, the secondary spindle gracefully ejects the finished part into a collection bin. This streamlined process eliminates the need for manual intervention, a common requirement with standard CNC turning machines. Swiss lathes excel in material versatility, adeptly handling a diverse range of metals including carbon steel, aluminum, stainless steel, and brass. They are also capable of machining certain plastics like nylon and polycarbonate, although less commonly used for wood. Revel in the superior craftsmanship and manufacturing efficiency that epitomizes our Swiss Type CNC Lathe Machine, defining new standards in precision metalworking.
Product Parameters
Items | AK164 |
Mechanic | System | FANUC 0i TF-PLUS | SYTENC 22TB |
/Max.RPM | Main10,000min-1/Sub8,000min-1 | Main6,000min-1/Sub6,000min-1 |
Max.Turning Diameter | φ16mm |
Main Spindle Stroke | 150mm |
() | 5000rpm |
/ | φ10mm |
/ | M8/M5 |
() | φ10mm |
() | M5 |
Rapid traverse speed | 32m/min(X1:24m/min) |
Tools | O.D Tools | 6X [12×12] |
I.N Tools | 3X[φ25-ER16] |
()Cross Driven Tools(integration) | 3X[ER16] |
Motors | Main | 2.2/3.7KW | 3.9KW |
Sub | 0.55/1.1KW | 0.75KW |
Cross | 0.5KW | 0.5KW |
Drive | 0.5KW | 0.75KW |
Coolant | 0.25KW |
Others | Coolant tank capacity | 180L |
Lubrication tank capacity | 1.8L |
Central Height | 1,050mm |
Weight | 3,000Kg |
(××)The size (L×W×H) | 1985×1321×1692mm |
NC NC Control | / Controllable Axes | 5axis/4axis |
LCD | LCD 8.4" |
System standard parameters | Standard |
Rigid tapping | Standard |
Helical interpolation | Standard |
Items |
Standard units | Floodlight | The product output device |
Transformer | Centralized lubrication system |
C+ The spindle axis C + brake | Synchronus rotary guide bush holder unit |
C:0.001° C axis resolution: 0.001 ° | Auxiliary shaft workpiece ejection device |
M Air blow on Sub spindle | Cooling box |
0ptionanl units | Bar feeder | Front power tools |
Oil cooler | 4 4axis cross tools |
Chip conveyor | cut-off tool detector |
High pressure pump | 45 4axis or 5axis I.N tools |
Thread whirling rings | 10 10axis I.N tools |
Detailed Photos
