Best Price CNC Machine PMD Series Plate Drilling Milling Machine
Product Description

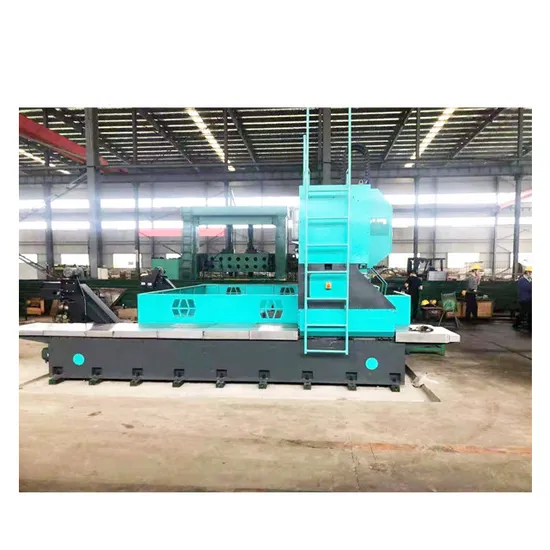

The PMD-series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. Adopting iron casting bed, it It can realize automatic, high precision and many kinds of mass production
PRODUCT STRUCTURE CHARACTERISTICS
1.The machine mainly consists of the bed and the longitudinal slide table,gantry and the horizontal slide table ,the vertical sliding pillow drilling power box ,the work table ,the eletric control system and so on
2.The machine adopts movable gantry and fixed worktable ,save the floor area.
3.The PMD CNC Drilling Machine bed and worktable are independent ,which improves the stability of the equipment and effectively reduces the vibraation generated during high speed drilling .
Product Parameters

Model	PMD-3030	PMD-3030/2	PMD-4040/2	PMD-5050/2
Processing(mm)	3000×3000		4000×4000	5000×5000
Maximum thickness(mm)	300
Number of spindle	1	2	2	2
Spindle model	BT50
Spindle speed(r/min)	10-3000
Feed stroke(mm)	500
Dia.of drilling hole(mm)	φ60
Maximum tapping diameter(mm)	Optional M32
Motor power(KW)	22KW Inverter motor (18.5KW servo motor)

Feature
Machine Application
This machine is suitable for drilling plate ,baffle and flange in the petrochenical ,boiler ,refrigeration,wind power flange and other industries. It can also be used in the of connecting plate in the steel structure such as building ,bridge ,tower and so on
Packaging & Shipping
Our Advantages
Professional Technical Team: We own a professional technical team who devote to the advanced design on the machines and better performance with plenty experience more than 15 years.
Various Patents: we have been got many patents on various models of our products these years and keep on developing new products.
High Products Quality:We have been gained a lot of good reputation among our customers and never got any quality complaint until now
Professional Experienced Sales Team:
Our sales team have average 10 years ' experience in export process, they are qualified to provide the most reasonable proposal for you and resolve your problems on machines selection and usage immediately once you ask.
FAQ
1. What's your advantage ?
A: We assure each machine dispatched from our factory a long-life usage with easy operation and humane design.We consider help our customer to hence the production efficiency and save your human power as our aim.
2. How l believe you?
A: Welcome to visit us to check our plant and ability, the payment method can be chosen and the third party inspection through ****** is available.
3. What about the warranty of your products?
A: We provide 12 months warranty since the machine arrived at customer site , free charge of spare parts and oline maintenance service
4. Where are you? Can l visit you?
A: our factory located in Shandong province, china, welcome to visit us at any time.
5. How about the delivery time?
A: For standard model, the delivery usually 25 days since the advance payment receipt. For the customized products, the delivery time will follow our agreement with customer.We never receive any complain from our customers for the delivery time
6. What kind of payment does your company support?
A: TT,100% LIC at sight,Cash, Western Union are accepted. If you have other payment terms, welcome discuss with us
