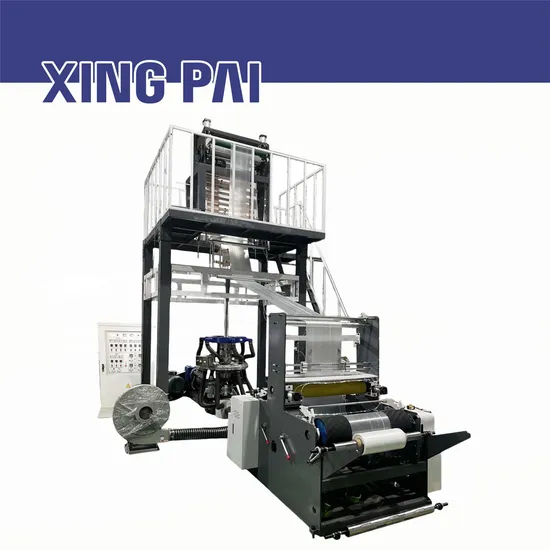

Factory Supplier Long Life Plastic PE Film Blowing Machine

Product Description

Product Description
The machine is used for make express bag ,Agricultural film,greenhouse film .
we used Taiwan type screw ,Bimantal ,the output is higher 30% than others
1.Taiwan type die head ,bigger size .
2.Taiwan type air ring ,better cooling
3.Taiwan type screw ,bimental ,which can mix material better and high output
Product Parameters

Model	SJ-55*3/XP1200	SJ-65*3/ XP 1500	SJ-70*3/ XP 1800	SJ-65*3/ XP 2000
Screw Diameter(mm)	50 /55/50	55/65/55	60/70/60	65/75/65
Screw Ratio(L/D)	30:1	30:1	30:1	30:1
Screw Speed(r/min)	110	110	110	110
Power of Main Motor(kw)	15/18.5/15	18.5/30/18.5	22/37/22	30/45/30
Range of Die(mm)	¢300	¢350	¢450	¢550
single-sided Thickness of Film(mm)	0.02-0.15	0.02-0.15	0.03-0.15	0.05-0.15
Max.Folding Width of Film(mm)	1200	1500	1800	2000
Max.output (kg/h)	120	150	170	200
Electric Total Capacity(kw)	80	90	110	130
Weight of Machine(kg)	6500	7500	9000	11000
Overall Dimensions (L*W*H)(m)	6.8*3*6	7*3.2*7.5	8*3.5*8.5	8.5*5*10.5

Detailed Photos
Other product recommendation


workshop picture
Group picture with customer
customer feedback
Packaging & Shipping
FAQ
1.:Are you factory or trading company ?
we are factory specialized in plastic machine for many years ,all of our engineer with more than 20 years experience .
2. Where is your factory? How can i visit your company?
our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train).we will pick you up on airport or station .welcome to visit our factory
3 How long is your delivery time?
On normal our delivery time is 30-45 days .if you need it ugently ,we can make your machine first.about 10 days
4.:What's your warranty policy?
18 month guarantee and whole life maintance ,

5:What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost .

6:Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
7:What are your terms of payment?
We accept T/T, L/C. western union.
8. How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
9: Does your engineer understand English?
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
