Qt6-15 Block Making Machine Cement Brick Machine Holland Brick Machine

Product Description

Product Description
- - - Product Description - - -
QT6-15 Block making machine adopts the leading technology for block machine in the world, Particular storage and discerption material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density. Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material , high frequency vibration makes the material to have a optimal vibration way. The computer is fault diagnosis system. Warming signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
Choose Lily
+ 86~ I786223O7OO for more detailed quotation
Specifications of QT6-15C Concrete Block Making Machines

Technical Parameter	Detailed Data
Overall Dimension	7450x2450x3050mm
Rated Pressure	16Mpa
Main Vibration Form	Platform Vibration
Virbration frequency	4500-5100r/min
Pallet Size	900*700mm
Mould cycle	15-20s
Exciying	65kn
Overall power	28kw
Weight	6000kg

Main production specification and theoretical productivity
100Ton cement silo
1) Capacity(ton): 100
2)Diameter of trank(m): 3
3)Thickness of trank(mm):5
4)Total height(m):15

PLD1200-3 batching machine
1) Weigh bucket capacity (L): 1200
2) Productivity (m3/h): 72
3) Batching precision : ±1%
4) Number of material matching : 3
5) Work loading height (mm) : 2700
6) Feeding belt speed (m/s): 1
7) Power (kw): 16
8) Gross weight (kg): 4000
9) Dimension (mm):8500*3000*3100
JS750 Mixer
1)Charging capacity (L): 1000
2)Discharging capacity (L): 750
3)Production capacity(m3/h): ≥35
4) Max Aggregate Diameter(mm):≤60/80
5)Cycle Time (s):72
6) mixing vane rotation speed: 30.5r/min
7) mixing vane quantity :4x7
8) Power (KW): 38.6KW
9) Weight(KGS): 6800
10) Dimension ((L×W×H)mm: 3220×2400×2600

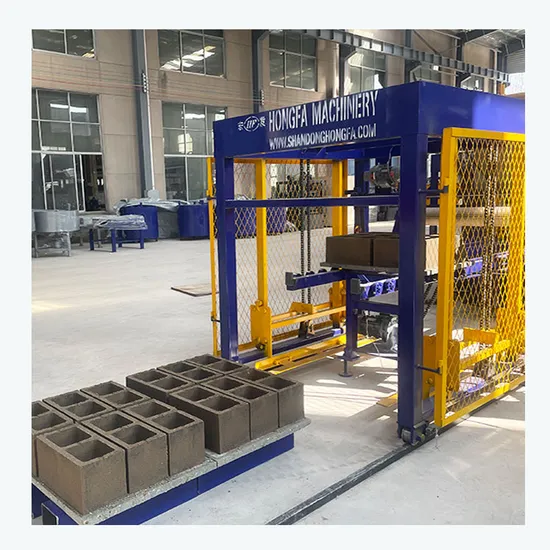

QT6-15 Host machine
1) Shaping time: 15-20 seconds
2) Shaping: vibration+hydraulic
3) Capacity(pcs/day): 9600-80000
4) Power(kw): 28KW
5) Pressure: 16Mpa (adjustment)
6) Pallet size: 900*700x20mm
7) weight: 6000KGS
8) Over all dimension(mm)(L*W*H): 7450x2450x3050mm
Advantages of Block Making Machine to Produce Concrete Brick
1. We have own fatory !!!
2.The same quality, the pricei s cheaper!!!
3. Have sufficient stock!!!.
4. Small orders to support customization!!!
5. We siupport oversea installation!!! Packaging & Shipping
- - - Packaging &Shipping - - -
Company Profile

- - - Company Advantage - - - Shandong Hongfa Machinery Co., Ltd is a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine, concrete mixing plant, mixer, concrete block making machine,concrete tile making machine and concrete pipe making machine with more than 20 years experience and being the biggest manufacturer in China at present. All the products are conformity with the standard of the state, and gets the ISO9001-2008 Quality System Certificate, also honored as 'One of the Top Ten Famous Brands of Bricks & Tile Field in China' and other honors.
Our company has CE , ISO9000 ,BV and so on . The products has high quality, and sold all over the world . Company Profile
Bulit in 1990:
Shandong Hongfa Scientific Industrial & Trading Co.,Ltd. is started in the year 1990,mainly produces construction machinery.The leading products include series of concrete block production line, concrete block machine, aerated concrete block production line,block machine(line),concrete batching plant.
4 production bases:
Now it has 4 production bases in Shandong and Guangxi covering more than 500 acres, with 56 senior engineers and engineers, more than 1120 engineers and technicians.It is the biggest building materials machinery manufacturers, with strong technical force, reliable product quality,which merge science,industry and trade together in one.
"Top 10 Influential Chinese brick brand"
It has produced "Hongfa" brand building machinery up to three series of 21 varieties of product with ISO9001-2008 international quality system certification. The company was named "National contract and trustworthy enterprise", "national AAA level credit enterprise", "National Key High-tech Enterprise", "Hongfa" brand products have been awarded such Honorary titles as "Top Ten Influential Chinese brick brand" "Famous Trademark of China", "Shandong Famous Trademark", "consumer satisfaction products" and so on.
After Sales Service
- - - After Sales Service - - -

Pre-sale service support
According to each customer's demand and budget, we offer you the professional solution, process flow design and production equipment. More importantly, we welcome every customer to visit our factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
After-sale service support
Assist clients to finish the factory planning. Before delivery equipment to customer s, complete debugging and checking. Provide a full instruction manual for the whole system. Provide technical guidance for the installation and use of the unit, including installation advice and electrical connection. Provide unit debugging and training for the operation of the machine on the working site and coordiante the customers with check and acceptance of the unit.

FAQ
- - - FAQ - - - 1. Q: Are you a manufacturer of a trading company?
A: Not trading company !!!
We are one of the big building materials machinery manufacturers in China, with strong technical force, reliable product quality, which merge science,industry and trade together in one. Welcome to our factory at any time.
2.Q: Do you have ready machine in stock ?
A: we do have stock!!! But almost all our molds need customized according to local size requirements.
3. Q:Do you have branch office in my country ?
A:until now we have distributor in Uz and Algeria etc. contact us if you need their contacts.
4. Q:HOW to pay ? is my money safe ?
A:yes dear your money is protected by the made-in-china platform. you can pay by TT BANK or LC at sight.
5. Q: How about the installation and service?
A: We support Overseas Installation for all our medium / big machines, small machines you will gain online video technical support (Trading company may not support).
If you have any question about the machine during using it , our engineer can supply the service 24hours online.
6. Q: If my machine break down how to do ?
A: Contact Lily let us help to find the problem, and we can send spare parts to restart your machine.
7. Q: Can you assure the quality?
A: Yes, we can. Our equipment will be carefully tested before shipping, and can be used over 10 years. You can come to our factory and check the machine and machine testing before delivery .
8. Q: When will the machine delivery and how to guarantee the machine delivery?
A: The machine will delivery 15-25 working days after recieved the deposit ,
if can't delivery on time (delay more than 7days ), our factory will provide the free spare parts for you , or you can cancel the order . The deposit will send back to you .Q:How is your After-sales service:
We understand that the post-purchase experience is just as important as the initial sale. That's why we have a dedicated after-sales service team that is available to assist customers with any issues or questions they may have after making a purchase. Our team is trained to provide prompt and effective solutions to ensure that our customers are satisfied with their purchase and have a positive experience with our company.
9: Q:How about claims:
A: Our company takes claims seriously and we have established a clear process for handling them. If a customer has a claim, they can submit it through our website or by contacting our customer service team. We will review the claim and take appropriate action to resolve the issue. We strive to address claims promptly and fairly to ensure that our customers are satisfied with the outcome.
10: Q:How to deal the trade disputes caused by rising sea freight and others:
A:We understand that trade disputes can be disruptive to our business and we take steps to minimize their impact. We work closely with our suppliers and partners to ensure that we are aware of any potential issues that may arise. Additionally, we have a legal team that is well-versed in trade law and can provide guidance and support in the event of a dispute. We are committed to finding solutions that are fair and equitable for all parties involved
