Horizontal Manual Heavy Duty Big Bore Metal Lathe Machine Cw62103c
Basic Info.
Model NO.
CW61103C
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
1030mm
Max Swing Over Cross Slide
700mm
Max Length of Workpiece
1.5m-6m
Width of Guideway
610mm
Spindle Bore
105mm/130mm
Range of Spindle Speed
10-800/18 , 7-576/18, 6-480/18rpm
Longitudinal Feeds Range
0.07-16.72
Transversal Feeds Range
0.04-9.6
Max.Travel of Cross Slide
615/ 715/8159/15mm
Max.Travel of Top Slide
225/300mm
Tailstock Sleeve Diameter
120mm
Tailstock Sleeve Travel
270mm
Main Motor Power
11kw
Transport Package
Wooden Case
Trademark
UNI-TECH
Origin
China
HS Code
84581900
Production Capacity
100sets/Months
Product Description

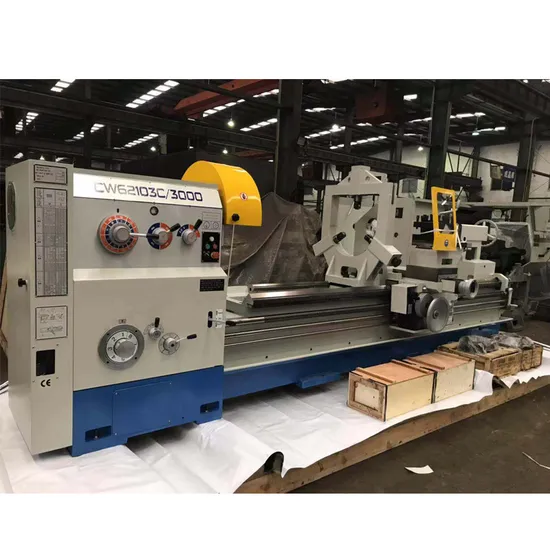

Horizontal manual heavy duty lathe machine CW62103C FEATUREHorizontal manual heavy duty lathe machine Feature
harden gear,harden bed way
2.130mm spindle bore for optional
3.610mm bed way,strong rigidity
4.Solid bed,good antivibration 5. Head stock runs on taper roller bearings
6. Powerful 11KW motor for heavy-duty cutting
7. Overload slip clutch enclosed in apron. SPECIFICATIONS
| Model | Unit | |||||
| CW62103C | CW62123C | CW62143C | CW62163C | CW62183C | ||
| Swing over bed | mm | 1030 | 1230 | 1430 | 1630 | 1830 |
| Swing in gap | mm | 1200 | 1400 | 1600 | 1800 | 2000 |
| Swing over cross slide | mm | 700 | 900 | 1100 | 1240 | 1440 |
| Distance between centres | mm | 1500; 2000; 3000; 4500;6000 | ||||
| Length in gap from face plate | mm | 380 | ||||
| Spindle nose | C11 or D11 | |||||
| Spindle bore | mm | 105,130 | ||||
| Spindle speeds | rpm/steps | 10-800/18 7-576/18 6-480/18 | ||||
| Cross slide travel | mm | 615 715 815 915 | ||||
| Top rest travel | mm | 225 300 | ||||
| Rapid traverse | mm/min | Axe Z:3200 ,Axe X:1400 | ||||
| Quill dismater | mm | 120 | ||||
| Quill travel | mm | 270 | ||||
| Quill taper | MT6 | |||||
| Bed width | mm | 610 | ||||
| Metric threads | mm/kinds | 1-240/53 | ||||
| Inch threads | tpi/kinds | 30-2/31 | ||||
| Module threads | mm/kinds | 0.25-60/42 | ||||
| Diametral pitch threads | tpi/kinds | 60-0.5/47 | ||||
| Longitudinal feeds | mm/r | 0.07-16.72 | ||||
| Cross feeds | mm/r | 0.04-9.6 | ||||
| Main motor power | kw | 11 | ||||
| Packing size (mm) | Length | 3840; 4340; 5170; 6670; 8290 | ||||
| Width | 1700 | 1700 | 1850 | 2000 | 2200 | |
| Height | 1980 | 2080 | 2220 | 2280 | 2380 | |
| Gross weight | Kgs | 5900 | 6500 | 7200 | 7800 | 8600 |
| 6250 | 6850 | 7400 | 8200 | 9000 | ||
| 6900 | 7500 | 8100 | 8900 | 9700 | ||
| 8000 | 8600 | 9000 | 9800 | 10600 | ||
| 9000 | 9600 | 10000 | 10500 | 11200 | ||
ACCESSORIES
Horizontal manual heavy duty lathe machine Stand Accessories
| 500mm 4-jaw chuck and flange | |
| 500mm steady rest(1 pc) | |
| Dead centers | |
| Reduction sleeve | |
| Foundation bolts | |
| Level blocks | |
| Maintenance kits |
Horizontal manual heavy duty lathe machine optional accessories
A)Chasing dial
B)800mm face plate
C)Follow rest
D)Live center
E)380mm 3-jaw chuck and flange
F)2 AXIS DRO Detailed Photos
Horizontal manual heavy duty lathe machine more photos
After service
1. Our quality gurantee time is 12 months since the machine on board date.
A, During this period, if something damaged owing to our machine itself, we will supply you the spare parts free and post to you by DHL or some similar courier within 7 days
B. During this period, if machine problem is caused by operator own mistake, we will charge you the half costs for the spare parts, and charge you the DHL costs.
2. Exceeding the 12 months quality time, If you need some spare parts, we will have to charge you the spare parts on full value and charge you the DHL costs.
If you are interested in heave duty manual lathe machine, pls contact us
TENGZHOU UNI-TECH CO.LTD
Contact person: Kitty Xu
