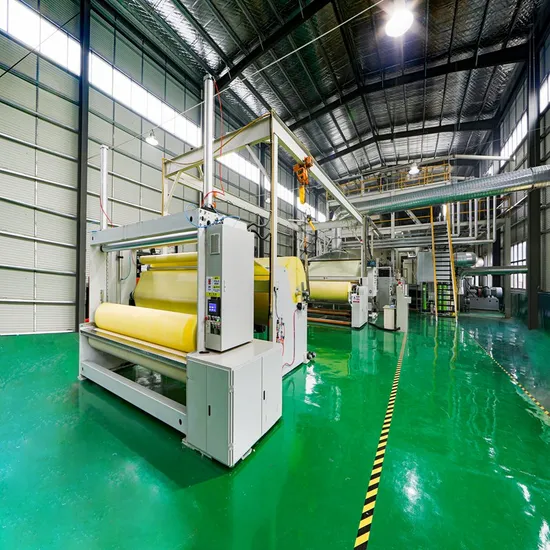

1600/2400/3200mm CE Approved Hg Wooden Cases Medical Equipment Nonwoven Fabric Making Machine

Product Description

1.Introduction:
PP spunbond nonwoven fabric and PP meltblown nonwoven fabric are well-known nonwoven fabric in the world.Both of nonwoven fabric are made by PP(Polypropylene)
PP spunbond or meltblown nownoven fabric use different manufacturing process when the production line works.
PP spunbond combines fiber spinning with web formation by placing the bonding device in line with spinning.Fibers are former as the molten polymer exits the spinnerets and is quenched by cooling air and deposition on a moving conveyor belt.It is possible to single layer to multi layers nonwove fabric such as S/SS/SSS/SMS/SSMS/SMMS/SSMMS etc...It means one layer fiber splay on another layer again and then thermal bond together.
Most of nonwoven fabrics are layered or shingled structure,the number of layers increased with increasing basis weight;High strength-to-weight ratios compared with other woven,and knitted structures.PP Spunbond nonwoven fabric are characterized by tensile,tear,and burst strengths,elongation-to-break,weight,thickness,porosity and stability to heat and chemicals.These properties reflect fabric composition and structure.
2.Process flow
PP Raw Material→melting and extruding→filtering→metering→spinning→quenching→air-suction→ filament web forming→calendering→winding and slitting→packing→end product.
3.Nonwoven machine details:

Model	Effective width	Daily capacity	Machine speed	Spinning system	GSM Range	Machine dimension Length*Width*Height
HG-1600M	1600MM	2000Kg	100M/Min	Only meltblown	10-200grams/m2	15*8*8 meter
HG-2400M	2400MM	3000Kg				15*10*8 meter
HG-3200M	3200MM	4000Kg				15*12*8 meter
HG-1600S	1600MM	5000Kg	200M/Min	Spunbond(S)	10-200grams/m2	20*8*11 meter
HG-2400S	2400MM	7000Kg				20*11*11meter
HG-3200S	3200MM	10000Kg				20*15*11meter
HG-1600SS	1600MM	9000Kg	350M/Min	Spunbond(SS)	8-150grams/m2	35*10*11meter
HG-2400SS	2400MM	13000Kg				35*12*11meter
HG-3200SS	3200MM	16000Kg				35*15*11meter
HG-1600SSS	1600MM	12000Kg	400M/Min	Spunbond(SSS)	8-100grams/m2	40*10*11meter
HG-2400SSS	2400MM	16000Kg				40*12*11meter
HG-3200SSS	3200MM	23000Kg				40*15*11meter
HG-1600SMS	1600MM	10000Kg	400M/Min	Spunbond+Meltblown+Spunbond	8-80grams/m2	40*15*11meter
HG-2400SMS	2400MM	14000Kg				40*18*11meter
HG-3200SMS	3200MM	18000Kg				40*25*11meter
HG-1600SMMS	1600MM	12000Kg	500M/Min	Spunbond+Meltblown*2+Spunbond	8-80grams/m2	45*15*11meter
HG-2400SMMS	2400MM	17000Kg				45*18*11meter
HG-3200SMMS	3200MM	23000Kg				45*25*11meter

Advantage of HG Nonwoven Machines:1.High accurate raw material blender for polyproplyene and additives;
2.High capacity extrusion machine with good screw and barrel;
3.High performance melt filtration system;
4.High Speed with high accurate melt pump;
5.Lastest melt flow design and spinning system;
6.Well-know PLC control system and motors;
7.Smart operation program and monitoring syustem;
4.How important of nonwoven fabric in the world
PP Nonwoven fabric is excellent fabric for application in packing,agriculture,heathcare,medical,hygienic,filtration and so on... because spun bond and meltblown nonwoven fabric can be produced in faster speed with less cost than traditional woven fabric or knitted fabrics.For example,pp spunbond nonwoven fabric is widely used as packaging material where paper products and plastic films are not satisfactory.Most of countries are going to ban plastic bags,so nonwoven fabric bag will be the most popular packing material in the world.The nonwovens for agriculture as crop cover or agriculture protective cover,it is manufactured by spunbond process which polypropylene is spun into fine filaments and bonded,it can be used for a variety of rock gardens,flowerbeds etc.
PP nonwoven fabric also has better quality and other application in other field such as health care/hygiene/medical,Modern disposable absorbent hygiene products have made an important contribution to the quality of life and skin health of millions people.Thes user of (i.e. baby diapers,feminine hygiene products and adult incontinence products) benefit from softness,smoothness,leakage prevention,strength and protection provided by pp spunbond and meltblown nonwoven fabric.At the same time medical usage nonwoven fabric plays an important roll as surgical mask/cap/shoes covers for body protection.
5.Why choose US
1. High standard nonwoven machine specification.
2. Free inspection invitation before delivery.
3. DUNS&BRADSTREET regiested company;your order safe and your money is safe.
4. Free door to door engineering service in 24 month.
5. CE Certification and ISO:9001 management system.
FAQ:
1.How can i know your machine has good quality?
You can visit our company and we will see many machines in China,because we also have many customers from local market.
2.What is the delivery time for nonwoven machines as usual?
We need 3-6 month to make your order.
3.Will you inspect my order before shipping?
We accept SGS inspection service and buyer own inspect it,we will pay all expense for buyer visiting.
4.How is your after-sale service and warranty?
we provide 12 month warranty and free door to door engineering service in the period.
Free spare parts replacement and online technical support.
5.How long time for machine installation?
It takes 30-60 days for machine installation as usual.
