Kc259-225 Initial Twisting Machine Yarn Twister Machine

Product Description

Product Description

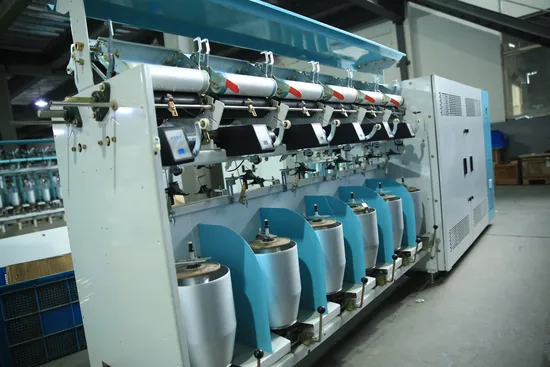

KC259-225 Initial Twisting Machine Yarn Twister Machine
Twister for initial twisting process
Working Principle
After the single-ply yarn is twisted on the two or three spindles by "S" direction. It is directly combined to wind on the same forming bobbin.

Product Parameters
KC259-225: make twisting of industrial yarns and carpet yarns;

Machine structure	Double sides, single layer, thread manually
Twist direction	S or Z
Twist range	35-1000T/M (need to be selected)
Rated power	26kw
Number of spindles	18n, 288 spindles/set is standard
Spindle drive	Apron belt circulation drive
Spindle gauge	225mm

Traverse: 190mm-270mm (optional according to actual situation)
Winding speed: max. 120m/min ( according to the twist);
Start-up mode: frequency conversion slow start;
Take-up package: max. 6kg;
Spindle speed range: 2500-13000r/min (according to different yarns);
Spindle tensioner: ball type;
Winding motor: 1.1KW or 3KW;
After Sales Service
For demo machine set:
18 spindles/set+Machine head;
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
