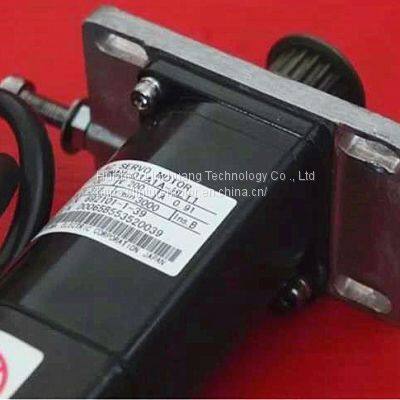

SGMAH-01A1A-HL11 Yaskawa Electric Servo 0.91A Current Controller

Product Details

Product Description

Product Description
Brand:Model:Palce Of Origin:Type:Supply Voltage:Current:Ins:R/min:High Light:

Yasakawa	SGMAH-01A1A-HL11
Japan	Servo Motor
100W	0.91A
B	3000
ac servo motor,electric servo motor

YASKAWA Industrial 3000r/min 0.91A SGMAH Japan Sigma II 100W SGMAH-01A1A-HL11
Specifications
Manufacturer: Yaskawa
Product number: SGMAH-01A1A-HL11
Description: SGMAH-01A1A-HL11 is an Motors-AC Servo manufactured by Yaskawa
Servomotor Type: SGMAH Sigma II
Rated Output: 50W (0.07HP)
Power Supply: 200V
Encoder Specifications: 13-bit (2048 x 4) Incremental Encoder; Standard
Revision Level: Standard
Shaft Specifications: Straight shaft without keyway
Accessories: Standard; without brake
Option: None
Type: none
