Sofar Solis Solar Energy Storage 5kw Three Phase on Grid 6kw 8kw 9kw 10kw Solar Inverter for Solar System

Product Description

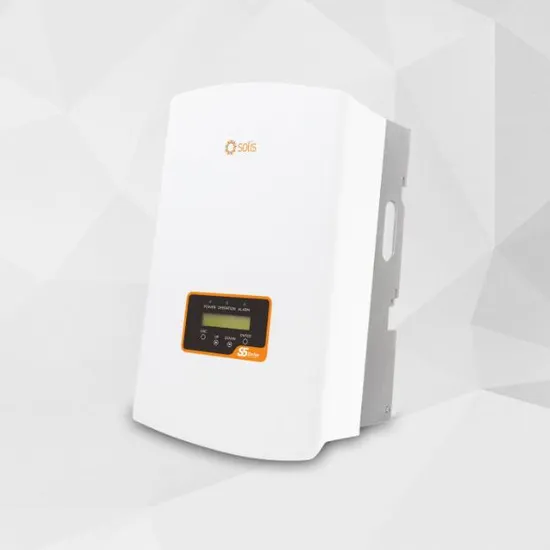

S5-GR3P(5-10)K-LV S5-GR3P(5-10)K-LV three phase series string inverter are reliable preferred equipment for residential, small industrial and
commercial pv power stations.Smaller size, higher efficiency, a variety of power models available for selection. Adopt two MPPT access, more flexible and efficient. Product Description
Data Information

Model Name	GCI-1P7K-5G	GCI-1P8K-5G
Input DC
Recommended max. PV power	9.1kW	10.4kW
Max. input voltage	600V
Rated voltage	330V
Start-up voltage	120V
MPPT voltage range	90-520V
Max. input current	12.5/25A
Max. short circuit current	19.5A/39A
Max. input strings number	2/3
Output AC
Rated output power	7kW	8kW
Max. apparent output power	7.7kVA	8kVA
Max. output power	7.7kW	8kW
Rated grid voltage	1/N/PE,220V
Rated grid frequency	50Hz
Rated grid output current	30.4A	34.8A
Max. output current	33.5A	34.8A
Power Factor	>0.99 (0.8 leading - 0.8 lagging)
THDi	≤3%
Efficiency
Max.efficiency	98.10%	98.10%
EU efficiency	97.30%	97.30%
General Data
Dimensions (W*H*D)	310*543*180mm
Weight	13.3kg
Topology	Transformerless
Self consumption	<1W(Night)
Operating ambient temperature range	0~100%
Relative humidity	-25~60ºC
Ingress protection	IP65
Cooling concept	Natural convection
Max.operation altitude	4000m
Grid connection standard	NB/T 32004
Safty/EMC standard	IEC 62109-1/-2, IEC62116, EN 61000-6-2/-3/-4

Detailed Photos

Successful Project
Company Profile
Hefei Pinergy Solar Technology Co.,Ltd is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.

Packaging & Shipping
FAQ
A:Thrustworthy: PNG is the authorized distributor of Solis product.
B: Service: Professional sales technician, providing you with One to One service and fast reponse.
C: Fast delivery,: PNG keeps stock for most main power products such us 10kw hybrid inverter.
D: Warranty guaranteed: PNG guarantees you that each Solis inverter you purchase from us will be provided with 5 years standard warranty.
E: One-stop solution: We can also provide free design of the entire solar system that you need for your houses or projects.
F: Cheaper shipping: We keep highly cooperated relationship with DHL, UPS, Fedex, SF Express to make sure you pay less shipping cost if you only need one or two pieces.
