3000bph Automatic Bottle Pure Water Filling Line
| US$14,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VACGF3000
Type
Normal Pressure Filling
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Surface Type
Filling Principle
Atmospheric Pressure
Packaging Container Lifting Structure
Chute Lifting
Structure
Rotary
Packaging
Bottle
Packaging Material
Plastic
Capacity
3000-3500
Suitable Bottle Size
200ml-2000ml
Main Material
Ss
Filling Valve
Normal Pressure Filling
PLC
Mitsubishi
Pump
Cnp
Bottle Material
Plastic
Cap
Plastic Chain
Capping Type
Screw Capping
Electrical
Famous Brand
Washing Heads
8
Filling Heads
8
Capping Heads
3
Dimension
1900X1500X2000mm
Weight
1700kg
Transport Package
Wooden Case
Specification
8-8-3
Trademark
GM
Origin
Zhangjiagang
HS Code
8422301090
Production Capacity
5units/Month
Packaging & Delivery
Package Size
190.00cm * 160.00cm * 220.00cm
Package Gross Weight
1700.000kg
Product Description
Product Description

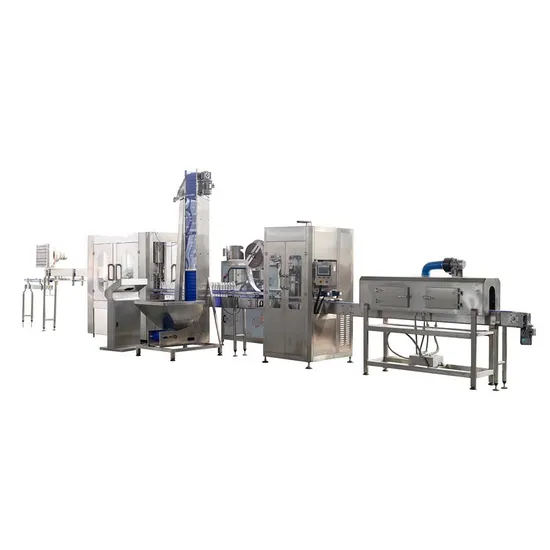

General of VACGF3000 rinser filler capper 3 in 1 machine/pure water filling packing machine/ bottling plant
This VACGF-3000 Bottled water machine is a rinser, filler, and capper integrated together, based on the technology from European .It is suitable for the filling drinking in PET bottles of drinking water .pure water ,mineral water ,bottled water .table water ,drinking pure water ,
the advanced technology and the beautiful shape, the reliable operation and the high efficiency help the customer get a satisfactory result.
Usage: for round or rectangle PET bottles for pure water, mineral water etc normal temperature filling products.
The round bottle (other shape similar) sizes: 250ml-2000ml plastic material with plastic screw type of caps .
Product Parameters
Technology data for Bottled pure water filling machine/ filling 3in1 machine /plastic bottle water filling monobloc
| model | VACGF3000 |
| theory capacity: | 2000-3000bph(500ml bottle) |
| Main motor | 1.5kw |
| filling pump: | 0.55kw |
| Spraying pump: | 0.37kw |
| Washing heads | 8pcs |
| filling heads | 8pcs |
| capping heads | 3pcs |
| max bottle size | 2000ml |
| dimension | 1900x1500x2000mm |
| weight | 1700kg |
| power | 380v/3ph/50hz / or speical ordered |
main spare brand
| PLC | Mitsubishi |
| touch screen | china taiwan brand |
| pump | CNP |
| main electricals | famous brand |
| main motor | china brand |
Detailed Photos
Certifications
Our factory
Contact us
https://glorymachinery.en.made-in-china.com/contact-info.html
Related models
| VACGF4000 |
| VACGF6000 |
| VACGF10000 |
| VACGF15000 |
