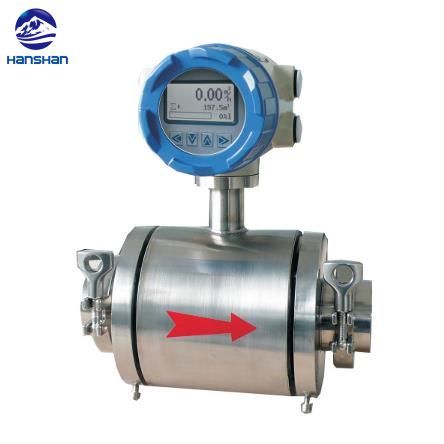

Smart Electromagnetic Flowmeter with Innovative Non-Intrusive Measurement Solutions

Product Description

Pioneering the future of flow measurement, this cutting-edge device leverages the international leading excitation technology, setting a new standard in precision and reliability.
With a simplified, stable, and highly reliable excitation circuit, this product embodies engineering excellence and state-of-the-art innovation.
Infused with the power of artificial intelligence, it offers unparalleled performance and adaptability, redefining flow measurement.
Engineered with no movable parts and no flow-resisting components, this design epitomizes efficiency and durability.
The pipeline remains free from any additional pressure loss, enhancing operational efficiency.
Exhibiting consistent measurement results, this device operates independently of flow velocity distribution, fluid pressure,
temperature, density, viscosity, and other physical parameters, ensuring the highest accuracy and reliability.
Its dynamic online range modification feature caters to the bespoke needs of users, offering customizable precision.
Versatile in application, it adeptly measures the flow of conductive fluids such as tap water, sewage, mud, and various beverages.
From chemical materials to viscous liquids and suspended solids, its low conductivity measurement capability broadens its adaptability.
Designed with explosion-proof safety, it complies with stringent national standards, having successfully passed all identification and
acceptance tests. This ensures its suitability for diverse explosion-proof environments.
The high resistance design ensures rapid response, adeptly capturing weak signals without distortion, and swiftly reflecting flow changes.
With a remarkable range ratio of 100:1, it provides unmatched flexibility and precision.
Utilizing capacitive technology for empty and full pipe detection, it prevents false alarms, ensuring operational integrity.
Consistency across converter swaps means no re-input of parameters is necessary, saving time and increasing efficiency.
Offering a wide range of power options (DC: 18V~36V, AC: 85V~265V), it ensures compatibility with various power conditions.The factory function safeguards settings, guaranteeing that the instrument parameters remain secure and foolproof.
Seamless operation is facilitated by infrared remote control and key operation, enhancing user convenience and ease of use.
Featuring sensor zero correction and automatic zero calibration, it maintains optimal accuracy at all times.
With a bilingual Chinese (English) interface, it caters to diverse user requirements, ensuring global applicability.
Equipped with converter self-calibration and self-check functions, it promises sustained operational efficacy.
An anti-lightning protected circuit with anti-interference capability makes it ideal for harsh environmental conditions.
Boasting digital communication signal output options like RS485, RS232, Hart, Modbus, and Profibus, it integrates seamlessly with existing systems.
With diverse protection levels and installation methods, converters and sensors cater to unique application needs, with IP68 level enabling submerged installation.
The inserted electromagnetic flowmeter excels in large pipe flow measurements, offering advantages in simplicity, installation without interruption, and cost-effectiveness.
Its measurement precision is linked solely to the depth of insertion, making it highly interchangeable and adaptable for various pipeline measurements.
This type can be applied broadly across different specifications of pipeline fluid measurement, reflecting its versatile prowess.
The inserted technology ensures that the process is seamless, offering both installation convenience and cost benefits.
The versatility of this flowmeter makes it indispensable, seamlessly adapting to an array of applications and specifications.
Its capability to measure across diverse pipeline specifications showcases its comprehensive application range and high interchangeability.
of specifications of the pipeline fluid measurement.
Technical Parameters

Model	TK1100 standard series	TK1200 high accuracy series
Caliberl	DN3-DN2200	DN10-DN300
Accuracy	0.5%	0.2%,0.3%
Installation method	Hold,flange	Hold,flange
Repeatability	0.1%	0.06%,0.1%
Measuring range	0-12m/s(flow unit can be changed)	0-12m/s(flow unit can be changed)
Connecting flange	GB/T9119-2000 or any other choice	GB/T9119-2000 or any other choice
Pressure	4.0MPa~0.25 Mpa (classify by caliber)	4.0MPa~0.25 Mpa (classify by caliber)
Lining material	PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane)	PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane)
Electrode material	316L,HC,HB,titanium,tantalum,platinum	316L,HC,HB,titanium,tantalum,platinum
Electrode form	Standard,(scraper,it can be replaced by DN>350)	Standard,(scraper,it can be replaced by DN>350)
Protection level of sensor	IP65,IP67,IP68	IP65,IP67,IP68
Conductivity	>5μS/cm(water>20μS/cm)	>2μS/cm(water>20μS/cm)
Maximum temperature of medium	Integrated type≤90ºC,split type≤160ºC(rubber,PO≤70ºC)	Integrated type≤90ºC,split type≤160ºC(rubber)
Ambient maximum temperature	-30ºC~+65ºC	-30ºC~+65ºC
Converter installation mode	Integrated,split	Integrated,split
Output signal	4-20mA current signal,frequency /pulse output	4-20mA current signal,frequency/pulse output
Power supply	AC:85V~265V,DC:18V~36V	AC:85V~265V,DC:18V~36V
Self diagnosis	yes	yes
Zero setting of empty pipe	yes	yes
Communication	RS485/Modbus,HART,PROFIBUS	RS485/Modbus,HART,PROFIBUS
Explosion-proof	No explosion proof/explosion proof	No explosion proof/explosion proof
Language	Chinese,English	Chinese,English
Product standards	JB/T 9248-1999	JB/T 9248-1999

Model	TK1300 hygienic series	TK1500 battery powered series
Caliberl	DN3-DN150	DN10-DN1200
Accuracy	0.2%,0.5%	0.5%
Installation method	Thread,clamp	Hold,flange
Repeatability	0.06%,0.1%	0.15%
Measuring range	0-12m/s(flow unit can be changed)	0-10m/s(flow unit can be changed)
Connecting flange		GB/T9119-2000 or any other choice
Pressure	The highest 4.0MPa	4.0MPa~0.6 Mpa (classify by caliber)
Lining material	PFA(negative pressure resistance)	PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane)
Electrode material	316L,HC,HB,titanium,tantalum,platinum	316L,HC,HB,titanium,tantalum,platinum
Electrode form	Standard	Standard,(scraper,it can be replaced by DN>350)
Protection leve of sensor	IP65,IP67,IP68	IP65,IP67,IP68
Conductivity	>2μS/cm(water>20μS/cm)	>5μS/cm(water>20μS/cm)
Maximum temperature of medium	Integrated type≤90ºC,split type≤160ºC	Lntegrated type≤90ºC,split type≤160ºC(rubber,PO≤70ºC)
Ambient maximum temperature	-30ºC~+65ºC	-30ºC~+65ºC
Converter installation mode	ntegrated,split	Lntegrated,split
Output signal	4-20mA current signal,frequency/pulse output	Frequency 0-5kHz
Power supply	AC:85V~265V,DC:18V~36V	3.6V
Self diagnosis	Yes	Yes
Zero setting of empty pipe	Yes	Yes
Communication	RS485/Modbus,HART,PROFIBUS	RS485/Modbus,GPRS
Explosion-proof	No explosion proof/explosion proof
Language	Chinese,English	Chinese,English
Product standards		JB/T 9248-1999

Model	TK1400 inserted type series	TK1600 electromagneticheat meter series
Caliberl	DN200-DN3000	DN15-DN1200
Accuracy	1.5%;2.5%	1.0%,2.0%,2.5%
Installation method	Flange,thread,on-line	Hold,flange,thread
Repeatability	0.5%	0.3%;0.5%
Measuring range	0-10m/s(flow unit can be changed)	0-12m/s(flow unit can be changed)
Connecting flange	GB/T9119-2000 or any other choice	GB/T9119-2000 or any other choice
Pressure	1.6MPa	4.0MPa~0.6Mpa (classify by caliber)
Lining material	POM,PTFE,PFA	PO,PTFE,PFA(negative pressure resistance), rubber,polyurethane)
Electrode material	316L,HC,HB,titanium,tantalum,platinum	316L,HC,HB,titanium,tantalum,platinum
Electrode form	Standard	Standard
Protection level of sensor	IP65,IP67,IP68	IP65,IP67,IP68
Conductivity	>5μS/cm(water>20μS/cm)	>5μS/cm(water>20μS/cm)
Maximum temperature of medium	Integrated type≤90ºC,split type≤130ºC(POM≤100ºC)	Integrated type≤90ºC,Splitype≤160ºC(rubber,POM≤70ºC)
Ambient maximum temperature	-30ºC~+65ºC	-30ºC~+65ºC
Converter installation mode	Integrated,split	Integrated,split
Output signal	4-20mA current signal,frequency/pulse output	4-20mA current signal,frequency /pulse output
Power supply	AC:85V~265V,DC:18V~36V	AC:85V~265V,DC:18V~36V
Self diagnosis	Yes	yes
Zero setting of empty pipe	Yes	yes
Communication	RS485/Modbus,HART,PROFIBUS	RS485/Modbus,HART,PROFIBUS
Explosion-proof	No explosion proof/explosion proof	No explosion proof/explosion proof
Language	Chinese,English	Chinese,English
Product standards		Refer to 9248-1999 JB/T
