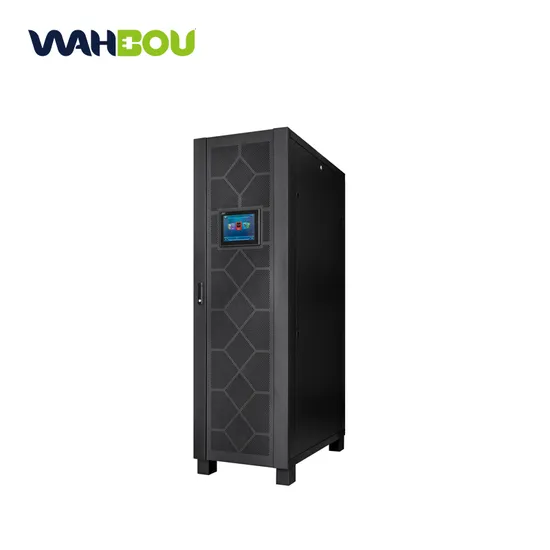

Parallel Modular UPS 300kVA-600kVA Three Phase Centralized Online UPS with Snmp/ RS485
| US$85.00-29,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
RM50-500
Protection
All of Overvoltage, Short Circuit, Overcurrent etc
Application
Communication
Classification
Lighting/Power
Standby Time
Long-acting Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Wahbou
UPS Capacity
500kVA
Power Module
50kVA (10PCS)
Power Module Charging Current
20A Max
Input Voltage Range
138-485VAC
Working Frequency Range
40-70Hz(Settable)
Input Power Factor
>=0.99
Output Power Factor
1.0
Transport Package
Neutral Wooden Box
Specification
440x620x130mm
Trademark
WAHBOU or OEM
Origin
Guangdong, China
HS Code
8504402000
Production Capacity
100000 Sets/Year
Packaging & Delivery
Package Size
120.00cm * 85.00cm * 200.00cm
Package Gross Weight
645.000kg
Product Description
Parallel Modular UPS 300kVA-600kVA Three Phase Centralized Online UPS with SNMP/ RS485Our Advantages
Product Description
Product Parameters
| Model | RM50 300 | RM50 400 | RM50 500 | RM50 600 | ||
| Capacity | UPS Cabinet | 50-300kW | 50-400kW | 50-500kW | 50-600kW | |
| Power Module | 50kW | |||||
| Max Quantity of Module | 6 | 8 | 10 | 12 | ||
| Input | Rated Input Voltage | 380/400/415 Vac | ||||
| Input Voltage Range | 138-485 Vac | |||||
| Wiring | 3P4W+G | |||||
| Frequency Range | 40-70Hz | |||||
| Input Power Factor | ≥0.99 | |||||
| Input Current Harmonic Wave | ≤3% (100% non-linear) | |||||
| Bypass Input | Rated Input Voltage | 380/400/415 Vac | ||||
| Input Voltage Range | 220 upper limit: 25% (optional +10%,+15%,+20%) 230 upper limit: 20% (optional +10%,+15%) 240 upper limit: 15% (optional+10%) Lower limit:-45%optioinal10%, -20%,-30%) | |||||
| Wiring | 3P4W+G | |||||
| Bypass synchronization tracing range(Hz) | ± 10% | |||||
| Generator | Support | |||||
| Power Walking In | Support | |||||
| Bypass Flow Backward | Support | |||||
| Output | Voltage | 380/400/415 Vac ± 1% | ||||
| Power Factor | 1 | |||||
| Frequency | Mains mode:± 1%/± 2%/± 4%/± 5%/± 10% settable | |||||
| Battery mode: (50/60± 1%)Hz | ||||||
| Waveform | Sin Wave | |||||
| Crest Factor | 3:1 | |||||
| Input Current Harmonic Wave | ≤ 2% (100% linear load); ≤ 3% (100% non-linear load) | |||||
| Convert time | 0ms | |||||
| Efficiency | 96% | |||||
| Overload Capacity | 110% load: convert to bypss after 60 mins; 125% load: convert to bypass after 10 mins; 150% load: convert to bypass after 1min; | |||||
| Battery | 20 | |||||
| Battery Voltage | 30-50pcs optional, default 36pcs; Optional voltage: ±180Vdc/±192Vdc/±204Vdc/±216Vdc/±228Vdc/±240Vdc/ ±252Vdc/ ±264Vdc/ ±276dc/ ±288Vdc/ ±300Vdc; (30/32/34/36/38/40/42/44/46/48/50pcs of battery ) | |||||
| Environment | Operating Temperature | 0ºC-40ºC | ||||
| Storage Temperature | '-25-55ºC ( excluded battery) | |||||
| Humidity Range | 0-95% (non-condensing) | |||||
| Altitude | <1500m (derating if exceeding 1500m) | |||||
| Noise (1 meter distance) | <68dB | <70dB | ||||
| Other Functions | Protection Function | Short circuit,overload,over temperature,output overvoltage or undervoltage,battery undervoltage,fan fault alarm,bypass flow backward,anti-thunder | ||||
| Alarm Function | Mains abnormal,overload,UPS fault,battery undervoltage and other alarms | |||||
| Communicatioin Function | CAN,RS485,network port,dry contact port,parallel port,LBS port,Intelligent slot,temperature sensor port | |||||
| Physical Characteristic | Dimension (LxWxH) mm | Cabinet | 600x850x2000 | 1200x850x2000 | 1200x850x2000 | |
| Module | 440x620x130 | |||||
| Weight (Net Weight) kg | Cabinet | 260 | 280/600 | 645 | 720 | |
| Module | 36 | |||||
| Operative Standard | YD/T 2165-2010 | |||||
Company Profile
Certifications
Applications
Exhibition & Customer Visit
If any questions please contact our sales, and you are welcome to visit us anytime!
