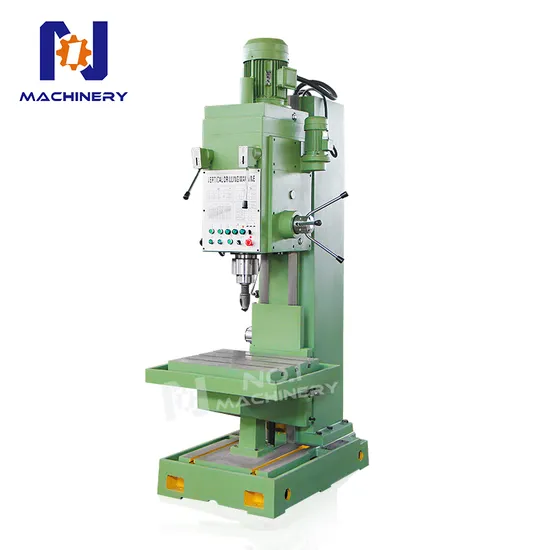

Z5180 Vertical Drilling Machine 80mm Hole Diameter Precision Drilling Equipment for Metalworking

Product Description

Product Description
Vertical drilling machineis a common metal processing machine tool. It is mainly used for drilling holes in workpieces. Its characteristic is that the drill shaft is arranged vertically. Workpieces are usually fixed on the workbench. By adjusting the position of the workbench, the drill bit and the processing position can be aligned. Compared with other drilling machines, its structure is relatively simple and it is suitable for processing small and medium-sized parts. It can drill holes of different diameters and depths and is widely used in the field of mechanical processing.
Specification

Name	Unit	Z5180
Maximum hole diameter	mm	80
Maximum feeding resistance	N	30000
Spindle Max Torque	N.m	1000
Spindle taper		Morse NO.6
Distance from spindle centerline to guide rail surface	mm	375
Spindle stroke	mm	250
Headstock stroke	mm	250
Spindle speed	r/min	40-570 9 steps
Feed rate	r/min	0.1-0.78 6 steps
Workbench stroke	mm	300
Work surface size	mm	650×550
Maximum distance from spindle end face to work table	mm	800
main motor power	kw	5.5
Cooling pump flow	L/min	25
Dimensions	mm	1452×965×2787
Machine weightv	kg	2500

Details Display
Integrated control panel
The control buttons are integrated into a control panel. The machine can be operated semi-automatically through an optimized circuit control unit.
Manual crank
The manual feed handle is retained. The processing can be precisely controlled. The spindle has an automatic retraction function. Whether you are drilling or tapping, the machine can quickly return to the origin.
Casting/Cooling
Purchase HT250 gray cast iron castings to ensure that the machine does not deform. More stable during processing. Cooling water pump + automatic lubricating oil pump. Easy daily maintenance.
