High Power Waterproof Wholesale Marine 4X4 Roof 24V Vehicle Trailer Truck 12volt Slim Offroad LED Light Bars

Product Description

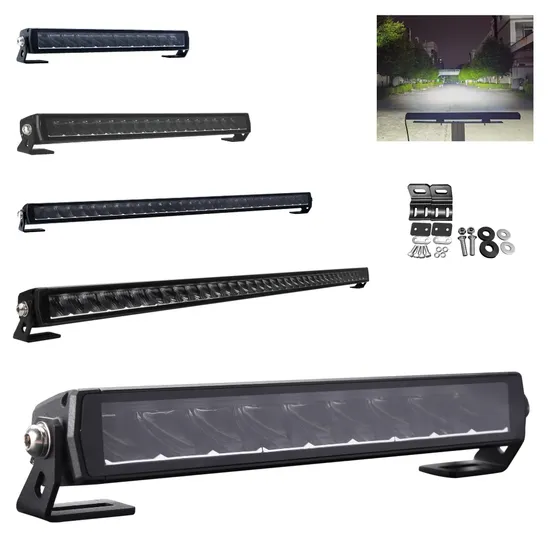

Product Description Ultra slim driving light bar series-BL1805S3 It is a hot selling super slim LED light bar. This series of light bar is our self-developed product. It's height is only 40.5mm, while it is with frameless cover. Dual mounting brackets provide more feasible installation for different vehicles. BL1805S3 With the most popular size 20inch, BL1805S3 has been very popular over the European countries over the past years. From the unique appearance, you will find that there is no screw on the surface for better anti-corrosion in humid environment.
The super slim housing makes it easy for installation. When mount this light into the grille and seeing in front of the car, it looks like a unity. Features *Housing: 6063 extruded Aluminum Heat-Sink *Integrated ETM Technology ( Electric thermal managment ) *Optic systemreflector facing technology (light transmittance>95%) *Deutsch Connector available *IP Rate:IP68&IP69K Waterproof *Life Time:50,000+ Hours life span *Deutsch Connector available *Approved by ECE R112/R10 SIZE BEAM PATTERN

Input Voltage	9-36V DC
Wattage	90W
Color Temp.	6500K
Raw Lumens	8100lm
Beam pattern	Spot beam/Combo beam
Intensity	1 lux @450m/424m
Reference No.	45
Available size	10inch/14inch/20inch/30inch/40inch
Dimension	20inch (520*40.5*52.5mm)
IP Rating	Comply with IP68, IP69K
Optic system	Side Reflector
LED	18pcs*5W LEDs
Connector	DT2
Life Span	50,000+ hours
Other Spec.	Integrated ETM Technology to extend life span
Certification	ECE R112, R10 / CE / RoHS

Beam Pattern Application Product packaging More About BRT FAQ
