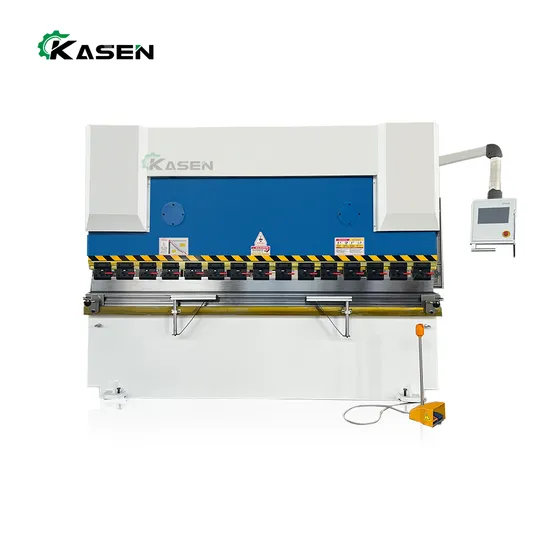

Wc67K-100X3200 China Cheap Price Hydraulic Press Brake Machine
Basic Info.
Model NO.
WC67K
Warranty
2-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel
Type
Press Brake
Core Components
Motor, PLC
CNC or Not
CNC Bender Machine
CNC Control System
Da53t System
Keyword
Hydraulic Bending Machine
Function
Sheet Metal Metal Bending
Width of Working Table (mm)
160 mm
Motor Power (Kw)
7.5 Kw
Throat Depth
260mm
Slider Stroke (mm)
100mm
Key Selling Points
Automatic
Workertable Lenght
3200mm
Power Supply
380V/50Hz/3pH or as Your Demand
Electrical Components
Schneider Electrical From French
Machine Color
as Your Demand
Bear
NSK, Japan
Transport Package
Plywood Box
Specification
1600*1000*1600mm
Trademark
Kasen
Origin
China
HS Code
8462230000
Production Capacity
100 Sets/Month
Product Description
Wc67K-100X3200 China Cheap Price Hydraulic Press Brake Machine Product DescriptionCNC Press Brake
The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
Main Configuration
DELEM DA53T CNC Controller Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm Front supporter bracket Germany Bosch Rexroth hydraulic valve block Germany EMB oil tube connector Germany Siemens main motor France Schneider elecrics Hydraulic & electrical overload protection Automatic Mechanical compensation Upper and lower dies(86°, R0.6mm, material: 42CrMo) Product Parameters
| Type | Nominal Force | Worktable Length | Poles Distance | Throat Depth | Stroke | Max Open | Pover | Dimension |
| KN | mm | mm | mm | mm | mm | KW | L*W*H(mm) | |
| 30T/1600 | 300 | 1600 | 1280 | 200 | 80 | 285 | 3 | 1600*1000*1600 |
| 35T/2000 | 350 | 2000 | 1480 | 200 | 80 | 285 | 4 | 2000*1100*1800 |
| 40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
| 40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
| 63T/2500 | 630 | 2500 | 1900 | 250 | 120 | 320 | 5.5 | 2500*1300*2210 |
| 63T/3200 | 630 | 3200 | 2500 | 250 | 120 | 320 | 5.5 | 3200*1300*2210 |
| 80T/2500 | 800 | 2500 | 1900 | 300 | 120 | 320 | 7.5 | 2500*1400*2300 |
| 80T/3200 | 800 | 3200 | 2500 | 320 | 120 | 350 | 7.5 | 3200*1500*2300 |
| 80T/4000 | 800 | 4000 | 3000 | 320 | 120 | 350 | 7.5 | 4000*1500*2400 |
| 100T/2500 | 1000 | 2500 | 1900 | 320 | 160 | 320 | 7.5 | 2500*1600*2400 |
| 100T/3200 | 1000 | 3200 | 2500 | 320 | 160 | 370 | 7.5 | 3200*1600*2600 |
| 100T/4000 | 1000 | 4000 | 3000 | 320 | 160 | 370 | 7.5 | 4000*1600*2700 |
| 125T/3200 | 1250 | 3200 | 2500 | 320 | 160 | 370 | 7.5 | 3200*1600*2700 |
| 125T/4000 | 1250 | 4000 | 3000 | 320 | 160 | 370 | 7.5 | 4000*1600*2700 |
| 160T/3200 | 1600 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
| 160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
| 160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
| 160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
| 200T/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
| 250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 460 | 18.5 | 3200*2000*3200 |
| 250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
| 250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
| 250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
| 300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 570 | 22 | 5100*2600*4000 |
| 300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 570 | 22 | 6100*2600*4200 |
| 300T/7000 | 3000 | 7000 | 5620 | 400 | 250 | 570 | 22 | 7100*2600*4400 |
| 320T/7000 | 3200 | 7000 | 5620 | 400 | 250 | 570 | 22 | 7100*2600*4400 |
| 350T/6000 | 3500 | 6000 | 5100 | 450 | 250 | 570 | 30 | 6100*2600*4200 |
| 350T/7000 | 3500 | 7000 | 5620 | 450 | 250 | 570 | 30 | 7100*2500*4500 |
| 400T/4000 | 4000 | 4000 | 3100 | 350 | 300 | 620 | 30 | 4100*2700*3800 |
