PE Water Tank Blow Molding/Moulding Machine (WR2000L-3)

Product Description

Full automatic blow molding machine IBC container molding machinery
Product Description
2000L four layer Blow Molding Machine
1.Adopt Siemens PLC,Siemens Touch Screen and MOOG to make the operation easy.
2.Adopt progressive hydraulic system by ourselves,easy to control.
3.Adopt inverter to control the clamping system,saving a lot of energy.
4.The technology of DIe Head is the same with Germany.
We are specializing in large blow moulding machine from 200-5000L, 1-5 layers,
1000L one-three layers blow moulding machine,
2000L One-three layers blow moulding machine.
This machine can produce civil barrel, IBC
Barrel, 220L double L-ring barrel, plastic tray for forklift, underground
Storage-shaped hollow products
Qingdao Weier Plastic Machinery Co., Ltd is specialized in producing full
Automatic, semi-automatic hollow blow moulding machine which suitable for
20L-5000L plastic round barrel, drum one ton square chemical barrels, double L ring
Chemical drums, plastic pallets, oil tank, and some other special use plastic
Products.
Configuration:

PARISION CONTROL THINCKNESS CONTROL	MOOG	JAPAN
PLC	SEIMENS	GERMANY
TEMPERATURE CONTROL MODULE	SEIMENS	GERMANY
SERVO VALVE & SERVO TRANSDUCER	MIRAN	ITALY
INVERTER	SEIMENS	GERMANY
HYDRAULIC OIL SEAL	DZ	TAIWAN
INTERMEDIATE RELAY	OMRON	JAPAN
PNEUMATIC VALVE	AIRTECH	TAIWAN
HYDRAULIC PUMP & VALVE	YUKEN	JAPAN
PNEUMATIC SWITCH & CONTACTOR	SEIMENS	GERMANY
HYDRAULIC MOTOR & SCREW MOTOR	SEIMENS	GERMANY
REDUCER	GUOMAO	CHINA

Specification

No		specifications	2000 Liter
		Model No.	4 layers
		Processing material	HDPE/HMWHDPE
1	Extruders	Gear Box Type	Hard surface
		Extruder Drive Motor (Inner)	55KW
		Extruder Drive Motor (Middle1)	55KW
		Extruder Drive Motor (Middle2)	55KW
		Extruder Drive Motor (Outer )	55KW
		Heating Load	100KW
2	Accumulator Die Head	Heating Load	85kw
		Parison Control Cylinder	400X40mm
		Die-Core size [ Min / Max]	420-560MM
		Inverter	Siemens
		Max. parison weight	52KG
3	Moulding Clamping Unit	CLAMPING PLATEN Size	1700X1800mm
		MAX MOLD SIZE	1600X 1900mm
		Mould Clamping Force	1800KN
		Mould Thickness	1010-1600
		Clamping Pull Bar	140mm
4	Stretching and Blowing Unit	Spreading stroke	400-800mm
		Vertical stroke max.	300mm
5	Electrical Control Panel	Thickness controller	100 points Moog
		Main Operation Panel	Siemens
		Die Head Control Temperature Control	Siemens
6	Hydraulic System	Hydraulic Drive motor (Main)	45KW
		Hydraulic Drive Motor (Parison Control)	7.5kw
		Oil Tank Capacity	1200L
7	Gripper	Gripped stroke	350mm
		Discharge Stroke	2200mm
8	Hopper Loader	Loader	800kg/H 4pcs
		Hopper	50kg 4pcs
9	Production rate	Productivity	12pcs/h
	of 1000 ltr.	Product Weight	18kg
10	Delivery period		5 months
11	Weight of Machine		42Ton
12	Size of Machine	[L xW xH ] (M)	12mx11mx6.5
13	Total power		425KW
14	Average power Comsumption		220KW

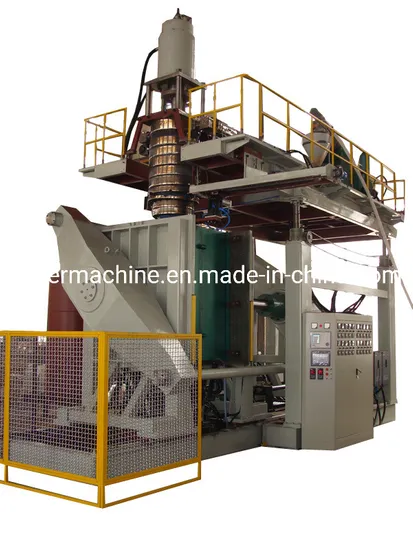

machine photos as below:
final products as below:
1)barrel:
2)IBC container
Auxiliary Machinery ( This is excluded in the machine price).

	ITEM	CAPACITY
1	AIR TANK RECEIVER	3 M³
2	AIR COMPRESSOR	18.5 KW
3	CHILLLER	3 HP
4	GRINDER	15 KW
5	MIXER	150 KG
6	COOLING TOWER	120 TON

OUTPUT FOR 2000 L BLOW MOLDING MACHINE:

Commodity	Output	Unit	Weight	Unit
500 L Mould	17	PC/H	9	KG
750 L Mould	15	PC/H	13	KG
1000 L Mould	12	PC/H	18	KG
1500 L Mould	9	PC/H	26	KG
2000 L Mould	8	PC/H	36	KG

DELIVERY TIME 4 months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting; INSTALLATION & ADJUSTMENT The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week(free of charge) in the Buyer's factory. After one week,if the Buyer still needs the training,$50 should be paid for the engineer.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
