Compact Travel Switch for Conveyor Belt Systems

Product Description

Product Paramenters

Product name	brand	Working temperature	Wiring section area	Mechanical life
Door Contact Switch	Janetec	-30ºC~70ºC	0.5-1.5mm²	>10 million times
Limit Switch-ZY Series	Janetec	-30ºC~80ºC	0.75-2.5mm²	>10 million times
Limit Switch-JY Series	Janetec	-25ºC~70ºC	0.5-1mm²	>10 million times
Travel Switch	Janetec	-25ºC~70ºC	0.5-1mm²	>10 million times
JY-AZ-17	Janetec	-30ºC~80ºC	0.75-1mm²	>10 million times

Door Contact Switch-JY Series
Wiring connection-M3.5 threaded terminalRated operational voltage(Ue)-230Vac,200VdcRated working current(In)-2AAgreed heating current(Ith)-4ARated insulation voltage(Ui)-500VDownward stroke/Operating Force-5mm/1.6±0.2NMaximum switching frequency-60times/minute Limit Switch ZY Series
Wiring connection-M20x1.5 sealing interfaceRated operational voltage(Ue)-Vac:250/400/600;Vdc:24/125/250
Rated working current(In)-6A/4A/1.2A;4A/0.55A/0.3ARated insulation voltage(Ui)-500V
Downward stroke/Operating Force-5000 times/hour
Rated impulse withstand voltage-6kv Limit Switch-JY 1370 Series

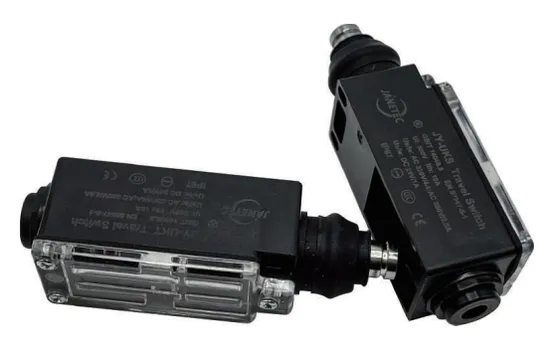

Wiring connection-M4 threaded terminal Rated operational voltage (Ue)-220/230Vav,220VdcRated working current (ln)-2AAgreed heating current (lth)-5ARated insulation voltage (Ui)-500VMaximum switching frequency-20times/minTravel Switch-JY-UKS/UKT Series
Wiring connection-M18 interfaceRated operational voltage (Ue)-Vac:220V/380V;Vdc:24VRated working current (ln)-4A/2.5A; 1AAgreed heating current (lth)-10ARated insulation voltage (Ui)-500VMechanical life - >1 million times JY-AZ 17 Series
Wiring connection-M16x1,5 sealinginterfaceRated operational voltage (Ue)-230Vac,24VdctRated working current (ln)-AC4A, DC4AAgreed heating current (lth)-4KVRated insulation voltage (Ui)-250VMaximum switching frequency-2000times/minMechanical life- >1million times
Package&ShippingPackage&Shipping
We are a factory engaged in production and assembly work.If there is stock available, we will immediately arrange shipment for you.
If you require a large output, please contact with us and confirm the delivery time.
Delivery
Cooperate with logistics companies to solve customers' freight troubles.Please feel free to contact us about your quantity and acceptable deliver way.We will try our best to give you a good shipping price. <30,000 pcs , within 3-5 days<100,000 pcs , within 7-15 daysFor more quantity requirements, please keep in touch with us to determine production and delivery time.Thank you.
Company Profile
Shanghai Janetec Electric Co., Ltd. was established in 2018, the company is located in Shanghai Jiading District Madong IndustrialPark. Is a focus on the Door Contact Switch, Limit Switch R & D, manufacturing and sales of high-tech enterprises and "SRDI"(Specialized, Refinement, Differential, Innovation) enterprises. It has deep knowledge and experience in the field of elevatorswitch, and is the benchmark enterprise in the industry.Shanghai Janetec Electric is ISO9001 and ISO14001 dual system management certification enterprises. Our company constantlydevelops new products, currently more than 90 products have obtained CCC, CE certification, some products have obtained TUV certification. In recent years, with strong technical strength, high-quality products, perfect quality control system, has maderapid development. So far, Our products have been widely served in a number of international well-known brand elevators, in the quality of customers fully recognized and trusted.
Exhibition
Certificate
FAQ
1. What's the lead time? A: According to the order quantity,big order need negotiation. If it's within our inventory, we can deliver goods within 3 days. 2.What's your advantage? A: We are an excellent manufacturer with strong capabilities, supplying for many well-known big brands. You can get some free samples before deciding use our product or not. We speak with strength and quality.
3.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time.Our factory is located in Jiading, Shanghai.
4.What kind of payment does your company support? A: T/T, Cash, Western Union are all accepted if you have other payment,please contact with us.
