Basic Info.
Automatic Grade
Automatic
Applicable Industries
Building Material Shops, Manufacturing Plant, Reta
Marketing Type
Ordinary Product
Core Components
Bearing, Motor
Applicable Material
PVC, Stainless Steel, UPVC
Key Selling Points
Easy to Operate
Application
Combine UPVC with Steel Linear by Screw
Screw Driver Diameter
Dia 3-Dia 5mm/13-19mm
Steel Linear Thickness
1-2mm
Screw Holes Pitch
Screw Holes Pitch
Specification
1200X500X1800mm
Production Capacity
50sets/Month
Product Description
Product descriptions from the supplier
Overview
Products Description

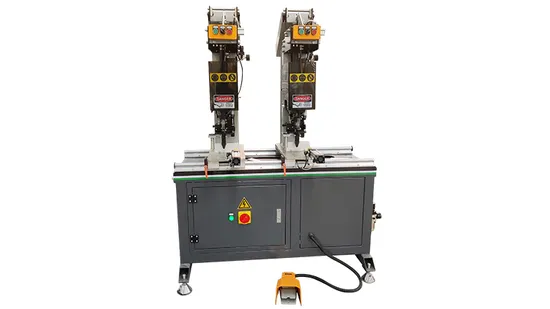

LDJ-2 two head automatic screw fastening machine PVC window profile screw driver automatic PVC steel liner Main Feature:
Used for PVC window profile steel liner fastening .1.PLC control system2.Consists of main body ,screw box ,feeding screw system ,separate screw part,screw fastening part.3.Full automatic , work down in 4 s.4.screw distance ,depth all adjustable.5.Four head can automatic distinguish profile different length ,to work automatic .6.Just need one worker can operate.Head number can be customized,one two three four all you need.
Main Techinical Parameters
Power supply
| 380V 50Hz
|
Total Power
| 0.5kw
|
Air pressure
| 0.6-0.8Mpa
|
Screw holes pitch
| 270 to 400mm
|
Profile height
| 30-130mm
|
Profile depth
| 32mm
|
screw diameter
| Φ3-Φ5mm/13-19mm
|
screw type
| cross recessed countersunk head screws
|
Steel liner thickness
| 1-2mm
|
Size
| 1200×500×1800mm
|
weight
| 270kg
|
Details Images
1. The machine is used for cutting of aluminum and pvc profile. 2. Two heads work independently or together. 3. Uniform speed feeding and smooth motion due to airdraulic damping cylinder 4. Hard alloy saw blade is used, so it makes efficiency and precision high.
1.This machine used for milling UPVC window door all kinds hardware mounting hole
2.Two separate part , horizontal three hole drilling and vertical irregularly-shaped hole copy milling , can work out same time .
3.Both milling cutter feeding manually . Also the milling depth can be adjusted in advance . Suit for different model profile .
4.The copy milling part , can custom-made milling shape template.
UPVC Profile Frame Window and Door Machine vinyl profile mullion cutting machine pvc profile cutting saw.upvc window machine
VJW-70A
V-typed Cutting Saw designed for PVC window profile V-typed cutting
Main Features
1.Simple operation
2. Working stable.
3. Machine Height can be adjusted.
Main Features
1 Used for high-end colorful(filmed type /transfer type/two-color extrusion type/spraying type)Upvc and common white Upvc type window door frame double surface cleaning welding.
2 Adjust the melt temperature/melt time/cooling time for different type profile.
3 Each head have two cleaning tools.To make the welding surface smooth,after welding,those tools automatic cleaning the welding surface.
4 Adopts PLC system,increase extra pinch device,to make welding stable.welding frame corner high strength.
SQJ04 CNC PVC welding corner seam cleaning machine for PVC window door/pvc window machine
