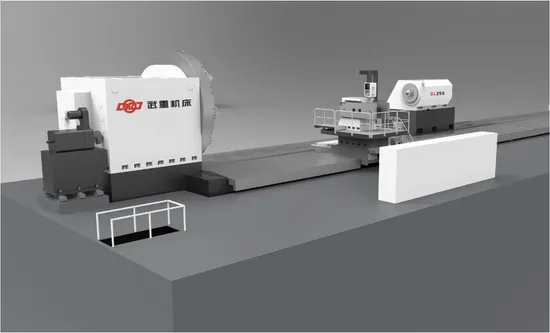

Dl Series CNC Heavy Duty Horizontal Lathe

Dl Series CNC Heavy Duty Horizontal Lathe

US$500,000.00-6,000,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DL105-DL325
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
ISO 9001
Condition
New
Working Condition
No Dust, No Harmful Gas/Liquid.
Temperature
5-40
Relative Moisture
Less Than 85%
Power Supply
415V/380 50Hz
Transport Package
Wood
Specification
iron
Trademark
WZ
Origin
China
HS Code
8458110000
Production Capacity
50

Product Description

APPLICATION
DL series CNC horizontal lathes are developed by WZ by introducing the design of the former SCHIESS of Dusseldorf, with hydrostatic bearing type headstock structure series adopt modular design, with advantages of heavy load, high precision, strong structure, wide application and convenient operation.
Besides basic performance, they can realize CNC automatic machining for cone and curve surfaces, steps, groove, and thread etc. Equipped with various attachments, it can realize milling, grinding, boring and drilling. They are suitable for industries of energy, transportation, metallurgy, aerospace, aviation and heavy duty machinery, such as machining rotor of steamer, cover band, generator, rotor of water turbine, mechanical shaft, r udder spin die, hoister and barrel of ship.
The main performance characteristics: Headstock spindle adopts high accuracy hydrostatic bearing at radial direction with load relief hydrostatic support; high accuracy double row thrust roller bearing at axial direction. Two step mechanic speed change. DC motor drive. Master and slave servo motors could be adopted for milling feeding and indexing; Tailstock adopts self-adapt mechanism of workpiece thermal elongation, load cell and teeth plate thrust device; Lengthwise and crosswise guideway of tool carriage adopts closed type hydrostatic guideway with constant flow. Lengthwise transmission adopts double rack and pinion mechanism for clearance elimination; crosswise transmission adopts double nut clearance elimination mechanism and ballscrew. KENNA heavy cutting toolholder is adopted at front of tool post Standard toolbar or quid change tool bit could be mounted on the toolholder; Optional attachments: Steady rest, milling tool carriage end-face tool carriage for drilling and turning grinding head, deep-hole boring system with large diameter, deep-hole drilling system with small diameter etc. CNC system as per selection: SIEMENS, FUNAC, REXROTH etc.
Main technical parameters:
Model
Item
DL105 DL125 DL160 DL180 DL210 DL250 DL325
Max. swing radius mm 1050 1250 1600 1800 2100 2500 3250
Max. machining dia. over carriage mm 1600 2000 2500 3000 3600 4200 5600
Max. loading capacity between centers T 80 125~200 125~200 125~350 125~350 320~500 320~500
Spindle torque kN.m 95 160-200 160-200 160-350 160-350 350-450 350-450
Spindle speed r/min 0.5-125 0.5-90 0.5-90 0.5-71 0.5-71 0.5-63 0.5-63
Main motor power kW 99 166-200 166-200 166-225 166-225 225-284 225-284

Detailed Photos
Workshop
Package
Installation and commissioning
