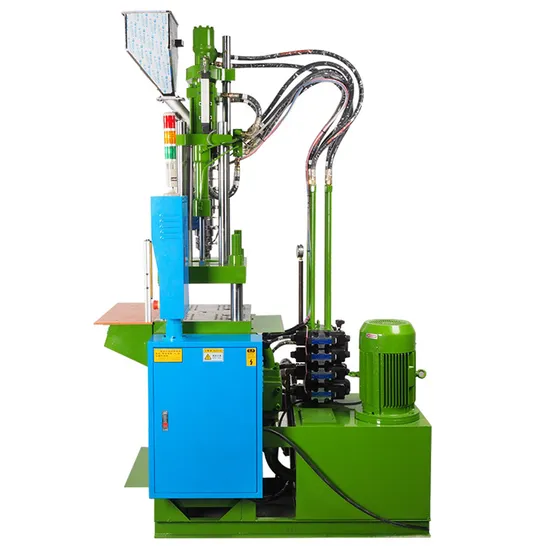

New Small Vertical Plastic Injection Molding Machine Making for AC DC Power Plug

New Small Vertical Plastic Injection Molding Machine Making for AC DC Power Plug

US$8,200.00 1 set (MOQ)

Basic Info.

Model NO.
JY-450ST
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Brand Name
Jieyang
Screw Diameter
30/32/34mm
Injection Pressure
1742/1531/1356 Kgf/Cm2
Injection Rate
53/60.3/72 Cm3/S
Vlotage
380V/220V-Three Phase-50Hz
Clamping Force
45t
Platen Size
550*39mm
Max.Open Daylight
350/450mm
Machine Weight
1.4t
Machine Diameter
1.18*1.07*2.17m
Transport Package
Standard Packaging
Specification
CE
Trademark
Jieyang
Origin
Dongguan, China
HS Code
8477101090
Production Capacity
200 Set/Month

Product Description

new small vertical plastic injection molding machine making for ac dc power plug
Here is Jieyang Brand machines company, we are a vertical plastic injection machine manufacturer.
This model we recommended has been a best seller for nearly few years.
We can provide machines to make above product and share you more details.
So you can quickly understand the performance of the machine, we will help you debug and lifetime maintenance services in advance, whenever you happen to me.
Our R&D team would help you to design a machine that meet your requiry.

Send me inquiry, We promise to give an additional six month free warranty.
Total 18 months warranty.
Parameter of Machine:
JY-450ST Technique specification
Model Units JY-450ST

Injection System





Screw Diameter mm Φ30 Φ32
Injection Pressure Kg/cm2 1742 1531
Theoretical Shot volume cm3 98.9 112.5
Max. Shot Weight(P.S) g 93.5 106.3
Injection Rate cm3/s 53
Max.Screw speed rpm 0-200
Temperature Control ZONE 3

Clamping System






Clamping Force T 45
Platen Size mm 550*390
Distance Between Tie Bare mm 410*250
Min Mold Height mm 150/250
Opening Stroke mm 200
Max. Open Daylight mm 350/450
Ejector Force T 1.75
Ejector stroke mm 35

Hydraulic System



Max. Hydraulic Pressure Kg/cm2 140
Pump Motor Power Kw 5.5
Barrel Heating Power Kw 3.4
Total Wattage Kw 9

Others


Machine Dimensions (L*W*H) m 1.18*1.07*2.17
Machine Weight T 1.4

Machine Feature:
1.- Our machine has Two(three)-phase temperature, ejected spped, backing pressure and screw speed is suitable for various plastic to confectioned.

2.- Vertical clamping and injection design, especially suitable for the insert molding production.

3.- Adopts the international brand component for keeping machine running stable, reliable and accurately.

4.- High-power motor ensures plasticizing capacity during working time.
5.- User-friendly LCD display which owns diverse languages system indicates various functions and working situation.
6.- Jieyang Brand vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.

Machines Details:
We can customize according to your requirements.
If you require any further information, feel free to contact me.

Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, connectors, cables,auto parts, Plug ,etc.
new small vertical plastic injection molding machine making for ac dc power plug
FAQ:
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

new small vertical plastic injection molding machine making for ac dc power plug
Welcome to inquiry us !
