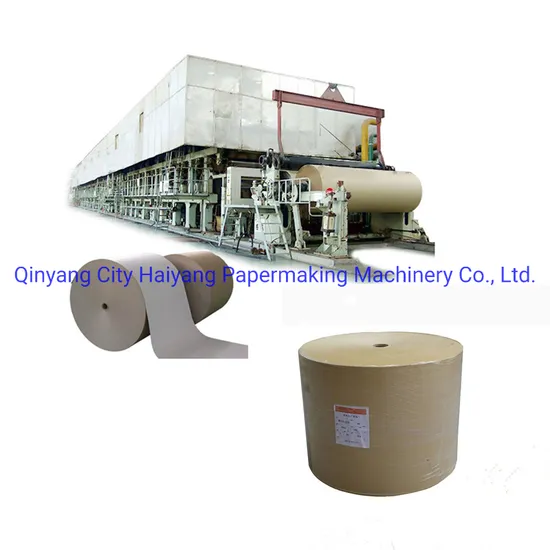

Fbb Paperboard Testliner Paper Facial Toilet Tissue Paper Kraft Paper Making Machine

Product Description

In general, the whole PM includes following sections:
1.Pulping equipment
2.Paper machinery
3.Boiler(Provide steam)
Technical Specifications
Raw Material: Waste Paper, Wood Pulp, Carton Paper,Wheat Straw,Rice Straw,Reed,Wood Chips, Cotton, Waste Paper,Bagasse, Bamboo
Product Variety: Kraft paper
Paper Width:2800mm
Quantitative:90-150g/cbm
Production Capacity: 80t/d
Design Speed: 300m/min
Working Speed: 160-300m/min
Rail Gauge: 3800mm
Transmission way: AC variable frequency,section drive
Arrangement: Single floor layout
Raw Material
Waste Paper, Wood Pulp, Carton Paper,Wheat Straw,Rice Straw,Reed,Wood Chips, Cotton, Waste Paper,Bagasse, Bamboo

Main Equipments
1.Brief introduction:
Net paper width is 2800mm, is mainly used for making high strength corrugated paper. The paper machine is mainly divided into the following parts: Headbox, Fourdrinier Wire Section, Press Section, Front Dryer Section, Beveled Surface Sizing Machine, Back Dryer Section, Reeling Section.
2.Headbox:
Air-cushion headbox, by controlling the gas pressure inside the headbox to control and stabilize the pulping pressure head.
3. Wire Section:
Single fourdrinier wire, the main components: breast roll, forming plate, dehydration board, vacuum box, vacuum couch roll,wire-driving rollers, wire-guiding roll and rack, etc, and equipped with a piece of forming wire.
4. Press Section:
It is divided into 1st press, 2nd press. 1st press is the press with large diameter roll with a vacuum suction roller,equipped with two coating metal rollers, and with upper felt and lower felt; 2nd press is large diameter roll, equipped with two coating metal rollers, and with upper felt and lower felt. 1st press, 2nd press are equipped with leading felt roller and felt suction box. 1st press, 2nd press pressurized way is oil hydraulic cylinder pressure.
5. Front Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, wire-guiding roll. Equipped with semi-enclosed gas hood.
6. Beveled Surface Sizing Machine:
Equipped with a surface chrome-plated metal roller, a coating metal roller. The surface sizing press machine pressurized way is corrugated tire pressure.
7. Back Dryer Section:
1800 dryer cylinder, group drive, each group with dryer wire, carrier roll. Equipped with semi-enclosed hood.
8. Reeling Section:
Pneumatic horizontal reeling machine.

Frequently Asked Questions
Q	Are you factory or trade company?
A	We are a professional supplier of paper - making machine, from design to production to delivery, we have many years experience, provide a complete set of services.
Q	Is OEM available?
A	Yes, welcome to deep cooperation.
Q	What's your quality guarantee?
A	Our machine reach ISO 9001 quality standard. We will be responsible for any quality problem.
Q	Can you contract the whole equipment installation and commissioning work?
A	Yes, We can contract the entire equipment work, after the delivery, you can directly put into production , do not need a second trial.

After-sales Service Highly inspecting equipment in every working procedure, quality comes first; Fast & Safe Delivery; Assisting our clients for foundation construction of equipments; Dispatching engineers to install and debug equipments; Training the first-line operators on site; Regularly visit clients to solve production problems; Providing life-long maintenance service; Providing technical exchanging;
