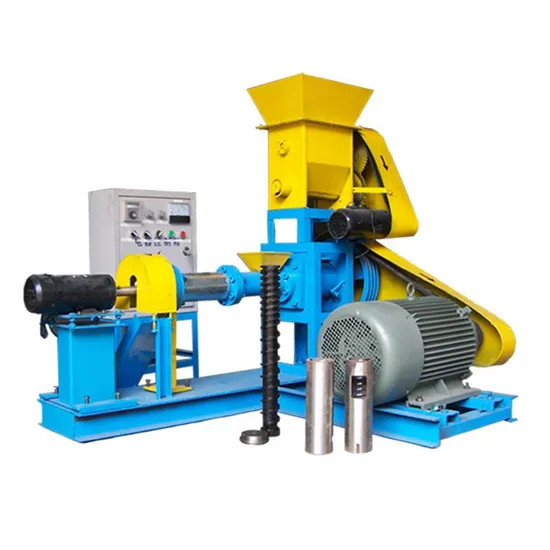

New Design Fish Feed Extruder Animal Feed Pellet Machine 500kg/H Cattle Feed Making Equipment Expanded Feed Production Line

Product Description

new design fish feed extruder animal feed pellet machine 500kg/h cattle feed making equipment expanded feed production line
Product Description:
We are mainly involved in manufacturing and sales of feed processing machines.Our main products are pig feed extruder, corn puffing machine, soybean puffing machine, rice puffing machine and floating fish feed production line.The company's products have been exported to Russia, Vietnam, the Philippines, Mexico, Bangladesh, Mozambique, Egypt, Kenya, Uganda,Zambia, Nigeria, Ethiopia, Benin, South Africa and other countries have been widely praised by users.
Different Models Feed Extruders:
Expanded Feed Production Line:
Expanded Feed Products Display:
Technical Parameters of Feed Extruders:

Model	Capacity	Screw Diameter	Main Power	Feeding Power	Cutting Power
HL50	60-80kg/h	50mm	11kw	0.4kw	0.4kw
HL60	120-150kg/h	60mm	15kw	0.4kw	0.4kw
HL80	300-350kg/h	80mm	22kw	0.4kw	1.1kw
HL90	400-450kg/h	90mm	37kw	0.6kw	1.5kw
HL120	500-700kg/h	120mm	55kw	1.1kw	2.2kw
HL135	800-1000kg/h	135mm	75kw	1.1kw	2.2kw
HL160	1200-1500kg/h	160mm	90kw	1.5kw	2.2kw

Expanded Fish Feed Production Process:
1.Crusher
The crusher machine is mainly used for grinding the raw materials like soybean,maize etc.
2.Mixer
The mixer machine is mainly be used to mix all kinds of raw material evenly, such as wheat meal, corn meal,sorghum meal,bone meal,meat meal and so on,it also can mix other micro- ingredients such as vitamins, amino acids, trace elements and other feed additives.
3.Fish feed pellet machine
The machine is widely used for process all kinds of grains into high-grade aquatic floating feed pellet for fish,catfish,shrimps,crab.
4.Pellet dryer
The dryer can lower the temperature and moisture content of the feed pellet.
5.Pellet cooler
The cooler is adopting the counter-flow cooling principle,it can reduce the high temperature and moisture content,for large capacity fish feed production line,this is an necessary machine.For small capacity,the pellet can cool naturally.
6.Oil spray machine
The oil spray machine is use to spray oil onto the surface of the feed pellet.First the smell can attract the fish to eat the pellet.Second it is better for storage.
7.Packing machine
The packing machine can packing the finished feed pellet into bags,and 1-50kg per bag,thus it is more convenient for storage and transport.The process including filling,weighing,sealing.
