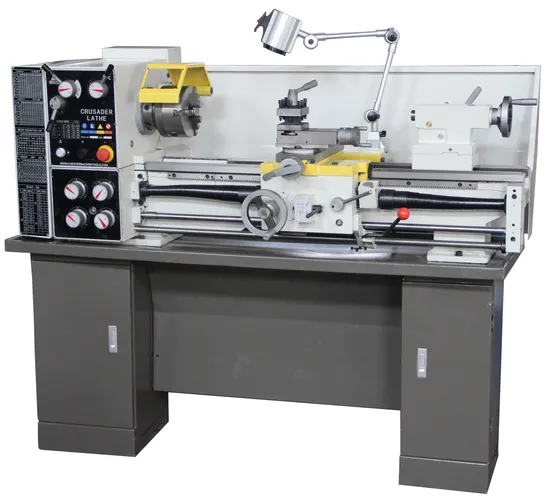

Mechanical Lathe Machine Price with Three Jaw Chuck (CQ6230A)
| US$2,000.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CQ6230A
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
4-Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max.Swing Over Bed
310mm
Max.Swing Over Cross Slide
180mm
Max. Swing Over Gap
450mm
Distance Between Centers
750mm/910mm/1000mm
Width of Bed
181mm
Spindle Bore
38mm
Range of Spindle Speeds
65-1810(1400)Rpm
Taper of Tailstock
M.T.#3
Max. Travel of Top Slide
75mm
Transport Package
Fumigated Ply Woodecase: Packingsize: 22PCS/20gp
Specification
CE; ISO9001
Trademark
UNITECH
Origin
China
HS Code
84589900
Production Capacity
150 Sets / Month
Product Description
Mechanical Lathe Machine Price with Three Jaw Chuck (CQ6230A)Feature:
> Precision ground and supersonic frequency hardened bed ways.
> The spindle is supported with precision roller bearing.
> Headstock gears are made of high quality steel, ground and hardened
> Removable gap is provided for larger diameter work
> Easy operating gear box has various feeds and thread cutting function
ModelCQ6230A
Max. Swing over bedΦ 310mm
Max. Swing over cross slideΦ 180mm
Max. Swing over gapΦ 450mm
Distance between centers750mm/910mm/1000mm
Width of bed181mm
Spindle boreΦ 38mm
Taper of spindle boreM. T. 5
Range of spindle speeds65-1810(1400)rpm
Taper of tailstockM. T. #3
Metric threads can be cut0.4-7mm
Inch threads can be cut4-60 T. P. I.
Range of longitudinal feeds0.0527-1.2912mm/rev
Range of cross feeds0.011-0.276mm/rev
Max. Travel of cross slide130mm
Max. Travel of top slide75mm
Max. Travel of tailstock quill100mm
Motor power1.1KW. 3PH/1.5KW. 1PH
Standard accessories: 3 Jaw chuck(Φ 160mm), Change Gears Set, M. T. #3 Dead Centers, M. T. #5/3 Reduction Sleeve, Oil gun, Splash Guard, Foot stands, Tool Box&Tools, Oil Tray
Optional accessories: 4 Jaw chuck(Φ 200mm), Face Plate, Steady Rest, Follow Rest, Work Light, Foot Brake System, Coolant System, Live Center, Drill Chuck+Drill Arbor, Leadscrew Guard, Chuck Guard, Localizer, Clutch For Feed Rod, Quick Change Tool Post, Digital Readout(2 Axis)
| Model | CQ6230A |
| Max.swing over bed | Φ310mm |
| Max.swing over cross slide | Φ180mm |
| Max. swing over gap | Φ450mm |
| Distance between centers | 750mm/910mm/1000mm |
| Width of bed | 181mm |
| Spindle bore | Φ38mm |
| Taper of spindle bore | M.T.5 |
| Range of spindle speeds | 65-1810(1400)rpm |
| Taper of tailstock | M.T.#3 |
| Metric threads can be cut | 0.4-7mm |
| Inch threads can be cut | 4-60 T.P.I. |
| Range of longitudinal feeds | 0.0527-1.2912mm/rev |
| Range of cross feeds | 0.011-0.276mm/rev |
| Max. travel of cross slide | 130mm |
| Max. travel of top slide | 75mm |
| Max. travel of tailstock quill | 100mm |
| Motor power | 1.1KW.3PH/1.5KW.1PH |
| Standard accessories: | Optional accessories: |
| 3 Jaw chuck(Φ160mm) | 4 Jaw chuck(Φ200mm) |
| Change Gears Set | Face Plate |
| M.T.#3 Dead Centers | Steady Rest |
| M.T.#5/3 Reduction Sleeve | Follow Rest |
| Oil gun | Work Light |
| Splash Guard | Foot Brake System |
| Foot stands | Coolant System |
| Tool Box&Tools | Live Center |
| Oil Tray | Drill Chuck+Drill Arbor |
| Leadscrew Guard | |
| Chuck Guard | |
| Localizer | |
| Clutch For Feed Rod | |
| Quick Change Tool Post | |
| Digital Readout(2 Axis) |
