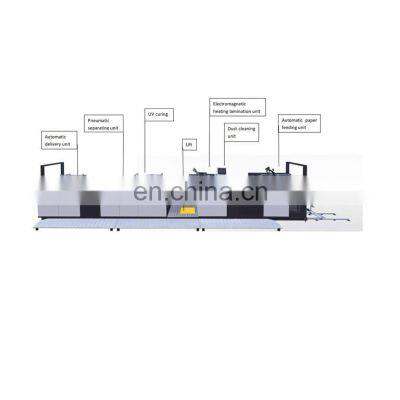

thermal film laminating machine with UV dryer and dust cleaning unit

Product Description

Product Description
Product DescriptionThis model suit for BOPP film, we have newest model with PET chain knife system. This is optional. Chain Cutter System applying BOPP, PET, PVC film, ModelYFMA- 850YFMA-1050YFMA- 1200Max Paper Size 850x1020mm1050x1020mm1200x1020mmMin Paper Size 270x240mm290x290mm300x300mmPaper Range 105-500g/m2105-500g/m2105-500g/m2Laminating Speed 0-80m/min0-80m/min0-80m/minGross Power 30kw35KW35kwTotal Weight 7500kgs8000kg8500kgsOverall Dimensions 8600x1800x2000mm8600x2000x2000mm8600*2200*2000mmDetailed ImagesAutomatic paper feeding unit(1) Adopt oil-free vacuum air pump suction system; (2) High-speed offset printing feeder (12,000 sheets/hour) ensures high-speed and stable operation! (3) Stepless frequency conversion speed regulation paper feeding (4) The paper feeding table of the production line is positioned and conveyed by vacuum suction to ensure smooth, tidy and stable conveying. (5) The upper and lower limit protection devices of the feeding table; manual rapid lifting; (6) The paper feeding table automatically replenishes the paper feeding system; (7) Attached double sheet controller: double or multiple sheet feeding detection and shutdown system: use the induction of the safety voltage detector to detect double or multiple sheets of paper;Front lay and side layThe servo motor controls the front lay and the feeder to synchronize, and the cam mechanism precisely controls to ensure the value of the edge covering.The servo-controlled side lay is synchronized with the feeder, and the cam mechanism precisely controls the side pull to ensure that the side edges of the paper are aligned.Dust cleaning unitThe hot roller and scraper mechanism effectively removes dust on the surface of the paper and enhances the brightness and fit of the paper.Electromagnetic heater unitIt adopts the international advanced electromagnetic heating control technology, which has the characteristics of fast heating speed and easy temperature control. Loading and unloading unitAir shaft equiped with clutch device can adjust film release extension and speed.Anti-warping devicePrevent the paper from warping due to film shrinkage, ensure the paper is flat and has the characteristics of easy adjustment and no shaking.UV curingUV curing is carried out after lamination, without delamination or foaming.Pneumatic slitting systemEquipped with flying knife, pneumatic punching device, photoelectric detection, need to adjust the cutting position according to the size of the paper, high-speed automatic cutting.Automatic delivery systemThe automatic paper delivery system is equipped with a fan-cooled paper pressing structure, which can perfectly deliver the paper under the high-speed operation of the machine, ensuring that the paper is delivered neatly.(1) The belt has low-noise delivery, and the upper and lower rails are designed to ensure smooth delivery;(2) The thin paper coating is prone to curling, and the vacuum suction paper stabilizer device keeps the paper stable;(3) The delivery table can be raised and lowered manually;(4) The upper and lower limit protection devices of the delivery table;(5) The automatic lowering device of the delivery table, and the delivery limit paper stop and alarm system;(6) Automatic coating paper cumulative count;Related ProductsCertificationsFAQWarranty.We supply oversea after services. Machine with one year free guarantee, if it is our quality problem we will prepaid and sent by international courier. (DHL, FEDEX, UPS, TNT). Delivery Terms*Machine's within 7~25 days after agreement. but we have some model prepared. Welcome OEM producing.* Film would have some standard specification in stock. Most of time produce according to requirement.Payment Terms*T/T 100%(30% deposit, 70% should be paid before delivery.)*L/C ( Negotiate)*D/P Allow for up 3 Years agent.*SPD BANK and CITY BANK *Online Payment: VISA,mastercard,e-checking,etc.ServiceYour inquiry will be replied within 12 hours and online service is available all the time.Well-trained & professional salesmen are here ready to answer all your questions and handle the problems.Good after-sale service offered, please get back if you have any questions
