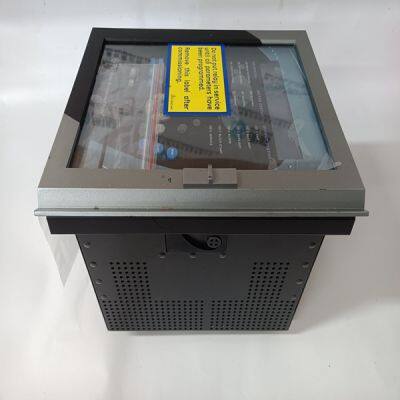

SR469-P5-HI-A20-E

Product Details

Product Description

Product Description
Brand: GE
Type:SR469-P5-HI-A20-E
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
MOUNTING THE DRIVE The S200 drives are designed for operation in a cabinet using the following installation instructions: Mount the drives vertically inside a cabinet on a flat, solid, electrically conductive mounting surface that is connected to PE (Protective Earth Ground) and capable of supporting the weight of the unit. Provide a good connection to PE. Remove the paint on the mounting surface over an area extending at least 12 mm (0.5 in) from the mounting bolts to achieve good electrical connection over a large area between the drive and grounded mounting surface. Ensure that the environment within the cabinet meets the requirements listed in the Specifications.
J1 – AC INPUT DRIVE POWER The S200 AC input drives are capable of direct line operation. All units are fully isolated and do not require external isolation transformers. The inrush current on the connection to the line is internally limited to a safe level for the drive. There are no voltage selection or ranging switches required to operate within the specified voltage input ranges. The S200 series drives are functionally compatible with all standard forms of three phase AC lines: Grounded neutral WYE Open-Delta Grounded Leg TEE NOTE The customer is responsible for supplying the appropriate fuses or circuit breakers in the J1 AC motor power lines to comply with local electrical codes. The control input power required is between 5 and 10 watts. The AC input motor power depends on output power and losses in the power stage. CAUTION Appendix G – Regulatory Information of this manual contains additional information needed to ensure regulatory compliance. On AC input drives with peak current<18 Arms, J1 is a 9 pin pluggable connector (shown below). On larger AC input drives connections are to fixed terminal block TB1 that needs no mating connector. See wiring diagrams for full connection details. Pin Description J1-1 PE (Protective Earth) J1-2 REGEN J1-3 -BUS J1-4 +BUS J1-5 C2 CTRL VAC J1-6 C1 CTRL VAC J1-7 L3 240 VAC J1-8 L2 240/120 VAC J1 Connector view from front of drive. J1-9 L1 240/120 VAC Mating Connector Information for S20260, S20250, S20360, S20560, S20660 Screw Terminal Connector 12 – 24 AWG Wire Range, Phoenix MSTB2,5/9-STF-5,08-BK OR Spring Cage Clamp Connector 12 – 24 AWG Wire Range, Phoenix FKC 2,5/9-SFT-5,08-BK OR Crimp Connector Crimp Shell 14-20 AWG Wire Range, Phoenix MSTBC 2,5/9-STZF-5,08-BK Crimp Contact 14-16 AWG Wire Range, Phoenix MSTBC-MT 1,5-2,5 Crimp Contact 18-20 AWG Wire Range, Phoenix MSTBC-MT 0,5-1,0 Refer to http://www.phoenixcon.com
