Geyue Gy-Zmfseries Intelligent Combined Low-Voltage Power Capacitor Compensation Device (Split-phase Compensation)

Product Description

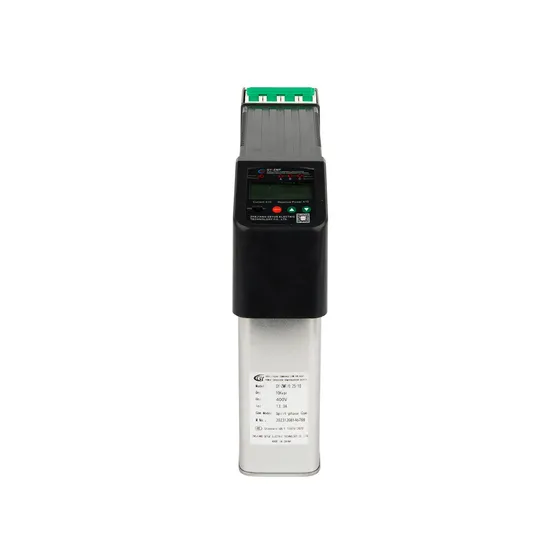

GEYUE GY-ZMF Series Intelligent Combined Low-voltage Power Capacitor Compensation Device (Split-phase Compensation)
Product Description
GY-ZM series intelligent low-voltage power capacitors are self-healing low-voltage power capacitors as the main body, using the latest technology achievements such as DSP hardware and software technology, sensing technology, network technology and electrical manufacturing technology, which are integrated and intelligentized to realize the capacitor's crossing-zero switching in a precise phase-control way. The product integrates two working modes of self-control and control, two cutting modes of split-phase and three-phase, and can automatically realize step-by-step cutting through communication or cascade. In addition, the product also has three-phase over-current under-voltage, over-voltage, temperature and other protection functions and current, voltage, active, reactive power, power factor, frequency and other measurement functions, to achieve a major breakthrough in the technology and realization of low-voltage reactive power automatic compensation, but also access to low-voltage distribution automation of the back of the integrated system in order to comprehensive management; can be flexibly applied to a variety of occasions of low-voltage reactive power compensation, changing the existing low-voltage reactive power compensation equipment structure mode, with automated programmed compensation. It can be flexibly applied to various occasions of low-voltage reactive power compensation, changing the structure mode of existing low-voltage reactive power compensation devices, and has the advantages of high automation program, low power consumption, stable and reliable performance, easy to use, longer service life, and high cost-effectiveness.
Our company's products experience the scientific research results of power transmission and distribution, with complete independent intellectual property rights, the products are protected by national patents. This product passed the power industry reactive power compensation complete set of device quality inspection and testing center test.
Detailed Photos
Product Parameters
Model Implications (Nonanti-harmonic)
Technical Data (Nonanti-harmonic)

Compensation Mode	Capacity (kvar)	Model/ Specification	Shell Height	Remark
3-phase Compensation	40	GY-ZMG/0.45-40	330mm	20+20
	30	GY-ZMG/0.45-30	330mm	20+10
	20	GY-ZMG/0.45-20	260mm	10+10
	15	GY-ZMG/0.45-15	260mm	10+5
	10	GY-ZMG/0.45-10	230mm	5+5
Split-phase Compensation	30	GY-ZMF/0.25-30	260mm
	20	GY-ZMF/0.25-20	260mm
	10	GY-ZMF/0.25-10	230mm
	5	GY-ZMF/0.25-5	230mm

Certifications
We are TUV certifed (TUV Report No.MICASI2331994)and CCC certified enterprise(CCC Certification No. A069544). Our company have passed IS09001 Quality System certification, ISO14001 Environment Management System Certification and ISO45001 Occupational Health and Safety Management System Certification. We produce high-quality products in conformity with the JB/T, GB/T, and IEC standards.
Packaging & Shipping
We normally do EXW, FCA and FOB. In some special cases, we can also go DDU and DDP.
1) Express delivery, door to door service.
2) By air freight, to the designated airport of the destination country.
3) By sea, FCL , LCL, etc...
Company Profile
Business Slogan:
Smart electric technology empowers the future.
Business Philosophy:
Scientific and technological innovation, people orientation.
Core Value Code:
Passion, Inclusion, Innovation, Customer Success.
Mission:
To leverage the latest power technology and experts in related fields to make electricity more efficient and sustainable.
Vision:
A suitable and livable world through electrical engineering solutions.
Mission, vision and values together, they map out our horizon and direction. We focus on them and endeavor to accomplish them...
Zhejiang Geyue Electric Technology Co., Ltd., established in July 2011, is an enterprise specializing in the production, processing and sales of high and low voltage capacitors. We are one of the largest professional capacitor manufacturers in China. The company has a registered capital of 10 million yuan, with a standardized factory of more than 10,000 square meters and a large number of professionally trained technical workers. We also have a technical research and development team composed of a number of senior engineers, which has unique advantages in the research and development of new products. Our company is a member of CES's(China Electrotechnical Society's)Power Capacitor Committee. We have fully automatic production equipment and production process synchronized with the famous international companies in the same industry.
Since the establishment of the company, adhere to the business philosophy of "scientific and technological innovation, people orientation", in line with pragmatic and rigorous work style, always take the customer as the focus of attention; Based on exquisite workmanship and complete testing equipment, the products have been qualified by Chinese National Power Capacitor Quality Supervision and Inspection Center. Our company took the lead in the industry to pass IS09001 Quality System certification, ISO14001 Environment Management System Certification and ISO45001 Occupational Health and Safety Management System Certification. Our products have successively obtained CCC, CQC, TUV Product Quality Certifications. Our products are exported to more than 20 overseas countries and regions such as Europe, North America, South America, Southeast Asia and etc., enjoying the increasing recognition and trust of users.
Our company currently produces various organic dielectric capacitors and other supporting products. The main products are: power capacitors, switchover electrical contactors, automatic reactive power compensators, compound switches, and reactors. The products are widely used in aerospace, aviation, science and technology, railroad electric locomotive system, laser power supply, mining drilling equipment, medium and high-frequency equipment, medical equipment, power grid power compensation, high-level audio equipment, household electrical appliances, industrial automation equipment, instrumentation and other fields.
Welcome friends at home and abroad work together to create brilliant!
FAQ
Q1-Could you tell me what are your advantages please?
1) We have 13 years of manufacturing experience since 2011.
2) We are an OBM manufacturer, we also provide ODM and OEM services at the same time.
2) Our products are mainly exported to the Southeast Asia, EU and USA markets.
3) We produce high-quality products in conformity with the JB/T, GB/T, and IEC standards.
4) We possess technical experts and services supporting for the EPC projects and project tendering.
Q2-How long is the lead time please?
It depends on the complexity of the order:
1) 3 weeks after payment for a standard order
2) Within 1 week after payment for a standard sample order.
(Sample fee will be refunded after formal order)
Q3-Could I know the remittance route please?
1) Standard order could be paid by T/T.
2) Small order payment could be supported by Paypal and Global Pay.
Q4-Any suggestion for the delivery please?
We normally do EXW, FCA and FOB. In some special cases, we can also go DDU and DDP.
1) Express delivery, door to door service.
2) By air freight, to the designated airport of the destination country.
3) By sea, FCL , LCL, etc...
Q5-Any support or service for after sales please?
1) Standard quality guarantee is 18 months.
2) 24 hours online manual service for assistance and emergency.
