Automatic Digital Penetrometer 0-450 Penetration

Product Description

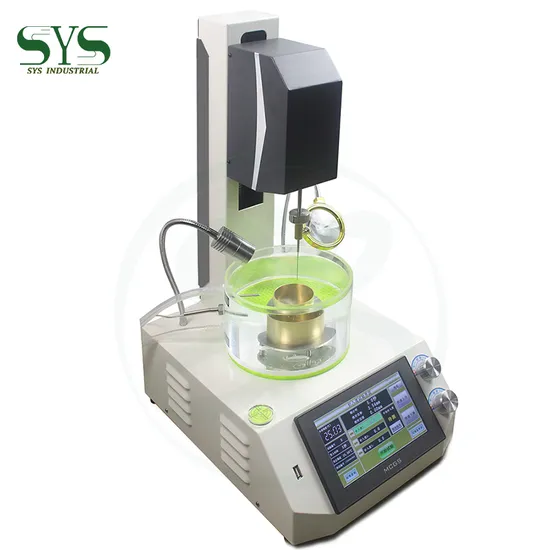

Automatic Asphalt Penetrometer
Model: SYS-1000P (Built in constant temperature water bath)
Application and scope of application SYS-1000P Automatic Asphalt Penetrometer is based on the standard of the people's Republic of China GB / T 4509-1998 / 2010 petroleum asphalt penetration test method, and the transportation industry standard of the people's Republic of China JTG According to the technical requirements and relevant regulations of T0604-2011 asphalt penetration test in E20-2011 test specification for asphalt and asphalt mixture of highway engineering, it is an innovative patent product with independent knowledge.
This instrument is mainly used to measure the penetration of road petroleum asphalt, modified asphalt and residue after evaporation of liquid petroleum asphalt or emulsified asphalt, and automatically calculate the penetration related value of asphalt with formula method. The standard test conditions are as follows:
The dish containing the asphalt sample is placed in a constant temperature bath of 25 ºC± 0.1 ºC, and the standard needle assembly with a total mass of 100 ± 0.05g falls vertically without friction. The depth of vertical penetration into the asphalt sample within 5 seconds is called asphalt penetration to reflect the viscosity of asphalt. The greater the penetration of asphalt, the smaller the viscosity of asphalt, the softer the asphalt.
The instrument can also be used for the inspection of solid particles, powders, colloids, frozen bodies and other materials, as well as the inspection of food raw materials such as cheese, sugar gum, butter, malt jelly, cream and fermented body. It can be widely used in food industry, traffic highway engineering and other industrial departments. Main structure and characteristics

NO.	Technical Parameter	Technical Index
1	Measuring Range	0~450 Penetration
2	Constant temperature water bath	1. [temperature range] 0.00 ~ 99.99 ºC; 2. [temperature control range] low temperature: 20 ºC lower than ambient temperature; high temperature: 60.00 ºC; 3. [display resolution] 0.01 ºC; 4. [temperature control accuracy] ≤± 0.1 ºC;
3	Time Control	1. [time display and control] 0-60 seconds (arbitrary setting); 2. [display resolution] 0.1 second; 3. [time control precision] ≤± 0.1 s;
4	Displacement	High precision LVDT displacement sensor and split structure are adopted, and there is no friction when the needle rod falls. 1. [range] 0-50mm; 2. [display resolution] 0.01mm (0.1 penetration); 3. [relative displacement accuracy] ≤± 0.1 mm;
5	Store Data	200 group
6	Standard Needle	2.5g±0.05g;
7	Dimensions	390mm×310mm×575mm;
8	Working Power Supply	220±10%VAC/50Hz;
9	Total Power	350W;
10	Weight	12.5Kg;

(1)Structure of penetration meter
System composition: the instrument is mainly composed of chassis bracket, touch display, screw lifting system, constant temperature control system, needle connecting rod assembly, displacement measurement system, etc.
(2)Constant temperature water bath
The instrument is internally integrated with constant temperature water bath, with constant temperature control function of refrigeration and heating.
Packing list and materials for test (1)Packing list

NO.	Name		Number	Remarks
1	SYS-1000P Automatic Asphalt Penetrometer		1
2	Plexiglass sink (thermostatic bath)		1	Built in water pump and temperature sensor
3	Silicone gasket		1	Φ180mm Anti skid and heat insulation of basin
4	Standard needle		3	2.5g±0.05g
5	Pin connecting rod		1
6	Weights		1	50g±0.05g
7	Sample dish	Φ55×H35(small)	1	Standard configuration
		Φ70×H45(big)	1	Options
		Φ55×H70(specill)	1	Options
8	Triangle bracket		1
9	Desktop micro printer		1	Options
