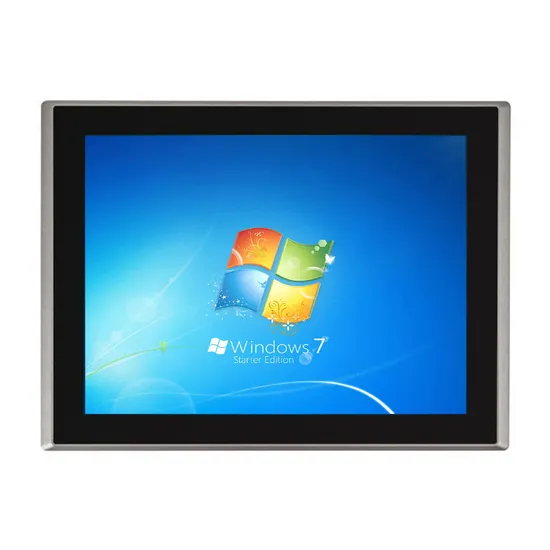

Factory Price 15 Inch Embedded All in One Panel PC Touch Full HD Touch Screen PC
| US$272.00-398.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC15
Certification
EMC, FCC, ROHS, CE
Stylus Support
Yes
Battery life
0
Voice Assistant
No
Special Features
Media Card Reader
CPU Core
Quad-Core
CPU Type
Intel Celeron J1900
Drive interface
Usb 3.0
Charging Interface
DC
Battery Capacity
No battery
Hard Disk Capacity
≥128G
Memory
4GB
Network Mode
WiFi
Operating System
Windows
Card Reader
Without Card Reader
Built-in Bluetooth
Without Bluetooth
Built-in Microphone
Without Microphone
Fingerprint
Without Fingerprint
Display Resolution
1024*768
Screen Size
15"
Screen Type
Capacitive Screen
Rear Camera Pixel
Without Camera
Front Camera Pixel
Without Camera
Webcam
Without Webcam
Touchscreen Type
Project Capacitive Touch
IP Grade
Front Panel IP65
Temperature Range
-20 to 60 Celsius
Transport Package
Carton
Specification
53x47x18cm/pcs
Trademark
Sihovision
Origin
China
HS Code
8471414000
Production Capacity
5000piece/Month
Product Description
Sihovision Capacitive Touch Screen Computer: Experience the quintessential 15-Inch Fanless Industrial HMI Panel PC that stands as a beacon of technological elegance and efficiency.
Detailed Photos
Features:
1. Cordless motherboard design: Step into the future with our sleek, high-end industrial panel PC, offering unmatched efficiency and functionality.
2. Fully enclosed design: Secure your operations with a dustproof PC, ensuring a pristine internal environment for superior performance.
3. Aluminum alloy shell: Embrace durability and style with a seamless design, front panel IP65 waterproof rating, and an integrated heat sink that ensures outstanding heat dissipation.
4. Rubber waterproof ring: Enhance protection with a sophisticated waterproof seal on the back, safeguarding your device against the elements.
5. Industrial LCD panel: Experience the clarity of a wide viewing angle, high-brightness display, and true color rendition for unparalleled visual performance.
6. Multi-points PCAP touch panel: Engage with our high-sensitive, fast-response touch interface, fortified by 2mm tempered glass for ultimate vandal-proof assurance.
7. Wide voltage and shock-proof design: Operate with confidence on a 9V-36V range, featuring a 3 Pin Phoenix terminal for robust shock resistance.
8. High-performance motherboard: Trust in continuous, 24/7 operation with a motherboard engineered for relentless efficiency.
| PC | |
| CPU | Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.4 GHz, 2MB Cache, Fanless |
| CPU optional | Intel® Core, I5-4278U, 2 Cores, 4 Threads, Base 2.6 GHz, Turbo 3.1 GHz, 3MB Cache, Fanless |
| CPU optional | Intel® Core, I7-4578U, 2 Cores, 4 Threads, Base 1.8 GHz, Turbo 3.0 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-6260U, 2 Cores, 4 Threads, Base 1.8 GHz, Turbo 2.9 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-6360U, 2 Cores, 4 Threads, Base 2.6 GHz, Turbo 3.1 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-7267U, 2 Cores, 4 Threads, Base 3.1 GHz, Turbo 3.5 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-7360U, 2 Cores, 4 Threads, Base 2.3 GHz, Turbo 3.6 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I7-7560U, 2 Cores, 4 Threads, Base 2.4 GHz, Turbo 3.8 GHz, 4MB Cache, Fanless |
| CPU optional | Intel® Core, I5-8250U, 4 Cores, 8 Threads, Base 1.6 GHz, Turbo 3.4 GHz, 6MB Cache, Fanless |
| CPU optional | Intel® Core, I7-8550U, 4 Cores, 8 Threads, Base 1.8 GHz, Turbo 4.0 GHz, 8MB Cache, Fanless |
| Memory | J1900: Onboard DDR3 4G RAM Core 4gen of i5/i7: DDR3 SODIMM x1(Max 8G RAM) Core 6/7/8gen of i5/i7: DDR4 SODIMM x1(Max 16G RAM) |
| Storage | 1x MSATA 1 x SATA(2.5' SATA) 1xM.2 (Core only) |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB, 512G, 1TB, 2TB |
| HDD: 500GB, 1TB, 2TB, 4TB | |
| Network | 2x GbE RJ45 Intel®i211-AT |
| Wireless Network | WIFI&Bluetooth And 4G LTE Module Optional |
| I/O Interface | J1900: 3xUSB 2.0, 1xUSB 3.0 Core 4/6/7/8 gen: 4x USB3.0 |
| 2x DB-9 COM1& COM2, RS232/422/485 | |
| 2x3 wire COM3 & COM4 RS232/485 Phoenix terminal, 2x3 wire COM5 & COM6 RS232 | |
| 1xPhoenix terminal remote switch interface | |
| 1x AT/ATX switch | |
| 1x HDMI/Audio Line-out/ Power Button | |
| 1x 14 bit GPIO optional | |
| 2x 8Ω 1W Amplifier out optional | |
| Expansion slot | MINI-PCIE x 1, on board SIM card slot, support 3G/4G module |
| MINI-PCIE x 1, support WIFI/ Bluetooth | |
| Watchdog timer | 1~255 second Programmable Setting |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touchscreen Type | Project Capacitive Touch (10 points) |
| Surface Hardness | 7H |
| Touch options | (5 wire resistive touch optional) |
| Power Supply | |
| Working voltage | 9V-36V wide voltage |
| Material | Aluminum Alloy |
| IP grade | Front panel IP65 waterproof |
| Temperature Range | Operating: -20 to 60°C, storage: -30 to 70°C |
| Accessories | Power adapter, power cord, embedded screws, 2.5-inch hard drive holder |
| Warranty | 2 years warranty |
| Certificate | CE, FCC, RoHS |
Certifications
Company Profile
FAQ
Sihovision is based in China to support global marketing and we are looking for local distributors as our long term partners,Welcome to contact us!
