Metal Scrap Electrical Aluminum Copper Wire Cable Plastic Separator Removing Crimping Stripping Peeling Recycling Grinding Granulator Machine

Product Description

Scrap Metal Electrical Aluminum Copper Wire Cable Plastic Separator Crimping Stripping Peeling Recycling Grinding Granulator Machine
Application of Copper Wire Granulator:
Copper granulator can process various kinds of scrap wires and cables, such as automotive wires, communication cables and other miscellaneous wires and cables with the suitable diameter of less than 20mm, single conductor with diameter of 0.2-0.3mm is best.
Description:

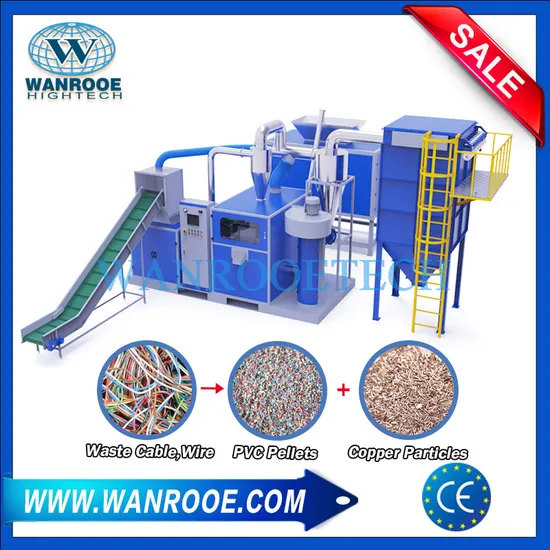

PNCR copper cable granulator adopts advanced design, rational structure and reliable operation. The characteristics of the production line can not only deal with thick wires which the normal crusher can process, but also the very thin wire has good separation effect. The present production line by feeding conveyor belt, heavy duty crushing machine, feeding blower, vibrating screen, pulse dust collector, hydraulic Station and electrical control cabinet and other components.
The waste cables or wires will become plastic pellets and copper particles after been crushed. The mixed will jump and move ahead like wave type on the vibrating screen mesh surface. With airflow function and screen box straight shock excitation, the sheath and core will be separated, and get copper particles, plastic pellets and mixture from different outlet areas.
Each step is controlled by the PLC program, started and stopped by one button. The operation interface video display the working condition of the important parts, and intelligent display the equipment failure.The max. diameter of scrap cable is 60mm. It is easy to operation and maintenance, the separation purity can reach 99% with single copper core of diameter ≥0.2mm and the input capacity around 300-500 kg/hr.
Features of Copper Wire Granulator :
1. Novel design, compact structure, saving space, mounted on a common base, easy to move.
2. Manual feeding material for one time, adopting electricity control panel to control the whole system, stable performance.
3. Minimum copper recycling rate can reach 99%.
4. Equipped with dust collector, no dust pollution.
5. Adopting air and vibration separation, no water pollution.
6. The voltage can be customized according to your requirements.
How Does the Cable Granulator Work?
After feeding scrap wires and cables into the recycling machine, they are chopped by the chopper to have plastic pieces and copper granules, which are then sent to be separated by airflow and vibration. Copper granules come out of the machine from the front outlet and plastic pieces from the back outlet. Dust is collected by dust collector.

Model	Crusher Power(Kw)	Feeding Blower Power(Kw)	Vibration Separator Power(Kw)	Pulse Dust Removing Device Power(Kw)
PNCR-300	15	3	3	5.5
PNCR-400	37	3	5.86	5.5
PNCR-500	45	3	7	5.5

Customer Feedback:
Our Service:
1. One-year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
