S Type Steel Agricultural Chain
| US$1.20 | 100 Meters (MOQ) |
Basic Info.
Model NO.
S32, S42, S45, S51, etc
Transport Package
Plastic Bag+Carton Box+Plywood Case
Specification
S32, S42
Trademark
made-to-order
Origin
China
HS Code
7315119000
Production Capacity
60000meters/Month
Product Description

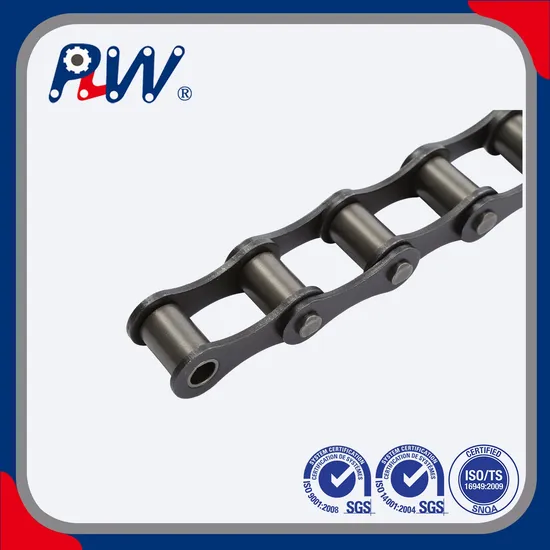

S Type Steel Agricultural Chain Product Description1. Material: Alloy steel & Stainless steel
2. Surface treatment: Shot peening / Zinc-plated / Nickel-plated / Dacromet-plated
3. Application: These chains are widely used in the rice harvester, combine harvester, drill and other agricultural machinery.
4. Characteristic: Chain plate hole finally passed ball extrusion to ensure maximum fatigue resistance, parts of shot peening treatment makes the chain and the sleeve have a higher fatigue strength.
| Product name | S type steel agricultural chain |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, etc | |
| 3. OEM according to your request | |
| Surface Treatment | Shot peening, Polishing, Oxygenation, Blackening, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Application | Agricultural machine |
| Design criterion | ISO DIN ANSI & Customer's Drawing |
| Size | Customer's Drawing & ISO standard |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, best service, competitive price, fast delivery |
| Delivery Time | 20 days for samples. 45 days for official order. |
| CHAIN NO. | P | b1 | G | F | W | h4 | d4 | K | h2 |
| Cadena No | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| S32K1 | 29.21 | 15.88 | 15.0 | 42.9 | 61.0 | 8.6 | 5.3 | 6.9 | 13.2 |
| S32K1F1 | 29.21 | 15.88 | 15.0 | 42.9 | 61.0 | 8.6 | 6.5 | 8.1 | 13.2 |
| S42K1 | 34.93 | 19.05 | 17.5 | 54.0 | 74.9 | 14.0 | 8.3 | 11.5 | 19.8 |
| S45K1 | 41.40 | 22.23 | 22.0 | 54.0 | 75.0 | 11.4 | 8.5 | 11.7 | 17.3 |
| S51K1 | 38.10 | 16.00 | 19.0 | 49.8 | 71.5 | 11.4 | 8.3 | 9.9 | 17.3 |
| S52K1 | 38.10 | 22.23 | 19.0 | 58.8 | 78.0 | 11.4 | 8.3 | 9.9 | 17.3 |
| S52K1F1 | 38.10 | 22.23 | 19.0 | 58.8 | 78.0 | 11.4 | 6.6 | 8.2 | 17.3 |
| S55K1 | 41.40 | 22.23 | 22.0 | 54.0 | 75.0 | 11.4 | 8.5 | 11.7 | 17.3 |
| S55K1F1 | 41.40 | 22.23 | 22.0 | 54.0 | 75.0 | 11.4 | 6.5 | 9.5 | 17.3 |
| S55HK1 | 41.40 | 22.23 | 34.0 | 52.7 | 82.0 | 13.4 | 8.4 | 11.4 | 20.4 |
| S62K1 | 41.91 | 26.20 | 22.0 | 66.8 | 95.4 | 11.4 | 8.3 | 14.7 | 17.3 |
| S62A2K1 | 41.91 | 26.20 | 22.0 | 66.7 | 95.5 | 12.6 | 8.3 | 14.7 | 17.3 |
| S62F2K1 | 41.91 | 26.20 | 22.0 | 66.8 | 95.4 | 11.4 | 6.5 | 13.0 | 17.3 |
| S62F5A2K1 | 41.91 | 26.20 | 22.0 | 66.7 | 95.5 | 12.6 | 8.3 | 14.7 | 16.7 |
| S77K1 | 58.34 | 22.23 | 25.0 | 76.2 | 102.0 | 20.8 | 8.3 | 11.5 | 26.2 |
| S88K1 | 66.27 | 28.58 | 22.0 | 97.0 | 119.4 | 20.8 | 8.3 | 9.9 | 26.2 |
| S51HF1K1 | 38.10 | 16.00 | 34.0 | 52.4 | 84.5 | 13.0 | 8.3 | 9.9 | 21.0 |
| S88F2K1 | 66.27 | 28.58 | 22.0 | 97.0 | 119.4 | 20.8 | 8.3 | 9.9 | 26.2 |
| S42A1F2 | 34.93 | 19.05 | 23.6 | 54.0 | 75.0 | 14.0 | 6.9 | 10.1 | 19.8 |
| S42F2A1 | 34.93 | 19.05 | 17.5 | 54.0 | 75.0 | 14.0 | 8.3 | 11.5 | 19.8 |
| S88F3K1 | 66.27 | 28.58 | 30.0 | 97.7 | 120.0 | 20.5 | 8.3 | 9.9 | 26.2 |
