UFO Shape Model Suspension Installation High Bay Lights

Product Description

Reliable OEM/ODM Manufacturer for Outdoor Lighting Fixtures
When innovation becomes sustainable
HB-05 is an LED Lighting for suspension installation on a steel cable. The overhead lighting system is in fact the perfect solution for illuminating spaces with high ceilings. The perfect solution for high bay lighting with high energy efficiency.
Suspended urban and high bay lighting
HB-05 is part of the HB(High Bay) series, a complete system designed for a wide range of pole-top, bracket and suspension applications.

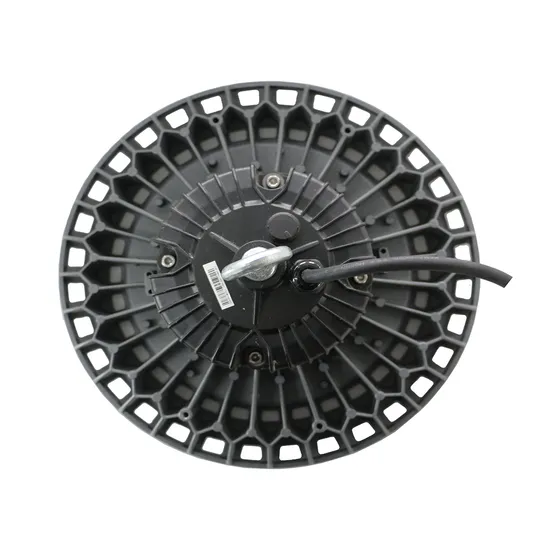

UFO LED High Bay Light YAHB-05 Housing
Nice-looking UFO, very popular inthe market,3 types of bean angle for option.
Material: Die casting body+PC lens
IP66 CE ROHS
Product Specification

Product Code	YAHB-05-100	YAHB-05-150	YAHB-05-200
Input Wattage	100W	150W	200W
Color Temperature	3000-6500K	3000-6500K	3000-6500K
Light Angle	60°/90°/120°	60o/90°/120°	60°/90°/120°
Luminous Flux	12000-14000 lm	18000-19600 lm	24000-28000lm
Input Voltage	AC90-305V	AC90-305V	AC90-305V
Frequency Range	50/60HZ	50/60HZ	50/60HZ
Power Factor	PF≥0.95	PF≥0.95	PF≥0.95
Color rendering index	Ra70-80	Ra70-80	Ra70-80
Temperature of Working Condition	-40-50°C	-40-50°C	-40-50°C
Humidity of Working Condition	10%-90%RH	10%-90%RH	10%-90%RH
LED Lifetime	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66
Net Weight	3.5kgs	4.8kgs	6.5kgs
Gross Weight	4.5kgs	5.8kgs	7.5kgs
Packing Size(mm)	295x295x165	355x355x165	415x415x175

Product Size.

Product Code	YAHB-05-100	YAHB-05-150	YAHB-05-200
A (mm)	Φ282	Φ342	Φ403
B (mm)	115	119	128
C (mm)	48	52	58

What is High Bay Lighting ? And what benefits of using high bay lighting ?
Whenever a large indoor space needs to be illuminated, high bay lighting is usually appropriate. Consider spaces like manufacturing facilities, gymnasiums, warehouses, large scale stores, factories, and more; these facilities are typically vast and cover a lot of vertical as well as horizontal space. This requires powerful lighting to provide the appropriate foot-candle levels to adequately illuminate. High bay lighting fixtures typically hang from the ceiling via hooks, chains, or pendants, or they may be fixed to the ceiling directly .
Various industries and facilities require high bay lighting. Some of the most common are:
Warehouses
Urban areas
Tunnels
Industrial facilities
Factory facilities
Indoor sports facilities
School stadium and university gymnasiums
Municipal facilities like community centers or recreation centers
Department stores
large scale retailer
Why choose Die Casting Man High Bay Lighting ?
Decreased maintenance requirements.
Thanks to the recent technology upgrades, reaches and exceeds 100,000 hours ,or over 20 years operation . LED lights have a lifespan that is four to forty times longer than many conventional bulbs. This means fewer replacements for bulbs ,translates into high maintenance savings ,as periodic replacement of the lamps is no longer necessary .
Increase the energy saving.
The average savings obtained using LED lighting is approx 93% compared to incandescent lamps -90% compared to halogen lamps -70% compared to metal halide lamp - 66% compared to fluorescent lamps .
Excellent color rendering
3000 -6500K LED high bay lighting allows motorists to identify the presence of
Pedestrians and obstacles more easily and at greater distances than other color temperatures .
Energy savings
High efficiency
By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
Green Light
Eco-friendly lighting
With LED technology ,in addition to energy consumption , you reduce carbon dioxide emissions . In addition , the optic of our products also reduce light pollution, illuminating efficiency only where necessary . Detailed Photos
Streetlight Requirements - 5 Years Warranty Product

S.No	Requirement	Requirement	Test Standard
Physical requirements
1	Housing type	Heavy-duty rugged pressure die-cast aluminium alloy	ISO 3522
2	Cover	Tempered Glass
3	Gasket	Silicon Rubber gasket
4	Housing wattage range	30W 40W 50W 60W 80W 100W 150W 200W 220W 240W
5	Socket Options	NEMA socket, Photocell, Smart controller, Shorting Cap
6	Stainless-steel components	Minimum 316L Grade 316L
7	IP Protection	IP66	IEC 60529
8	IK Protection	IK08	IEC 62262
9	Tool free opening	Tool-free access to gear compartment
10	Corrosion tests in artificial atmospheres - Salt spray tests	EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours	EN/ISO 9227
11	Vibration test	ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration	ANSI C136.31
LED and Optics
1	LED Make	Osram/CREE
2	LED Type	>2W High power LED with ceramic base (3V - Single chip die) >2w
3	LED driving current	<750ma<>
4	LED life	>100,000 hours @L95	LM80 and TM21
5	Optics Material	UV PC
6	Lighting distributions	Type I, II, III, IV
Thermal Requirements
1	Product ambient temperature range	-40°C to 55°C
2	Product Storage temperature range	up to 85°C
3	LED Case temperature (Tc)	<75°c>	UL1598
4	Driver Case temperature range	<85°c>	UL1598
Performance
1	Input Voltage Range	110V 120V 220V 270 305VAC - 50/60Hz	IEC 60598-2-3
2	Power Factor	>0.90	IEC 60598-2-3
3	THD	<20%<>	IEC 60598-2-3
4	Surge Protection	10KV
5	Dimming	1-10V or 1-10V+DALI
6	Appliance class	Class I or Class II	IEC 60598-2-3
7	CCT	3000K/4000K/5700K	ANSI C78.377A
8	CRI	>70Ra	ANSI C78.377A
9	MacAdam	<3 step="" binning="">	ANSI C78.377A
10	Product life	>100,000 hours @L80	TM28
11	Lumen efficacy As per LM-79	≥ 160lm/W (25°C ambient temperature)	LM-79
12	Lumen efficacy As per LM-82	Not more than 5% difference form LM79 result	LM-82
13	LED module connector and wire joint connectors	UL approved	IEC 60598-2-3
14	Electrical wires between Driver and LED modules and NEMA socket and driver	Must be UL approved	IEC 60598-2-3

<750ma<><75°c><85°c><20%<><3 step="" binning="">
Company Profile Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.
We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products
with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries.
Also we fully understand high quality is another important element for long term business development. We keep it in mind that
products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories
and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
FAQ

1	what are your MOQ requirements	1-5 pieces for samples. 100MOQ for mass production. For your first order we can accept small quantity.
2	what about the LED Chips?	We can use the led chip that you required.
3	What about the LED driver?	We use any brand that you required.
4	What is your main product ?	Die-casting Man supply design, tooling, die-casting injection, machinning, painting, assembling and testing service for street light and OEM die casting products.
5	Guarantee of your product?	We offer 5 year guarantee for our customer. 50000 hours and 5 year guanrantee
6	Doea your fixture pass New EPR and Harmonics	Yes we are
7	Surge Protect	atleast 4kV for L-N and 6kV N/L-PE depends on which brand of drvier that you use.
8	Are you able to sell empty house	Yes we sell empty house
9	Do you have a body with easy plug and play module and driver installation	Yes, I suggest out type YASL-19 to you. Please see attached catalog page.
10	Can I put logo on the house?	Yes you can. We have two options. First option screen printing your logo on the house, no MOQ required. Second die casting logo on the house, MOQ 1000 pieces each item. There will be additional cost for both screen printing and die casting logo.
11	If I have some defective goods, what will you do?	If occasionally defective goods, we will send you free replacement with your next order. If defective rate >1%, We will send you free replacement components like driver, SPD, PCB with leds. We will not cover the freight and maintaining cost in your country.
12	what services can you provide?	Accepted Delivery Terms: FOB,CIF,EXW; Accepted Payment Currency:USD,EUR,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,PayPal; Language Spoken:English,Chinese,Japanese
13	how can we guarantee quality?	Always a pre-production sample before mass production; Always final Inspection before shipment;
