UV Variable Data Industrial Inkjet Printer

Product Description

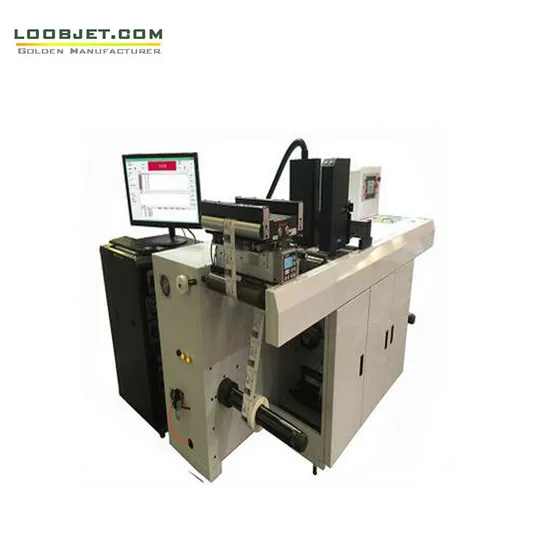

UV inkjet printer label press
Introduction
LOOBJET UV DOD inkjet system adopts industrial piezoelectric on-demand inkjet technology,has greatly improved in production speed, spray printing quality. Equipped with industrial high-resolution and high-speed DOD piezoelectric print heads, Venus meets the increasing and rigorous demands for the applications of mailings, barcodes, bills, checks, packages, and marking.
Is suitable for web printing, sheet-fed, and both online and offline target printing. As a fully integrated digital inkjet printing system, it can be easily integrated into existing transport systems thanks to its modular design to create more value-added opportunities.

Details
Equipment:LOOBJET UVJET.
Nozzle type:Ricoh GEN5/Kyocera108 or Konica 1024i industrial piezoelectric nozzle.
The normal life of the nozzle:more than 3 years,10billion printing times.
Single Nozzle print width:54/72/108 mm base on your requirements.
Printing unit number:1 ~ 24 groups can be extended,seamless joint.
DPI:Physics 600 dpi printing precision.
Card linear speed:70 ~ 180 m/min.
Inks:Imported environmentally friendly UV or water-based inks.
Suitable for all kinds of paper, plastics, PVC/PP/PE film,etc printing materials

Our Software
Our Printer Control Software (PCS) installed on a PC is designed for scanning inkjet printing. It offers a user-friendly interface to interactively control the printer, monitor printer status, and set printer options, such as the amplitude and pulse width of jetting waveforms and the temperature for each print head.
The control interface features include database checking, data settings, DPI settings,motor speed settings, and print head settings, etc.
Variable Data Printing Software
Supporting several types of objects, such as text, dates, times, graphics, logos, serial numbers, barcodes, Windows Fonts, and database photo images.
Supporting to load data source file, including .CSV, .XLS, .XLSX, .TXT and PDF file. After loading, all the records in the source file will be displayed in the data field and you are able to select the field and bind it to the objects.
Any directions you can edit by yourself.


Varied Image Files Supported
Multiple Languages Supported,such as English, Espanol, Deutsch, French, Portugal, Russian, Simplified Chinese and Traditional Chinese.

The Print Heads
(Different materials.different UVS solutions.Also different Ricoh G5 54mm,Kyocera 108mm,Konica 1024i 72mm you can choose)

Model	VDG540/VDK720/KY108	Print Head	Rico GN5/Konica 1024i/KY
Print Head	From Japan	Resolution	600×600,400,300,200dpi
Single heads width	54.0mm/72.0mm/108mm	Printing Speed	180m/min (600×200dpi) 130min/min (600×300dpi) 100m/min (600×400dpi) 91m/min (600×500dpi 75m/min (600×600dpi)
Max.Width	54/72/108mm×24 Seamless Joint	Method	Piezoelect ink-jet
Structure	Online Printing	Drop Size	5-21PL
Inks	Original SGS UV Inks	Software	VDG540 software
System	Windows 7	Port	Gigabit Ethernet interface , support real-time printing
Bar code	UPCA,UPCE,EAN8,EAN13,EAN128,CODE25, CODE39,CODE128,PDF417,QR,DATAMATRIX	Files Format	MSExcel,TXT files,PDF,BMP
Power	AC 200~240V/50~60Hz	Environmental	0ºC~30ºC,Humidity requirement:50~80%
