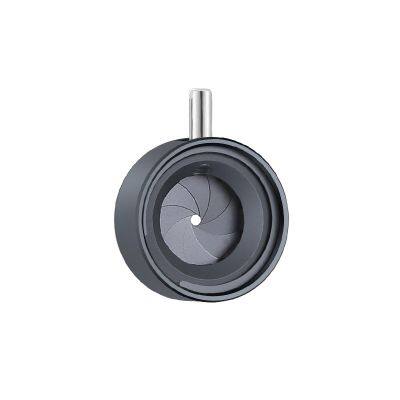

0.5~7.5mm Manual focus iris for vari-focal mechanical vision lens SLR camera lens follow spotlight
Product Details
Product Details
Product Description
Product Description| Technical parameters of manual iris | |||||||
| No. | Model No. | Aperture Hole Diameter(mm) | Diameter (mm) | Thickness (mm) | Blade Q'ty (pcs) | Lever Length (mm) | |
| Min. | Max. | ||||||
| 1 | 01-004-004 | 0.35 | 8.2 | 23 | 3.5 | 8 | |
| 2 | 01-004-007 | 0 | 7.2 | 32 | 3.5 | 5 | 5 |
| 3 | 01-004-010 | 1.3 | 20 | 32 | 3.8 | 10 | 5.6 |
| 4 | 09-004-001 | 0.8 | 6 | 13 | 6 | 8 | |
| 5 | 09-004-002 | 0.5 | 7.5 | 14 | 5.5 | 8 | 4.5 |
| 6 | 09-004-003 | 0.8 | 8 | 14.8 | 4.5 | 8 | 6.5 |
| 7 | 09-004-004 | 0.8 | 9.5 | 16.4 | 4.1 | 8 | 5.5 |
| 8 | 09-004-005 | 1 | 10.4 | 22 | 7.1 | 9 | 4.5 |
| 9 | 09-004-006 | 0.5 | 10.6 | 20.5 | 6.7 | 9 | |
| 10 | 09-004-007 | 0 | 11.8 | 23.2 | 3.5 | 6 | 9 |
| 11 | 09-004-008 | 1 | 12 | 19.8 | 5 | 10 | 4.5 |
| 12 | 09-004-009 | 1 | 14 | 26.3/23.8 | 2.2-4 | 10 | 8 |
| 13 | 09-004-010 | 0.5 | 15 | 28 | 9 | 12 | 8 |
| 14 | 09-004-011 | 1 | 16 | 26 | 4.8 | 10 | 8 |
| 15 | 09-004-012 | 1.5 | 17 | 32.5 | 6 | 10 | 5.5 |
| 16 | 09-004-013 | 1 | 18 | 30 | 4.9 | 10 | 6 |
| 17 | 09-004-014 | 1 | 18 | 28 | 5 | 12 | 6.5 |
| 18 | 09-004-015 | 4.5 | 18 | 34 | 3.1 | 10 | 10 |
| 19 | 09-004-016 | 1.5 | 18.7 | 31 | 4 | 10 | |
| 20 | 09-004-017 | 1.5 | 18.7 | 32.5 | 6 | 7 | 5.5 |
| 21 | 09-004-018 | 1 | 18.9 | 31.3 | 4 | 10 | 7 |
| 22 | 09-004-019 | 1 | 20 | 30 | 5.5 | 12 | 15 |
| 23 | 09-004-020 | 1.8 | 22 | 41 | 3.3 | 11 | 12 |
| 24 | 09-004-021 | 1.5 | 23 | 37 | 7 | 12 | 10 |
| 25 | 09-004-022 | 1.5 | 25 | 37 | 7 | 14 | 6.5 |
| 26 | 09-004-023 | 1.5 | 26 | 38 | 6 | 14 | 5 |
| 27 | 09-004-024 | 2 | 28 | 50 | 16.8 | 12 | |
| 28 | 09-004-025 | 1 | 29 | 44 | 6 | 10 | 5 |
| 29 | 09-004-026 | 2 | 29 | 51.8 | 4.8 | 11 | 12 |
| 30 | 09-004-027 | 1.5 | 33 | 53 | 6 | 12 | 5.5 |
| 31 | 09-004-028 | 1.5 | 34 | 49 | 5.6 | 14 | 15 |
| 32 | 09-004-029 | 1.5 | 36 | 50 | 6 | 18 | 7.5 |
| 33 | 09-004-030 | 2.5 | 36 | 56 | 6 | 14 | 15 |
| 34 | 09-004-031 | 1.5 | 37 | 53 | 6 | 16 | 15.5 |
| 35 | 09-004-032 | 2.5 | 42 | 58 | 6.5 | 18 | 24 |
| 36 | 09-004-033 | 2 | 44 | 60 | 6 | 16 | 6.5 |
| 37 | 09-004-034 | 2 | 50 | 76.5 | 7.1 | 11 | 7.5 |
| 38 | 09-004-035 | 2 | 50 | 92 | 12.2 | 11 | |
| 39 | 09-004-036 | 2 | 50 | 70 | 7.8 | 16 | |
| 40 | 09-004-037 | 3 | 52 | 73 | 8 | 14 | 18 |
| 41 | 09-004-038 | 4 | 60 | 82 | 8 | 18 | 22 |
| 42 | 09-004-039 | 0.3 | 6 | 13 | 6 | 8 | 6.5 |
| 43 | 09-004-040 | 1 | 11 | 20.5 | 6.7 | 10 | 8.5 |
| 44 | 09-004-041 | 0.5 | 7.5 | Holder 23 | Holder 6.5 | 8 | 4.5 |
| 45 | 09-004-042 | 1 | 12 | Holder 27 | Holder 8 | 8 | 4.5 |
| 46 | 09-004-043 | 1 | 18 | Holder 36 | Holder 7 | 10 | 6 |
| 47 | 09-004-044 | 1 | 20 | Holder 36 | Holder 7 | 12 | 15 |
| 48 | 09-004-045 | 1.5 | 23 | Holder 44 | Holder 8 | 12 | 10 |
| 49 | 09-004-046 | 1.5 | 25 | Holder 44 | Holder 8 | 14 | 6.5 |
| 50 | 09-004-047 | 1.5 | 34 | Holder 55 | Holder 7 | 14 | 15 |
| 51 | 09-004-048 | 2.5 | 42 | Holder 66 | Holder 8 | 18 | 24 |
| 52 | 09-004-049 | 3 | 52 | Holder 84 | Holder 9.4 | 14 | 18 |
| 53 | 09-004-050 | 4 | 60 | Holder 90 | Holder 9 | 18 | 22 |
