Factory Sale Low Price Tissue Paper Production Line Toilet Paper Making Machine

Product Description

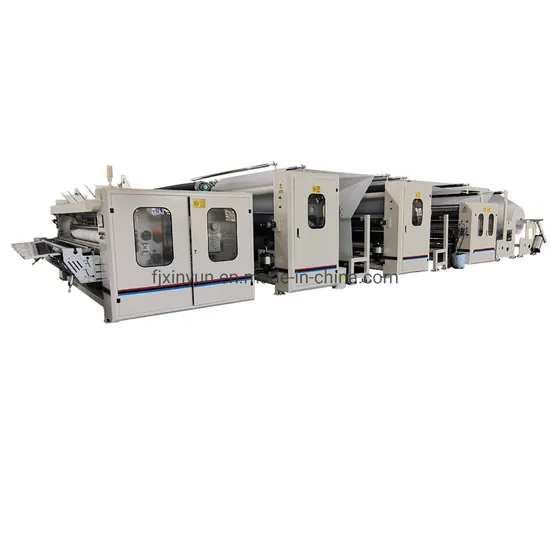

XY-TQ-A-G Factory sale low price tissue paper production line toilet paper making machine
This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It's best choice for the producing hygienic paper products. Video Link:https://youtu.be/mi5Jdn2e6PE XY-TQ-B Full Automatic Toilet Paper Rewinding Machine Automatic toilet paper rewinding machine is for toilet paper roll processing. Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements. The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading. Video Link: https://youtu.be/vTzpTZxYY8Y

Model	XY-TQ-B Automatic rewinding toilet roll paper making machine
Jumbo Roll Max Width	2800mm (Other size can be specified)
Jumbo Roll Diameter	Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter	3inches(76.2mm) (Other size can be specified)
Perforation Distance	4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter	Φ90~φ280mm
Finished Product Core Diameter	φ38~φ76mm
Program Controller	PLC( INVT)
Unwind Stands	2 Stands(Need to be specified)
Production Speed	0~230m/min
Pneumatic System	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Edge-Line Embossing	Steel to steel (Pneumatic Control)
Full Embossment	Steel to rubber.

XY-AI-400 Toilet paper band saw cutting machine Technical performance characteristic: The equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state. This band saw is good for new paper factory to cut toilet paper roll and kitchen towel. Feature and function: 1,When the paper cannot be cut down, the equipment will automatically stops and gives an alarm; 2,The high precision servo system is used in the feed motor servo system, to ensure the quality of the finished product; 3,The equipment automatically calculate the quantity of the finished product being cut; according to the raw material and the length of the finished product; 4,When data input is incorrect, the equipment breaks off and prompts to adjust on the interface; 5,The waste paper head and paper end can be automatically sorted; 6,The automatic sharpening knife system is used in the equipment, can adjust the sharpening knife system according the requirement of paper being cut, which increase the cutting life; 7,The sharp steel wheel is used in the sharpening knife system, which increase the sharpening knife efficiency Video Link:https://youtu.be/dy0jFcvNV5s

Model	XY-AI-400 Toilet paper band saw cutting machine
Cutting speed	80-120 cuts/min
Cutting blade	band saw blade(Size 3850*40*0.6)
Toilet log length	2200mm/2800mm(it can be made according to customer request)
Finished toilet roll length	<=300mm
Finished toilet roll diameter	80-130mm
Cutting tolerance	±1.5mm
Power supply	11Kw(380V 50Hz three phase)
Overall size	2800x1500x2100mm
Machine weight	1100KG

XY-AI-398A Semi Automatic Multiple Rolls Packing Machine
Functions and Features:
This machine work with toilet paper rewinding machine, it is customized, can special made to meet different market requirements.It's easy to operate: Insert the prefabricated bag into output hole, press the jog switch, it will automatically put rolls into bag, meanwhile cutting and sealing. Video Link:https://youtu.be/MMgv1zoox64

Speed	8-10 bags/min
Power	7.5 Kw(220V 50Hz single phase)
Air supply	0.4-0.5 MPA(supplied by client)
Roll size	Customized design according to your request
Packing way	Pack 4,6,8,10 rolls in a bag
Dimension	4550×1050×1750 mm

Related Products
XY-TQ-A-D
XY-TQ-A-H
Packing and Shipping
Workshop
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
After Sales Servies
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours.
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a USB dish of Operation Video with machine,it will help customer to work the machine easy. After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
