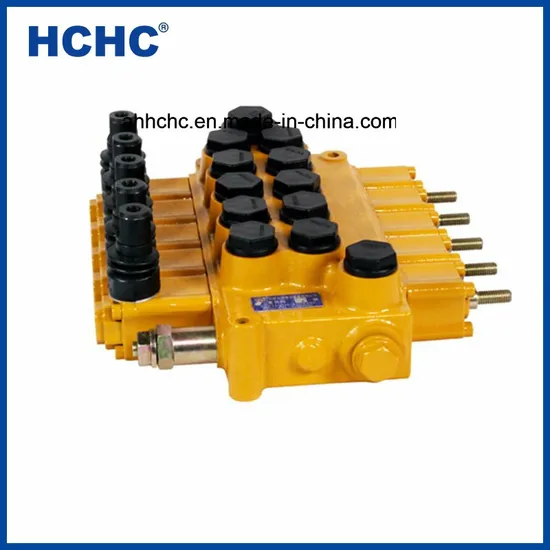

High Pressure Hydraulic Monoblock Valve Zda1-F15L for Excavator
| US$120.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZDa1-F15L-T/OOOOO
Standard
Standard
Connection Mode
Internal Thread
Power
Hydraulic
Material
Cast Iron
Type
Manual Type
Structure
Monoblock Valve
Nominal Pressure
200 Bar
Nominal Size
15 mm
Nominal Flow Rate
50 L/Min
Spool Number
2~6
Valve Shaft Stroke
5+5 mm
Weight
1.9+1.2n Kg
Warranty
1 Year
Certificate
ISO9001
Application
Forklift, Tractor, Crane, Construction Machinery
Transport Package
Packed in Exported Standard
Trademark
HCHC
Origin
Anhui, China
Production Capacity
5000 Sets Per Month
Packaging & Delivery
Package Size
50.00cm * 40.00cm * 30.00cm
Package Gross Weight
8.000kg
Product Description
Performance Characteristics:
ZDa*-F15L series is the monoblock multi-direction valve with middle/high pressure, which has parallel circuit. It is preset with pressure output port, installs thread-plug, the pressure port P1 can be used in tandem with other hydraulic components.
This valve is featured with compact structure, small volume, high pressure, advanced and reliable performance, easy to use and maintain, widely applied to small type engineering machinery , mining machinery, sanitation machinery and the hydraulic system of other machineries.
Internal check valve: Each valve section has an internal check valve to prevent the oil backflow.
Internal overflow valve: the inside of oil inlet section is equipped with a pilot-operated overflow valve to control the system pressure.
Oil circuit type: parallel type.
Structure type: monoblock valve, any 2~6 sections may combine upon customer's requirement.
Spool function at neutral position: A, O, Y, etc.
| Nominal Pressure (bar) | Nominal Size (mm) | Nominal Flow Rate (L/min) | Spool Number n | Valve Shaft Stroke (mm) | Weight (kg) |
| 200 | 15 | 50 | 2~6 | 5+5 | 1.9+1.2n |
