Gas Piston Motor Engine Generator 300kw 350kw 400kw 500kw Natural Gas Generator

Gas Piston Motor Engine Generator 300kw 350kw 400kw 500kw Natural Gas Generator

US$8,700.00 1 Set (MOQ)

Basic Info.

Model NO.
300kw - 500kw Natural Gas Generator
Output Type
AC Three Phase
Gas Source
Natural Gas
Certification
CE, TLC, ISO, CCC
Power
>200kW
Standard
Standard
Name
Turbine Gener Natural Gas Biogas Methane Generator
Fule
Natural Gas/Methane/Biogas
Voltage and Frequency
110-480V 50/60Hz
Genset Type
Internal Combustion Engine+Alternator
by Product
Hot Water/Steam
Cooling Mehtod
Water Forced Cooling
Option 1
Connect to City Grid
Option 2
Silent Canopy
Option 3
Parallel System
Transport Package
Plywood Case
Specification
CE ISO
Trademark
LVHUAN
Origin
Shandong China
HS Code
8502200090
Production Capacity
30 Sets/Month

Product Description

Core Features: Manufacturer supply since 2008
Power supply range:20kw - 500kw
Parallel system available for over 1 set generator
Standard component and assembly
Multi-option of control panel
With CE and ISO certificate
Natural gas generator specification:
Fuel: natural gas, CNG,LNG,methane,biogas.
Product Parameters
Model Number
LHNG300-500
Brand Name
Lvhuan
Rated Power
300-500 kw
Rated Speed
1000/1500rpm
Rated Frequency
50/60 Hz
Rated Voltage
400/230V
Phase
AC 3 phase 4 wire
Starting system
24V DC electric motor
Cooling method
water cooler
Lubricant method
pressure and splash
Isolation class
H
Protection
IP23
Power Factor
0.8 lagging
Exciting method
Brush less
Voltage Stability
≤±2%
Voltage Transient
≤±10%
Voltage Stable time
≤1 s
Engine Capacity
1.81-95L
Cylinder Number
2-16
Cylinder Diameter
100-190mm
Range
115-210mm
Heat consumption
≤9.8mj/kw.h
Oil consumption
≤1.63g/kw.

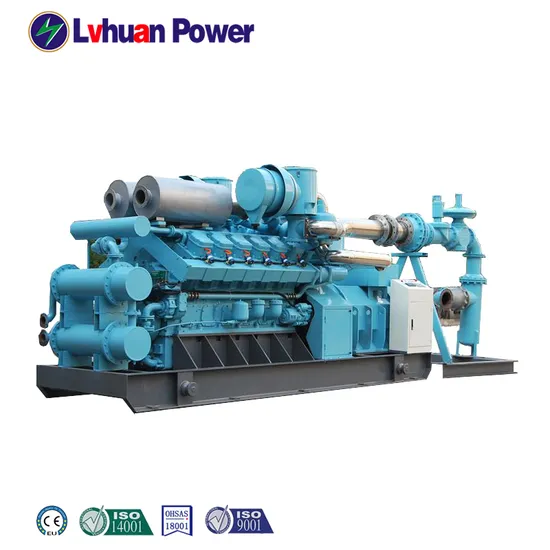

Generator Set photos:
Features: 1.Pure copper water tank for best cooling effect
2.Famous component brand to ensure overall quality
3.Expansion fitting combined with shrinking fitting give high tightness to the system
4.Safety guarantee form electromagnetic valve as well as back-fire relief valve
5.Residual heat CHP recycle system available for choice.
Supply details Ignition system:We adopt ignition system of magneto which produced by American ALTRONIC company,including:magneto,high-tension coil,sparking plug.
Starting system: DC24V electric motor,12v190 adopt ST710 of direct-current.
Pressure charging system:Pulse Mixed-flow supercharger, compression ration is 1:8,meet engine's requirement for gas-flow rate.
Speed regulating system: EGS gas controller of American WOODWARD Company.
Visitors form oversea:

FAQ 1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0g of lubricant oil consumption per hour.
1.0 Cubic meter gas can produce3.5-4.0kw/h power.
The capacity depends on gas energy.

3. What is the warranty? A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
4.. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Any questions, please contact me freely.
Notice:
Payment: TT/LC 30%+70%
Delivery date: 15-30 days
Shipment: LCL for 10-100kw
20GP for 120-200kw
40HQ FOR 250-1000KW
