Wuhan Manufacturer Hgtech Lf-3015e 500W Fiber Laser Cutting Machine for Stainless Steel, Carbon Steel, Aluminum, Copper

Wuhan Manufacturer Hgtech Lf-3015e 500W Fiber Laser Cutting Machine for Stainless Steel, Carbon Steel, Aluminum, Copper

US$38,000.00
1-4 Pieces
US$29,800.00
5-9 Pieces
US$19,800.00
10-999 Pieces
US$12,800.00
1,000+ Pieces

Basic Info.

Model NO.
GF3015
Technical Class
Pulse Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Ipg or Raycus
Laser Technology
Laser Control Fault Cutting
Cutting Area (Lxw)
3000mmx1500mm
Laser Source
Hgtech-Raycus
Laser Type & Powert
Fiber & 1000/1500/2000/3000
Display
19′industry LCD
Max Moving Speed
80m/Min, Acceleration Is 0.8g
Position Accuracy ( X and Y Axis)
±0.05mm
Reposition Accuracy ( X and Y Axis)
±0.03mm
Max Loading (Kg)
600kg
Appearance Size
4250mmx2430mmx1800mm
Transport Package
Wood
Specification
3000x1500
Trademark
HGTECH
Origin
Wuhan, Hubei. China
HS Code
8456100090
Production Capacity
5000sets/Year

Product Description

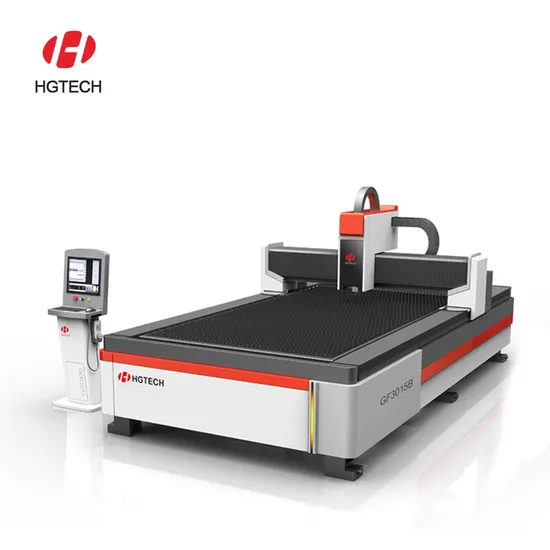

Product Show:
Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .
GF3015 Laser cutter is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Machine Model GF3015 GF4020 GF6020
Cutting Area (LXW) 3000mmX1500mm 4000mmX2000mm 6000mmX2000mm
Laser Source HGTECH-Raycus HGTECH-Raycus HGTECH-Raycus
Laser Type & Powert Fiber & 1000/1500/2000/3000 Fiber & 1000/1500/2000/3000 Fiber & 1000/1500/2000/3000
Laser Wavelength 1070nm±10nm 1070nm±10nm 1070nm±10nm
CNC System CYPCUT CYPCUT CYPCUT
Servo Motor YASKAWA (Japan) YASKAWA (Japan) YASKAWA (Japan)
Laser Cutting Head Raytools Raytools Raytools
Display 19'Industry LCD 19'Industry LCD 19'Industry LCD
Max Moving Speed 80m/min,Acceleration is 0.8G 80m/min,Acceleration is 0.8G 80m/min,Acceleration is 0.8G
Position Accuracy ( X and Y axis) ±0.05mm ±0.05mm ±0.05mm
Reposition Accuracy ( X and Y axis) ±0.03mm ±0.03mm ±0.03mm
Stroke X-axis 1530mm 2030mm 2030mm
Y-axis 3050mm 4050mm 6050mm
Z-axis 100mm 100mm 100mm
Motion X and Y axis Rack & Pinion Rack & Pinion Rack & Pinion
Structure Z-axis Ball Screw Ball Screw Ball Screw
Power Supplier Requirement 380V 50/60Hz 50A 380V 50/60Hz 50A 380V 50/60Hz 50A
Max Loading (KG) 600KG 1300KG 1900KG
Machine Weight ≤4000kg ≤5000kg ≤6000kg
Appearance Size 4250mmX2430mmX1800mm 5555mmX3050mmX1800mm 7850mmX3050mmX1800mm

Company Introduction:
Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988)
HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
Wuhan Huagong Laser Engineering Co.,Ltd possesses HGLASER and FARLEY?LASERLAB two famous brands. HGLASER has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field, researching, manufacturing and selling various laser processing and plasma machining equipments, providing tube laser cutting processing and oil pipeline trade services. The main products of HGLASER cover the full power series of laser cutting systems, laser welding systems, laser marking series, laser texturing equipments, laser heat treatment systems, laser drilling machines, laser devices, all kinds of support devices, laser processing and plasma machining equipments, which are used widely in metallurgy, non-ferrous metals, automobiles, parts, aviation, military, precision instruments, machine manufacturing, hardware, integrated circuits, semiconductor manufacturing, solar, education, communication and measurement, packaging, leathers, plastics, rubbers, jewelries, crafts, medical equipments, etc.
FAQ:
Q1 :How about warranty?
A1:3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2: I don't know which one is suitable for me ?
A2:Please tell me your
1) Max work size:We can do work size with 3000*1500mm-----4000mm*2200mm.
2) Materials and marking effect:we will check whether our machine is suitable for you or not and choose a most suitable power and optional parts.
Q3:Payment terms?
A3:TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don't know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.
2) If have any problem during use,you need our technician to judge
The problem elsewhere will be solved by us. We can provide team viewer
Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
