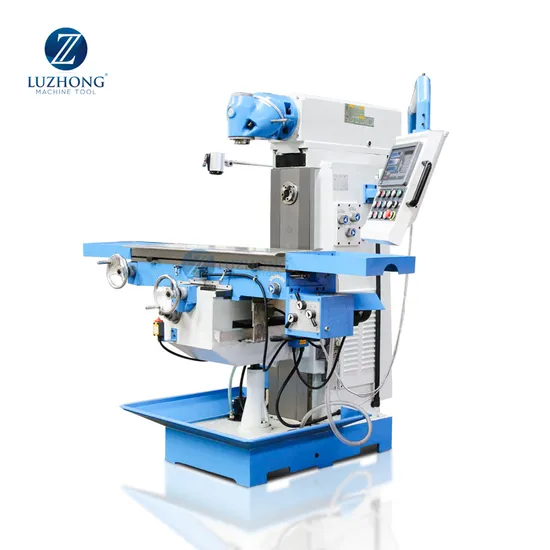

China Steel Milling Machine with Universial Rotary Swivel Head (X6432)

Product Description

X6432 Rotary Swivel Head China Steel Milling Machine Specifications Product Description
The main performance characteristics:
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness,strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable Product Parameters
Application:
Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools,that can lie milling and can vertical milling.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical parameters:

Specifications	Units	X6432
Table size	mm	1320x320
Table stroke	mm	1000x300(manual)
T-type slot numbers / width /space	mm	5-14-63
Spindle taper		ISO40
Distance from spindle axis to table surface	mm	220-670
Distance from spindle axis and column	mm	100-600
Spindle speed range(steps)	rpm	45-1660(V)40-1300(H)
Table power feed speed range	mm/min	22-420(X) 22-393(Y) 10-168(Z)
Swivel angle of table		-
Milling head swivel range	°	360
Spindle motor power	KW	3(V/H)
Overall dimensions	mm	2020x1710x1994
Machine weight	Kg	2100
